6|8|12 Cores G.652.D Fibers

6|8|12 Cores G.652.D Fibers All-dielectric self-supporting (ADSS) cable optical fiber cable Single Jacket PE sheath Max Span: 50-200m Max applied voltage: 110kv Weather conditions: 25m/s wind speed + 0mm Ice Load

  • ADSS-6|8|12 Cores Single Jacket

  • OEM

  • ADSS

  • 1 Tube Single Jacket

  • ISO9001

  • 3km/spool

  • Wooden Spool ，Φ1100*750mm

  • 100km

  • 5-25 Days

  • NINGBO CHINA

  • 30%TT as deposit,70%Balance before shipping.

Availability:
Inquire Add to Basket

Product Description

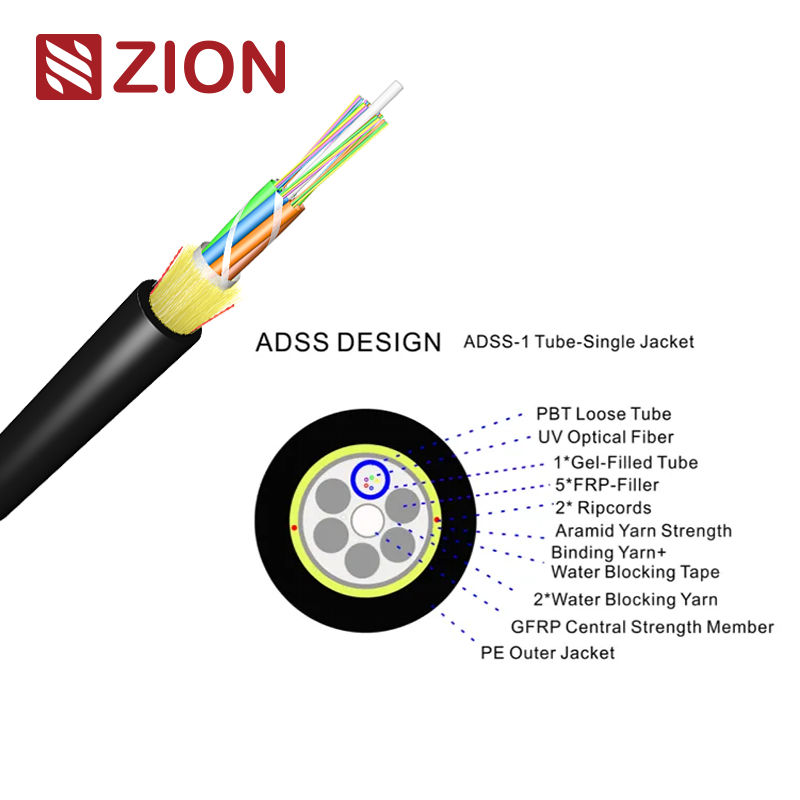

6|8|12 Cores G.652.D Fibers
All-dielectric self-supporting (ADSS) cable optical fiber cable
single Jacket PE sheath
Max Span: 50-200m
Max applied voltage: 110kv
Weather conditions: 25m/s wind speed + 0mm Ice Load

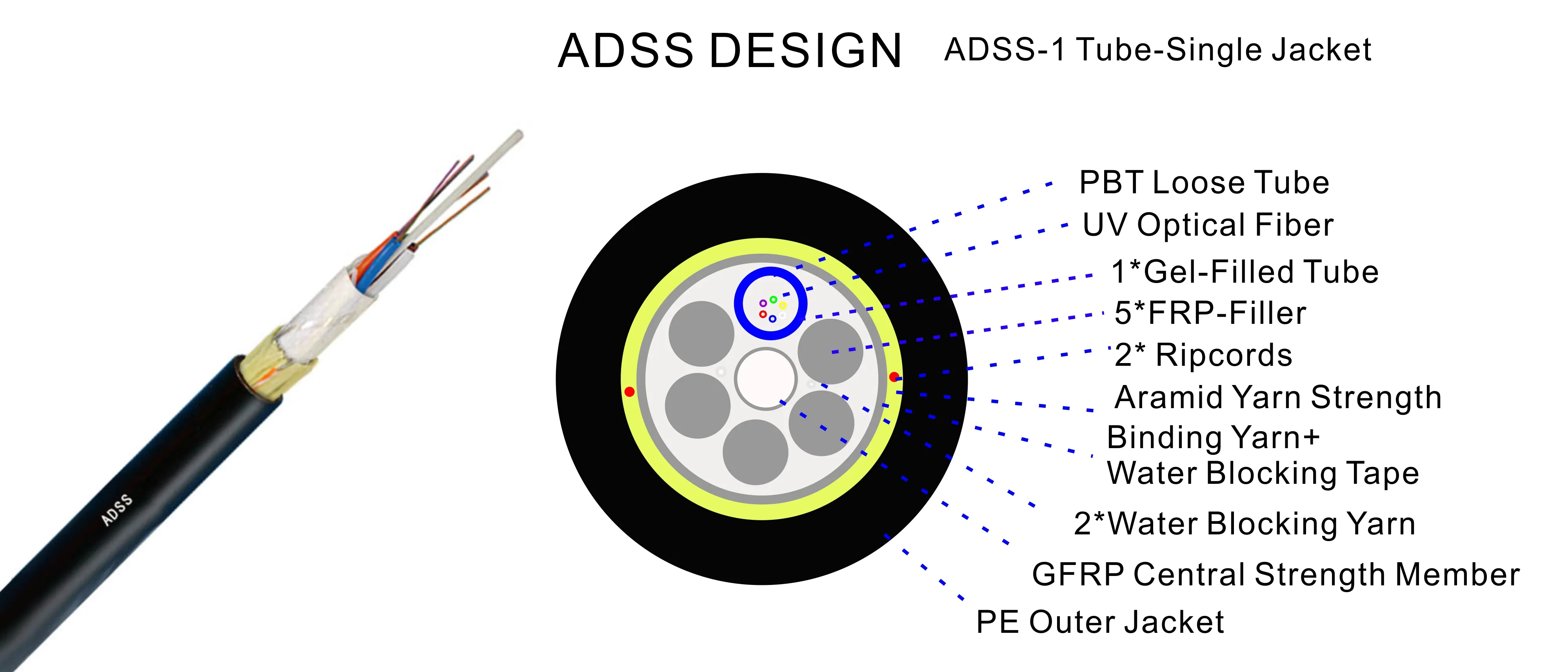

ADSS-1Tube(6+1)

Characteristics

Item Description
Fiber Optic UV fiber G.652.D;@1310nm ≤0.35dB/km;
@1550nm ≤0.2dB/km;
Tube filling compound Water Blocking & Moisture Proof Thyrotrophic gel
Loose tube 1.8-2.0 mm PBT
Filler FRP 1.8 mm LDPE / PP
Center strength member 1.8 mm GFRP
Water blocking tape 0.28mm thickness
Binder 2 wires Polyester Yarns
Ripcords 2 wires
Dielectric Strength Members Aramid Yarns KEVLAR  K49-3000D
Outer Jacket 1.6-2.0mm thickness HDPE /MDPE
Cable Out Diameter 9.2±0.5mm
Cable Weight 70±5kg
Length Cable/Spool 3km or 4km (2% tolerance in more)
Temperature range -20~+65℃

Standards

ITU-T Rec. G.652.D             IEC 60794
GR-409                                 IEEE1222-2004
ICEA-596                              YD/T 1997-2009

Colors -12 Chromatography
