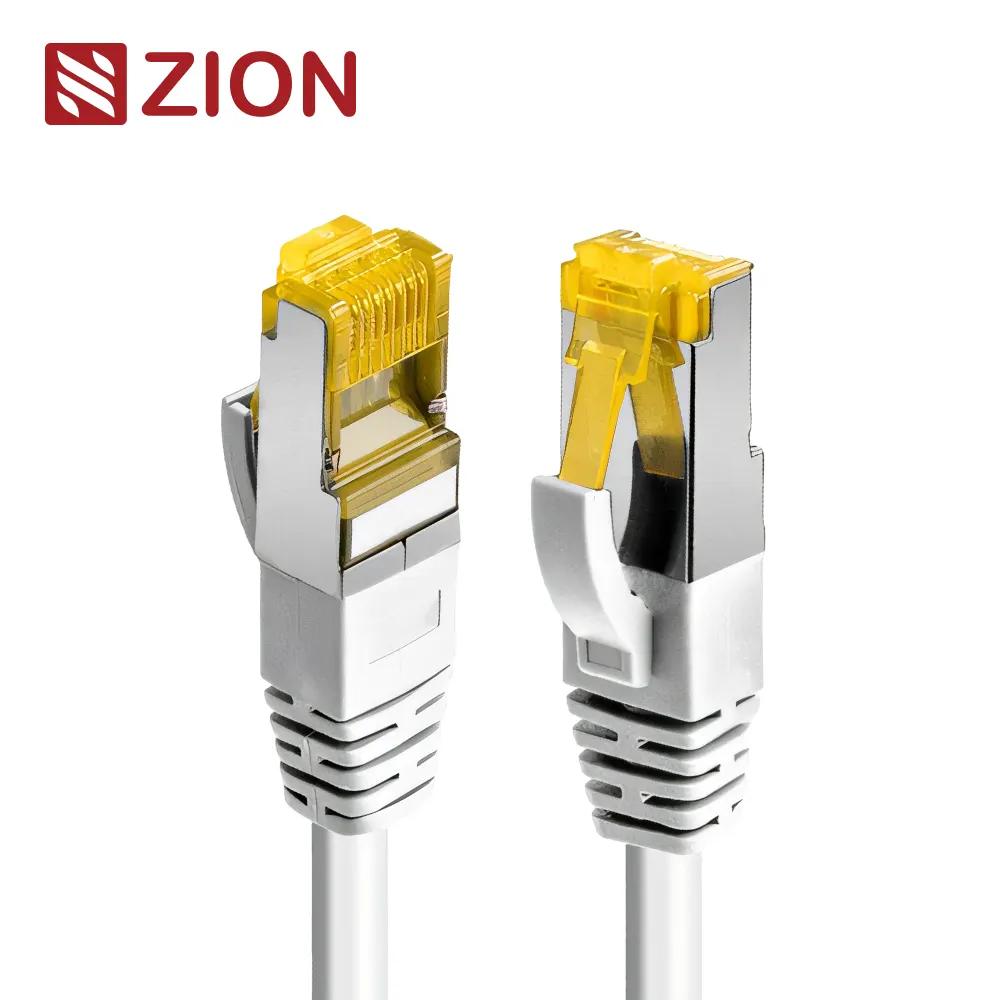

What Is a CAT6A S/FTP RJ45 Patch Cord?
The 7241011 CAT6A S/FTP patch cord provides shielded RJ45 connections between patch panels, switches, servers, routers and compatible network equipment. Its shielded construction is intended for installations where electromagnetic-noise control and shield continuity are part of the channel design.
The cord is specified for 500 MHz and 10GBASE-T operation, with production testing on a CAT6A channel up to 600 MHz. The 28 AWG stranded-copper design supports flexible cabinet routing in data centers and mission-critical network environments.
Connector and Cable Construction
Polycarbonate RJ45 plugs use nickel-plated copper-alloy shielding for a shielded equipment interface.
Phosphor-bronze blades use 50 microinch gold over nickel plating at the front connection.
The protective boot helps guard the latch and reduce bending stress during patching and maintenance.
Key Benefits
Designed for CAT6A channels operating at 500 MHz and 10GBASE-T network connections.
S/FTP construction supports noise-control strategies when installed in a properly bonded shielded system.
Stranded copper conductors support routine cabinet patching and high-density cable routing.
The snagless boot reduces latch damage during moves, additions and maintenance.
Listed order codes cover common rack and equipment-room lengths from 0.5 to 20 m.
Color, length, cable printing, logos, labels, packing and strain relief can be discussed for volume orders.
Applications
- Patch-panel to switch links in shielded CAT6A cabinets.
- Server and switch interconnection in data centers.
- Enterprise equipment rooms and mission-critical networks.
- 10GBASE-T routers, switches, servers and compatible appliances.
- HDBaseT, ATM, CATV and IP-device links where the complete system design is compatible.
Length and Product-Code Options
Selection Guide
Use shielded jacks, patch panels and equipment interfaces when shield continuity is required.
Choose the shortest practical finished length that supports bend radius, routing and service loops.
Specify LSZH or other required material, cable color, labeling and local fire-performance requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product | CAT6A S/FTP RJ45 patch cord |
| SKU | 7241011 |
| Maximum operating frequency | 500 MHz |
| Production test reference | CAT6A channel testing up to 600 MHz using FLUKE DSX-8000 |
| Network application | 10GBASE-T up to 20 m |
| Shielding type | S/FTP |
| Plug connector | Shielded RJ45 to shielded RJ45 |
| Plug material | Polycarbonate |
| Boot | LSZH or PVC, snagless |
| Front connection | Phosphor bronze blades with 50 microinch gold over nickel plating |
| Connector shielding | Nickel-plated copper alloy |
| Mating durability | 750 cycles minimum |
| Conductor | 28 AWG, 7/0.127 mm stranded copper |
| Cable diameter | 6.0 ± 0.2 mm |
| Reference standards | ANSI/TIA/EIA-568.2-D, ISO/IEC 11801, IEEE, CENELEC EN 50173 and ISO/IEC TR 11801-99-1 |
Ordering Information
| ZION Code | Length | Standard Configuration |
|---|---|---|
| SF6A3CO05MGR | 0.5 m | CAT6A S/FTP, 28 AWG copper, LSZH, gray |
| SF6A3CO1MGR | 1 m | CAT6A S/FTP, 28 AWG copper, LSZH, gray |
| SF6A3CO2MGR | 2 m | CAT6A S/FTP, 28 AWG copper, LSZH, gray |
| SF6A3CO3MGR | 3 m | CAT6A S/FTP, 28 AWG copper, LSZH, gray |
| SF6A3CO5MGR | 5 m | CAT6A S/FTP, 28 AWG copper, LSZH, gray |
| SF6A3CO7AMGR | 7 m | CAT6A S/FTP, 28 AWG copper, LSZH, gray |
| SF6A3CO10MGR | 10 m | CAT6A S/FTP, 28 AWG copper, LSZH, gray |
| SF6A3CO15MGR | 15 m | CAT6A S/FTP, 28 AWG copper, LSZH, gray |
| SF6A3CO20MGR | 20 m | CAT6A S/FTP, 28 AWG copper, LSZH, gray |
Customization and Project Supply
Project orders can be discussed with customized plug or boot logos, cable printing, cable colors, finished lengths, labels, PE bags, cartons, molding and strain-relief options. Confirm sample approval, artwork, testing and packing requirements before production.
RFQ Checklist
Need a configuration check?
Send ZION the application, shielded channel design, length, jacket, color and quantity for review.
FAQ
What does S/FTP mean for this CAT6A patch cord?
S/FTP identifies a shielded construction with an overall braid and individually foil-shielded twisted pairs, intended for a properly bonded shielded copper channel.
What speed and frequency does model 7241011 support?
The CAT6A patch cord is specified for 500 MHz and 10GBASE-T applications. Production is tested on a CAT6A channel up to 600 MHz.
Which lengths are available?
Listed gray LSZH order codes cover 0.5, 1, 2, 3, 5, 7, 10, 15 and 20 m lengths.
What connector materials are used?
The patch cord uses polycarbonate RJ45 plugs, nickel-plated copper-alloy shielding and phosphor-bronze contact blades with 50 microinch gold over nickel plating.
Can the color, length, logo and packing be customized?
Project and OEM orders can discuss custom lengths, colors, plug or boot logos, cable printing, labels, PE bags, cartons and strain-relief molding.
