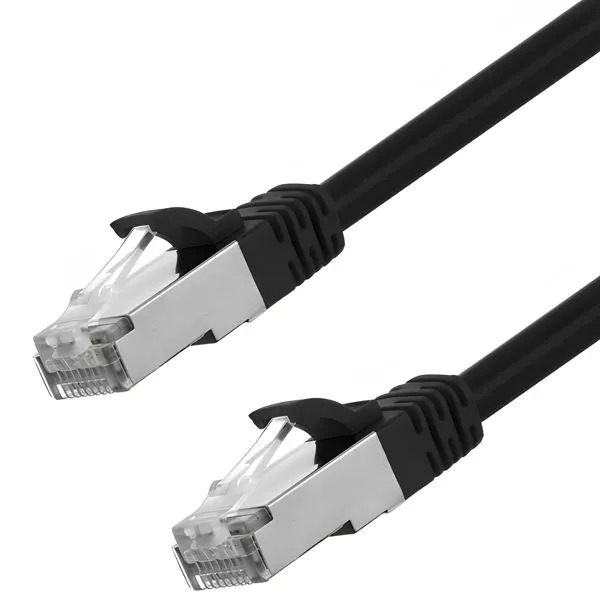

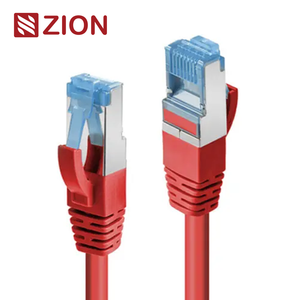

S/FTP CAT6A SOD PE RJ45 Patch Cord

7241012  S/FTP CAT6A SOD PE RJ45 Patch Cord

■ Application:

Category 6A cabling systems is playing a major role in data centers and
mission-critical environments upgrading to 10GBASE-T.

ZION Communication CAT6A S/FTP Patch Cords conforms to ANSI/TIA/EIA-568.2-D, ISO/IEC 11801, IEEE and CENELEC EN50173 for Category 6A. The patch cords are 100% (FLUKE DSX 8000) tested per Cat.6A Channel up to 500 MHz. Designed for high speed protocols such as IEEE 802.3:10Base-T, 100Base-T, 1000Base-T, 10GBase-T,  HDBase-T A & B and ATM, CATV,computer,hubs,switches,
routers,DSL/cable modems and patch panel in Gigabit datacenter.

■ Specification:

S/FTP CAT 6A RJ45 Patch Cord – Product Overview

Conductor:

· Material: Solid bare copper

· Diameter: 0.55±0.005 mm per conductor, providing solid, reliable connections for high-speed networks.

· Pairs: 4 pairs (standard for Ethernet cabling).

Insulation:

· Material: Skin-Foam-Skin PE (Polyethylene) for each pair, offering good dielectric properties and reducing interference.

Cable Specifications:

· Cable Diameter: 1.35±0.02 mm, designed to ensure flexibility and durability.

· Shielding:

o Individual Shield: Each pair is shielded with Al/PET foil, with the aluminum layer facing outward and providing 125% coverage for maximum protection against electromagnetic interference (EMI).

o Overall Shielding: 16×5×0.12 mm Al_Mg braiding, with more than 50% coverage for additional protection.

Outer Jacket:

· Material: 7.6±0.5 mm LDPE (Low-Density Polyethylene) for the outer sheath, providing flexibility and impact resistance.

Electrical Specifications:

· Frequency Range: 1 - 500 MHz, supporting high-speed data transmission.

· Impedance: 100Ω, ensuring optimal signal integrity for networking.

· Max Resistance Unbalance: 2% for improved uniformity across pairs.

· Current Rating: 1.5A, suitable for most Ethernet and power-over-Ethernet (PoE) applications.

· Voltage: 36 VAC / 56 VDC, making it safe for most commercial and residential networking environments.

Operating Temperature:

· Min: -20°C

· Max: +60°C, allowing the cable to operate effectively in a variety of environments.

Connector Specifications:

Connector Type:

· Plug: RJ45, compatible with standard networking hardware and devices.

Materials:

· Housing: Polycarbonate, ensuring durability and impact resistance.

· Boot: LDPE (Low-Density Polyethylene), providing strain relief and preventing wear on the cable.

Electrical Contacts:

· Front Connection: Phosphor Bronze contacts with 50μ inch gold over nickel plating for reliable, corrosion-resistant connections.

· Blades: Copper Alloy, Nickel-plated, ensuring excellent conductivity and protection against EMI.

Durability:

· Mating Cycles: Rated for 750 mating cycles minimum, ensuring long-lasting and reliable performance.

■ Characteristics:

S/FTP CAT 6A RJ45 Patch Cord – Product Overview

Key Specifications:

· Version: Cat 6A

· Class: G (I)

· Max Operating Frequency: 500 MHz

· Shielding Type: S/FTP (Shielded Foiled Twisted Pair)

· Plug Connector: RJ45

· Used For:

o 10GBase-T (up to 20 meters)

o Faster server interconnection

o Connections in data centers

Compliance:

· Standard: ISO/IEC TR 11801-99-1

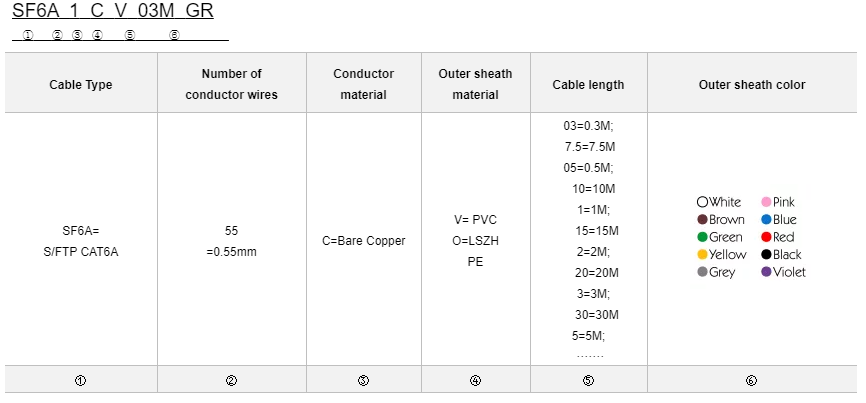

■ Product Code:

■ Ordering Information

CAT 6A S/FTP 23AWG Copper PE  RJ45 Patch Cord

Conductor: 0.55mm Copper;  Cable OD:7.6±0.2mm; Pass Fluke test Max Length: up to 90meter.

Zion Code：SFA55CPE90B

Description：CAT 6A S/FTP 0.55 SOL BC CAT6A RJ45 Patch Cord,PE,Blaco, 90m

■ OEM/ODM service for you

ZION Communication has rich expiriences in producing OEM/ODM cases becaused of Profession R & D team.

• Customized Logo on Plug & Boot

• Printing on Cable

• Label/PE bag/Carton design

• Different Color & Different Lengths Available

• Different Molding/Strain Relief
