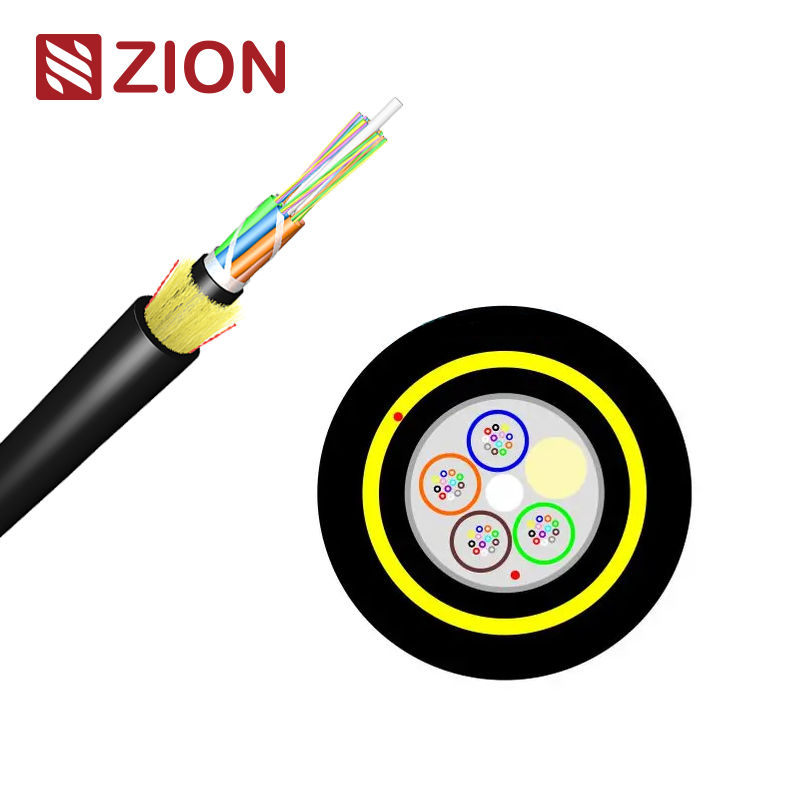

ADSS Double Sheath

ADSS

All Dielectric Self-supporting Aerial Cable

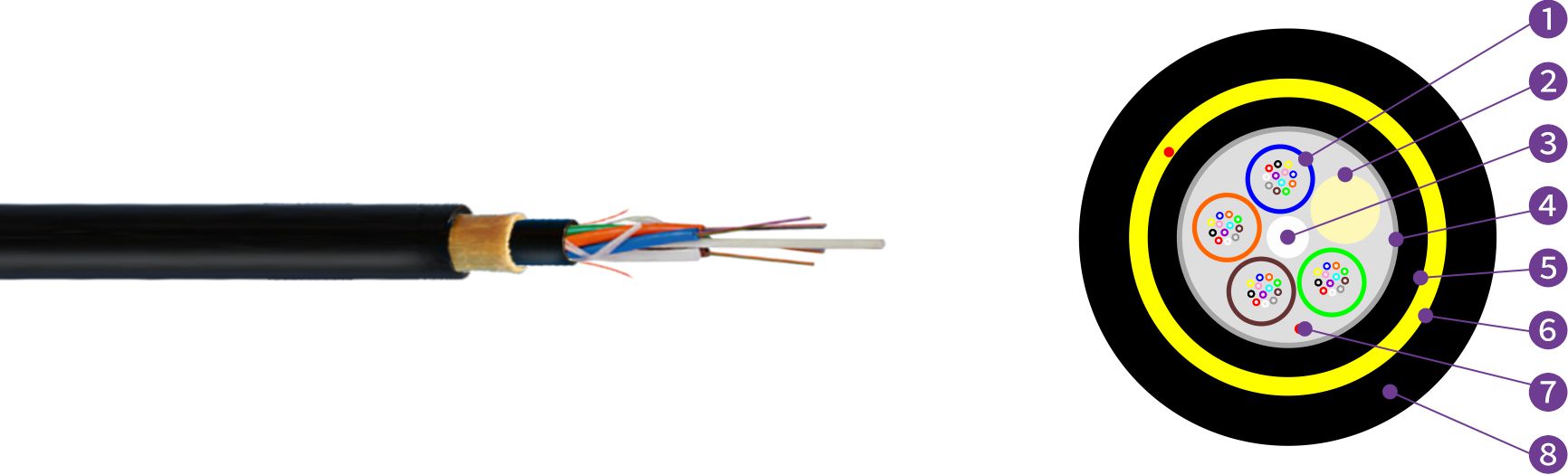

1. Loose Tube: thermoplastic material, containing optical fibres and filled with gel.

2. Filler Elements: thermoplastic rods.

3. Central Strength Member(CSM): glass fiber reinforced plasticrod (GFRP), coated with polyethylene when needed.

4. Longitudinal Water Blocking Material: Water blocking tape.

5. Inner Sheath: black polyethylene.


6. Peripheral Strength Member: aramid yarn.

7. Ripcord

8. Outer Sheath: black polyethylene.

Features and Applications

• High tensile strength

• All dielectric structure and semi-dry core design

• Small diameter and light weight

• Self-supporting aerial installation

Optical Characteristics

Technical Data

• Other structures and fiber count are also available according to customer requirements.

• Cable diameter and weight in this table is typical value, which will fluctuate according to different designs

• The span needs to be recalculated due to other climate conditions according to the installation area.

ITU-T Rec. G.652.D             IEC 60794
GR-409                                 IEEE1222-2004
ICEA-596                              YD/T 1997-2009
