CAT6 UTP Short 2PCS RJ45 Connector

  • Cat6 UTP RJ45 connector

  • HELLOSIGNAL

  • 7024010

  • Connector

  • Normally 25 working days

  • NINGBO, SHANGHAI

  • T/T, L/C at sight, D/P at sight

Availability:

Product Description


7024010  |  ZC-MP6-88URS2P

Modular Plug , 8P/8C, 2 PCS,CAT6,unshielded, round,
8-position, Short crystal head,100/bag

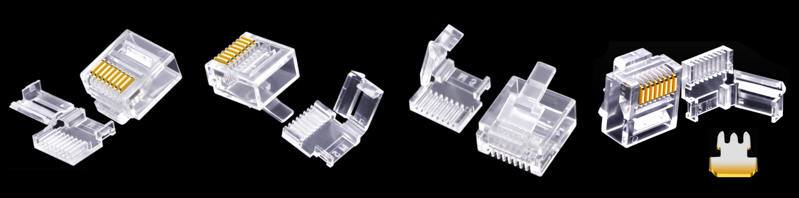

Physical photo


CAT6 UTP Short 2PCS RJ45 Connector Physical photo

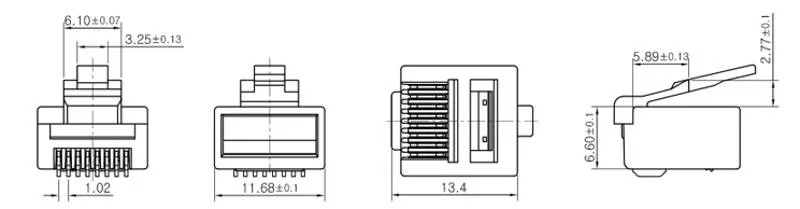

Dimensional Structure

CAT6 UTP Short 2PCS RJ45 Connector Dimensional Structure


Electrical Specifications

ANSI/TIA Category

5

Current Rating,maximum

0.75 A

Insulation Resistance,minimum

500 mOhm

Safety Voltage Rating

150 Vac

Pass fluke test

Compliant


General Specifications

Cable Type

Round,2PCS,unshielded

Interface

RJ45

Application


Operating Temperature

-40 to +85

Relative Humidity

Up to 93%, non-condensing

Package Quantity

100

Packaging Type

Bag  |  Box  |  Carton

Positions/loaded Contacts

8P/8C


Mechanical Specifications

Conductor Gauge

Solid/Stranded  26-23 AWG

Contact Base Material

Phosphor bronze

Contact Plating Material

Gold

Contact Plating Thickness

50μ  OR  30μ | 6μ

Material Type

PC = Polycarbonate

Plug Insertion Life,minimum

750 times







Regulatory Compliance/Certifications

RoHS 2011/65/EU

Compliant


Order Informations

Label

Can be customized

Delivery time

Normally 15 working days

Brand

Hellosignal ®

OEM

Yes
