What Is a CAT6A UTP Field Termination Plug?

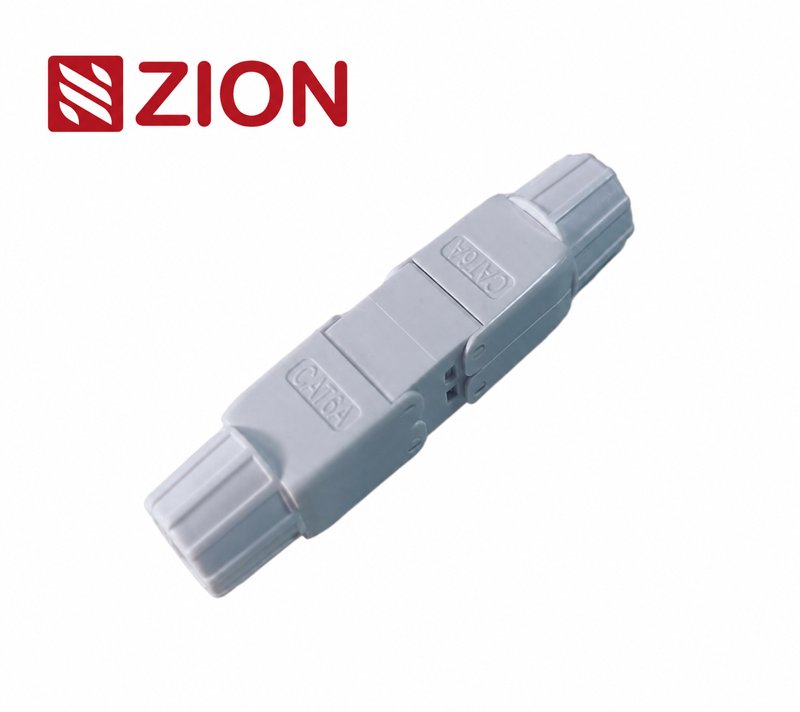

ZC-603SU-C6A is a CAT6A UTP field termination plug for field assembly on unshielded twisted-pair cable. It provides an RJ45 equipment connection at the end of a fixed cable run when an intermediate outlet or factory-molded patch cord is not appropriate.
This CAT6A UTP toolless RJ45 plug combines a new-PC housing, guided conductor manager, phosphor-bronze contacts with 3 microinch gold plating, and phosphor-bronze terminal pins with zinc plating. The closure design seats prepared conductors without a dedicated punch-down tool.
Key Benefits
No dedicated punch-down tool is required to seat the prepared conductors.
Specified for solid and stranded 22 AWG, 23 AWG, and 24 AWG cable.
Designed for U/UTP cabling where shield continuity is not required.
The internal insert organizes conductor order before the final closure.
Rated for at least 750 RJ45 mating cycles and 250 IDC termination cycles.
Specified as compliant with RoHS and REACH requirements.
Toolless Termination Workflow
Follow the project wiring scheme and the cable manufacturer’s preparation requirements. Keep pair untwist controlled and trim conductor ends cleanly before closing the connector.
Strip approximately 20 mm of the outer jacket without damaging conductor insulation.
Arrange conductors in the wire manager according to the selected T568 scheme.
Cut conductor ends flush and seat the loaded manager in the plug body.
Press both housing sides until the termination is fully seated and secured.
Applications
The connector is intended for direct-to-device CAT6A links and modular plug terminated link installations completed on site. Typical applications include wireless access points, IP cameras, switches, controllers, surveillance systems, office networks, telecommunications rooms, and smart-building devices.
Use ZC-603SU-C6A with compatible unshielded cable. For links that require foil or braid continuity, select a shielded CAT6A field termination plug instead.
Technical Specifications
| Model | ZC-603SU-C6A |
|---|---|
| Product type | CAT6A UTP RJ45 field termination plug |
| Cabling type | U/UTP / Unshielded |
| Conductor type | Solid and stranded |
| Conductor size | 22 AWG / 23 AWG / 24 AWG |
| Housing material | New PC |
| RJ45 contacts | Phosphor bronze with 3 microinch gold plating |
| Terminal pins | Phosphor bronze with zinc plating |
| Contact resistance | 20 mΩ |
| Withstand voltage | DC 1000 V / AC 700 V RMS, 60 Hz for 1 minute |
| Performance reference | CAT6A permanent link, ANSI/TIA/EIA-568-B.2-10 |
| RJ45 contact life | 750 mating cycles minimum |
| IDC terminal life | 250 termination cycles minimum |
| Operating temperature | -10°C to +60°C |
| Storage temperature | -40°C to +70°C |
| Compliance | RoHS and REACH |
Cable Compatibility Checklist
Confirm the project cable is U/UTP and does not require shield bonding.
Confirm solid or stranded copper and the conductor gauge.
Provide the finished diameter of each insulated conductor.
Check housing closure and strain-relief fit.
RFQ Checklist
Include the following information so the connector can be checked against the project cable and installation conditions:
- Model ZC-603SU-C6A and required quantity.
- Cable category, conductor type, and conductor gauge.
- Insulated conductor diameter and overall cable diameter.
- Application environment and connected equipment.
- Packaging, labeling, compliance documents, samples, and target delivery window.
Frequently Asked Questions
What conductor sizes does ZC-603SU-C6A support?
It supports 22 AWG, 23 AWG, and 24 AWG solid or stranded conductors. Insulation diameter and overall cable diameter should also be confirmed before ordering.
Does a toolless RJ45 plug require no tools at all?
Toolless means no dedicated punch-down tool is required. Cable stripping and conductor trimming tools are still needed for preparation.
Is ZC-603SU-C6A intended for shielded cable?
No. ZC-603SU-C6A is the unshielded U/UTP version. Select a shielded field termination plug when shield continuity is required.
What is a CAT6A UTP field termination plug used for?
It is used for field-assembled direct-to-device and modular plug terminated links, including wireless access points, IP cameras, switches, and controllers.
What information should be included in an RFQ?
Provide model ZC-603SU-C6A, quantity, conductor type and gauge, insulation diameter, overall cable diameter, application environment, packaging requirements, and delivery window.
Confirm Cable Fit and Project Quantity
Send the cable construction, conductor dimensions, application environment, quantity, packaging requirements, and requested delivery window.
Send Your RFQ
