1. What Does the Splitter Do?

A passive optical splitter divides downstream optical power among multiple branches and combines upstream transmission toward the OLT. It requires no electrical power, but it introduces insertion loss and creates a shared optical service group.

The TIA telecommunications dictionary defines a passive optical network as a point-to-multipoint fiber network using a passive optical splitter as the branching or interconnection device.

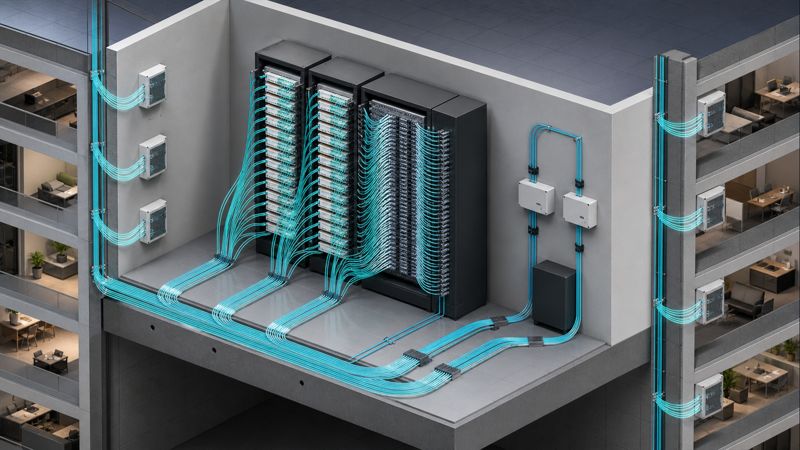

2. Centralized Splitting

In a centralized architecture, the complete split ratio is placed in one controlled location, such as:

• Main equipment room
• Main distribution facility
• Central fiber distribution cabinet
• Secured regional equipment room

Advantages

• Easier port administration
• Fewer splitter locations to inspect
• Simpler replacement and sparing
• Clearer end-to-end loss calculation
• Better OLT-port utilization when users move between zones
• Easier access for testing

Trade-offs

• Higher distribution-fiber counts from the splitter location
• Larger pathways or higher-density cable designs
• More fiber ports in the central frame
• Longer individual fiber paths
• Potentially larger central failure domain

Centralized splitting is often attractive when the building has usable backbone pathways and operations teams prefer all optical administration in one room.

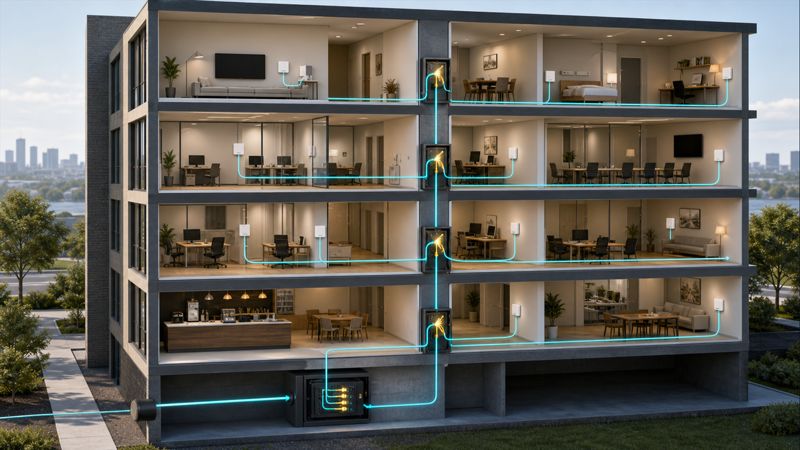

3. Distributed Splitting

Distributed splitting places complete splitters closer to endpoint zones, such as on floors, in building distribution rooms or inside secure zone enclosures.

Advantages

• Lower feeder-fiber count to each zone
• Potentially smaller backbone cables
• Clear physical grouping by floor, department or building
• Convenient alignment with phased construction

Trade-offs

• More splitter locations to secure and document
• More distributed restoration stock or service access
• Capacity can become stranded in underused zones
• Testing and troubleshooting require accurate topology records
• Environmental conditions vary by location

Distributed splitting works best when splitter locations remain accessible and controlled, not concealed above ceilings without reliable records.

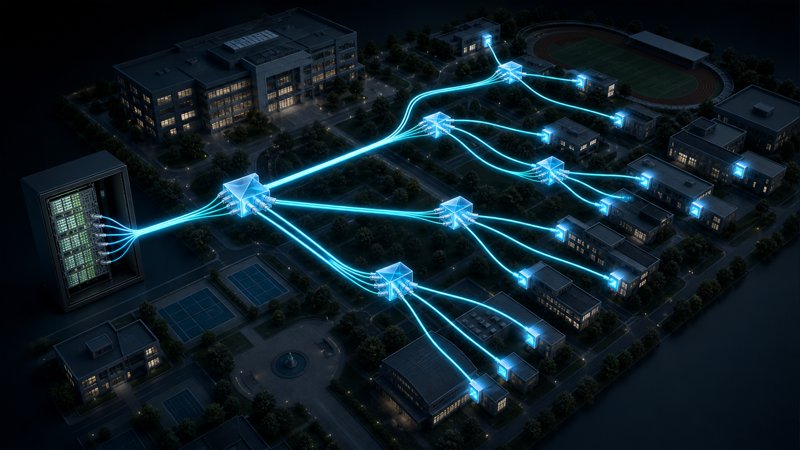

4. Cascaded Splitting

Cascaded splitting uses two or more stages. For example, a first-stage splitter may divide service among buildings, while second-stage splitters serve floors or departments.

This can align the topology with a campus or phased occupancy, but it adds:

• Cumulative splitter loss
• More connections or splices
• More enclosure space
• More possible fault locations
• More complex port mapping

The APOLAN technical specification notes that split ratios are determined by design and that splitter locations and spare fiber need deliberate treatment. Every cascaded path should have its own loss calculation.

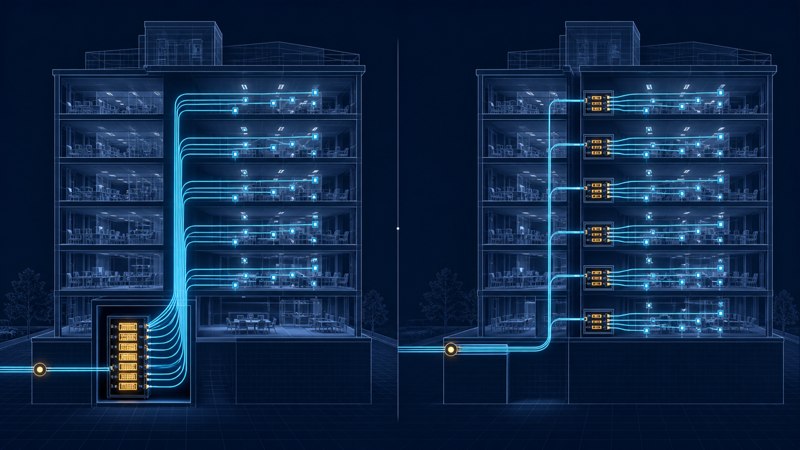

5. Compare the Architectures

6. Size Splitters Around Real Demand

Do not size the network only for total endpoint count. Record demand by:

• Building
• Floor
• Department or tenant
• Criticality
• Service type
• Opening phase
• Growth forecast
• Spare ONT requirement

A hotel may have stable room counts, while an office campus may experience frequent moves. A hospital may require smaller fault domains for critical departments. The topology should follow operational behavior.

7. Protect the Optical Budget

Every splitter stage must use the approved maximum insertion loss. Add all connector, splice and cable losses around it.

If a centralized 1×32 path fits comfortably but a cascaded 1×4 plus 1×8 path approaches the platform limit, do not assume the equivalent branch count makes them optically interchangeable.

Also reserve margin for:

• Repair splices
• Additional patch connections
• Coexistence elements
• Connector aging and contamination control
• Measurement uncertainty

8. Control Failure Domains

One splitter group shares an OLT port and feeder path. During design, ask:

• How many users lose service if this feeder is cut?
• How many rooms or devices depend on one splitter?
• Is the splitter accessible during an outage?
• Is a spare splitter available in the same package?
• Can critical services use a separate PON port or route?
• Does the design require dual-input or diverse-feeder options?

Reducing fiber count should not unintentionally create an unacceptable outage group.

9. Choose the Splitter Package

Topology and packaging are connected.

• LGX or modular cassette: useful for centralized, connectorized administration
• Rack module: high-density central location
• Tray-mounted splitter: suitable for splice-based distribution
• ABS box: compact, protected package for cabinets or enclosures
• Bare or blockless splitter: space-efficient but dependent on a suitable host tray

Specify pigtail length, connector end face, output identification, bend control and mounting compatibility. “1×16 PLC splitter” is not a complete procurement description.

10. Plan for Moves and Growth

Centralized designs can allocate unused splitter outputs across a broad served area if enough distribution fibers exist. Distributed designs may require new splitter modules or feeder capacity when one zone grows faster than another.

Use:

• Spare feeder fibers
• Spare splitter ports
• Space for additional modules
• Reserved ODF capacity
• Consistent port labeling
• Documented phase boundaries

Do not install the maximum split ratio everywhere on day one if occupancy is uncertain. Modular deployment may preserve optical performance and capital flexibility.

11. Procurement Questions

Before ordering splitters, confirm:

• Architecture drawing and splitter locations
• Single-stage or cascaded topology
• Split ratios by stage
• Connectorized or splice-in design
• Package and host enclosure
• Input/output connector type
• Maximum insertion loss
• Operating temperature
• Port labeling sequence
• Factory test-report format
• Spare ratio and replacement lead time

ZION's ODN solution page positions PLC splitters together with cabinets, terminal products and cabling. This system-level packaging is more useful than treating the splitter as an isolated SKU.

Conclusion

Centralized splitting favors pooled capacity, administration and simpler maintenance. Distributed splitting can reduce feeder fiber counts and align with physical zones. Cascaded splitting can support campuses and phased builds but increases loss and documentation complexity.

The correct decision balances optical budget, pathways, fault domains, occupancy and operations—not just the price of fiber versus splitters.
