FR331-OS
Zion communication
Fire Cable
UL, ETL, CE,CPR, RoHS
100m,500m,500ft,1000ft
roll, wooden spool, carton, pallet
10KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight

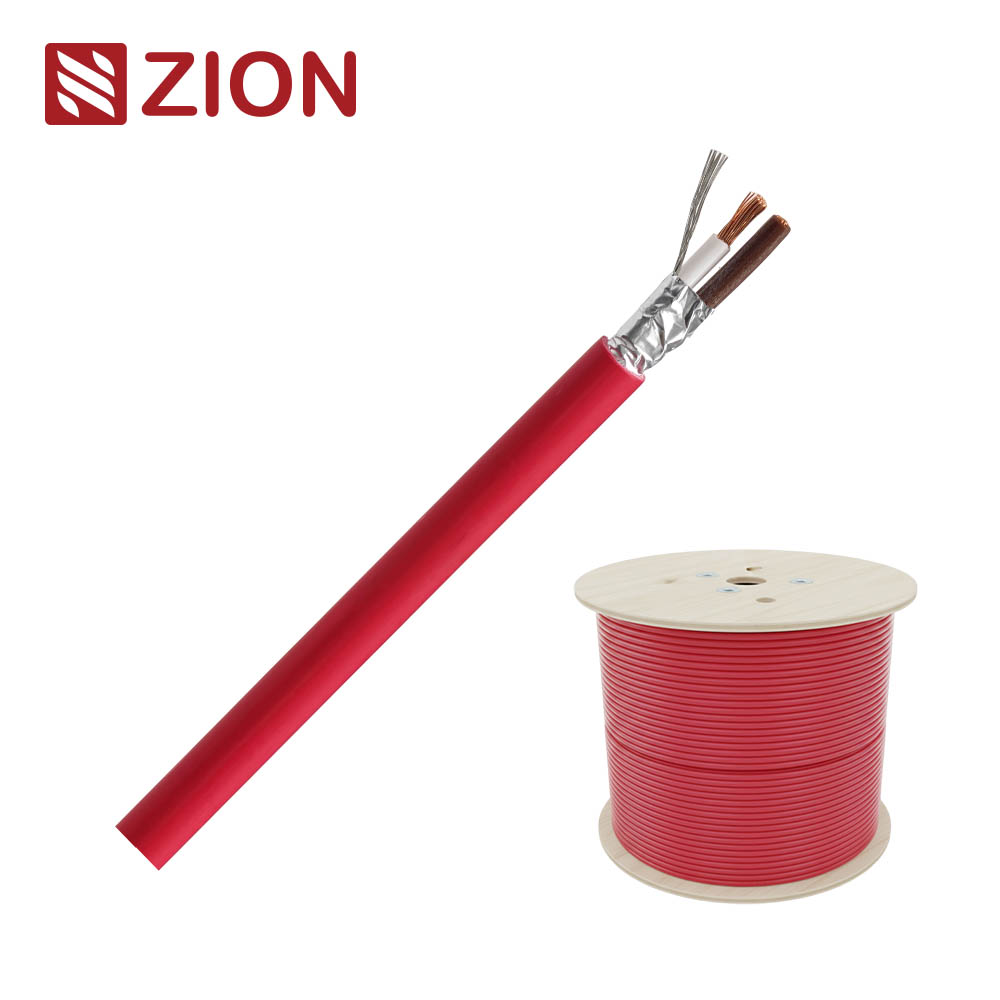

Fire Resistant Cable 2 × 1.0 sq mm | IEC60331-21 (FE90) | LSZH Red RAL 3000
| Item | Specification |
|---|---|
| Product Name | Fire Resistant Cable |
| Model No. | FR331-OS-0210 |
| Construction Type | CU / FR / OS / LSZH |
| Conductor Material | Stranded Bare Copper (Class 5, EN 60228) |
| Conductor Size | 18 × 0.25 mm |
| Nominal Cross Section | 2 × 1.0 sq mm |
| Rated Voltage | 300 / 500 V |
| Operating Temperature | −30 °C ~ +90 °C |
| Color | Red RAL 3000 |
| Applicable Standards | IEC 60331-21 (FE90), IEC 60332-1-2, IEC 60332-3-24, EN 50266-2-4, IEC 61034-1/2, IEC 60754-1/2, EN 50267, CE, RoHS |
| Component | Material / Description | Standard | Dimensions |
|---|---|---|---|
| Conductor | Stranded Bare Copper | EN 60228 | 18 × 0.25 mm |
| DC Resistance (20 °C) | — | EN 60228 | ≤ 19.5 Ω/km |
| Insulation | Silicone Rubber (Heat Resistant) | IEC/EN 60811-203 | ≥ 0.42 mm |
| Insulation Diameter | — | IEC/EN 60811-201 | 2.1 ± 0.1 mm |
| Insulation Colors | Brown / White | — | — |
| Insulation Resistance | > 200 MΩ/km | — | — |
| Overall Screen | Aluminum Foil (overlapped) | — | 0.04 mm × 20 mm |
| Drain Wire | Tinned Copper (7 × 0.3 mm) | — | — |
| Outer Sheath | LSZH (Low Smoke Zero Halogen) | IEC/EN 60811-202 | ≥ 0.6 mm |
| Outer Diameter | — | IEC/EN 60811-203 | 5.8 ± 0.2 mm |
| Pitch of Twist | — | — | 96 ± 10 mm |
| Inductance | — | — | 2.3 mH/km |
| High Voltage Test | EN 50288-7 | 2.0 kV / 1 min | — |
| Test | Standard | Requirement / Description |
|---|---|---|
| Fire Resistance | IEC 60331-21 (FE90) | Maintains circuit integrity for 90 minutes at 750–850 °C |
| Flame Propagation | IEC 60332-1-2 / IEC 60332-3-24 / EN 50266-2-4 | Controls flame spread on single and bunched cables |
| Smoke Density | IEC 61034-1/2 | Low smoke emission ensuring visibility in fire |
| Corrosive Gas Emission | IEC 60754-1/2 / EN 50267 | Low acid gas release, halogen-free |
| RoHS Compliance | EU Directive 2011/65/EU | Confirmed (Pb, Cd, Hg, Cr⁶⁺, PBB, PBDE Free) |
Insulation Resistance: > 200 MΩ/km
Voltage Withstand: 2.0 kV (1 min)
Inductance: 2.3 mH/km
Operating Temperature: −30 °C ~ +90 °C
Minimum Bending Radius: 10 × Cable OD
Fire Survival Duration: 90 min (FE90)
For emergency and control circuits where cable integrity during fire is critical:
Fire alarm and emergency lighting systems
Smoke and sprinkler control circuits
Public buildings, tunnels, airports, hospitals, data centers
Fire Resistance (FE90): Maintains electrical continuity under flame for 90 minutes
LSZH Outer Sheath: Low smoke and non-toxic gas emission
Silicone Insulation + Aluminum Foil Screen: Excellent thermal and EMI protection
✅ Compliant with Global Fire Safety Standards: IEC / EN / CE / RoHS
