FR6387-OS
Zion communication
Fire Cable
UL, ETL, CE,CPR, RoHS
100m,500m,500ft,1000ft
roll, wooden spool, carton, pallet
10KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight

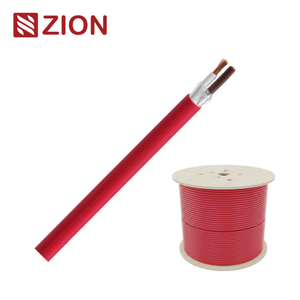

Fire Resistant Cable 2 × 2.5 sq mm | BS6387 / IEC60331 / LSZH (Red RAL 3000)
| Item | Specification |
|---|---|
| Product Name | Fire Resistant Cable |
| Model No. | FR6387-OS-0225 |
| Structure Type | CU / FR / OS / LSZH |
| Conductor Material | Stranded Bare Copper (Class 5, EN 60228) |
| Conductor Size | 45 × 0.25 mm |
| Nominal Cross Section | 2 × 2.5 sq mm |
| Rated Voltage | 300 / 500 V |
| Operating Temperature | −30 °C ~ +90 °C |
| Color | Red RAL 3000 |
| Applicable Standards | IEC 60331-21 (FE180), BS 6387 CAT B / CAT C, IEC 60332-1-2, IEC 60332-3-24, EN 50200 PH120, CE, RoHS |
| Component | Material / Description | Standard | Dimensions |
|---|---|---|---|
| Conductor | Stranded Bare Copper | EN 60228 | 45 × 0.25 mm |
| DC Resistance (20 °C) | — | EN 60228 | 7.98 Ω/km |
| Insulation | Silicone Rubber, Heat Resistant | IEC/EN 60811-203 | 0.5 mm thick |
| Insulation Diameter | — | IEC/EN 60811-201 | 3.1 ± 0.1 mm |
| Insulation Colors | Brown / White | — | — |
| Insulation Resistance | > 200 MΩ/km | — | — |
| Fire Barrier Layer | Mica Tape | — | 0.14 × 24 mm |
| Overall Screen | Aluminum Foil (overlapped) | — | 0.04 × 24 mm |
| Drain Wire | Tinned Copper | — | 7 × 0.3 mm |
| Outer Sheath | LSZH (Low Smoke Zero Halogen) | IEC/EN 60811-202 | 0.7 mm thick |
| Outer Diameter | — | IEC/EN 60811-203 | 8.0 ± 0.2 mm |
| Pitch of Twist | — | — | 136 ± 10 mm |
| Inductance | — | — | 2.3 mH/km |
| Voltage Test | EN 50288-7 | 2.5 kV / 1 min | — |
| Test | Standard | Requirement / Description |
|---|---|---|
| Fire Resistance | IEC 60331-21 (FE180) / BS 6387 CAT B, CAT C | Maintains circuit integrity for 180 min at 750–950 °C |
| Flame Propagation | IEC 60332-1-2 / IEC 60332-3-24 / EN 50266-2-4 | Controls flame spread on single and bunched cables |
| Smoke Density | IEC 61034-1/2 | Ensures low smoke emission for better visibility |
| Corrosive Gas Emission | IEC 60754-1/2 / EN 50267 | Low acid gas and halogen content |
| RoHS Compliance | EU Directive 2011/65/EU | Confirmed (Pb, Cd, Hg, Cr⁶⁺, PBB, PBDE Free) |
Insulation Resistance: > 200 MΩ/km
High Voltage Withstand: 2.5 kV (1 min)
Inductance: 2.3 mH/km
Operating Temperature: −30 °C ~ +90 °C
Minimum Bending Radius: 10 × OD
Fire Survival Duration: 180 min (FE180 / PH120)
Engineered for emergency and life-safety circuits requiring power continuity under fire conditions:
Fire alarm and emergency lighting systems
Sprinkler and smoke extraction controls
Emergency communication circuits
Hospitals, tunnels, metro stations, industrial plants, data centers
FE180 / PH120 Protection: Maintains circuit operation up to 180 min at 950 °C
LSZH Outer Sheath: Minimal smoke and zero halogen gas emission
Mica + Silicone Insulation: Superior thermal and dielectric stability
️ Overall Screen with Drain Wire: Excellent EMI protection
✅ Compliant with Global Safety Standards: IEC, BS, EN, CE, RoHS
