Fiber Optic Tool Kits
Zion communication
Optical Fiber System
1pcs/box
10 boxes
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
Professional splice organization and fiber routing solution for optical closures, ODFs, FDBs and cabinets — designed to protect splices, maintain bend radius, and simplify maintenance.

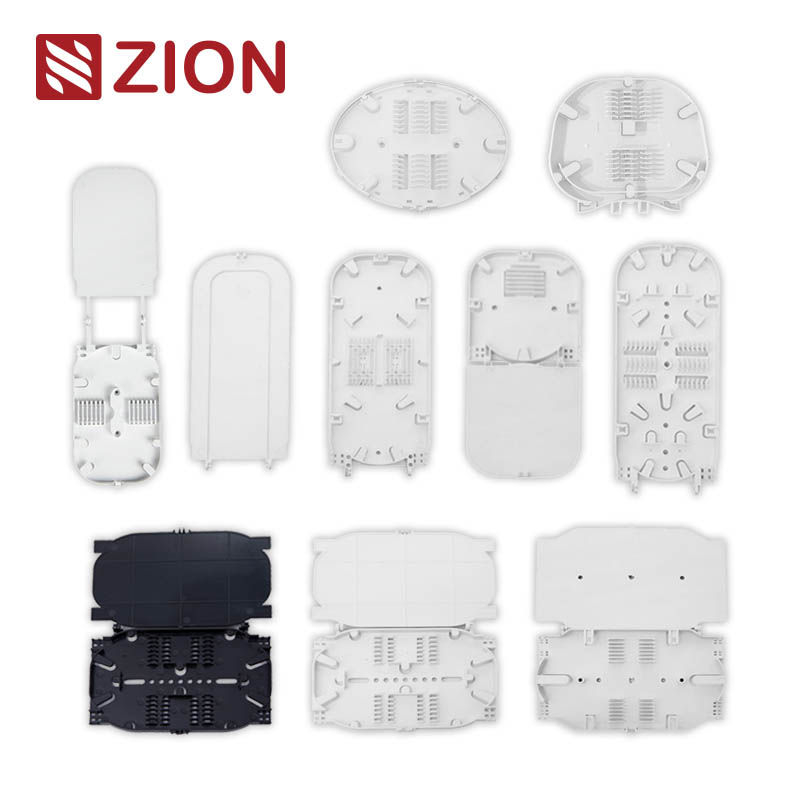

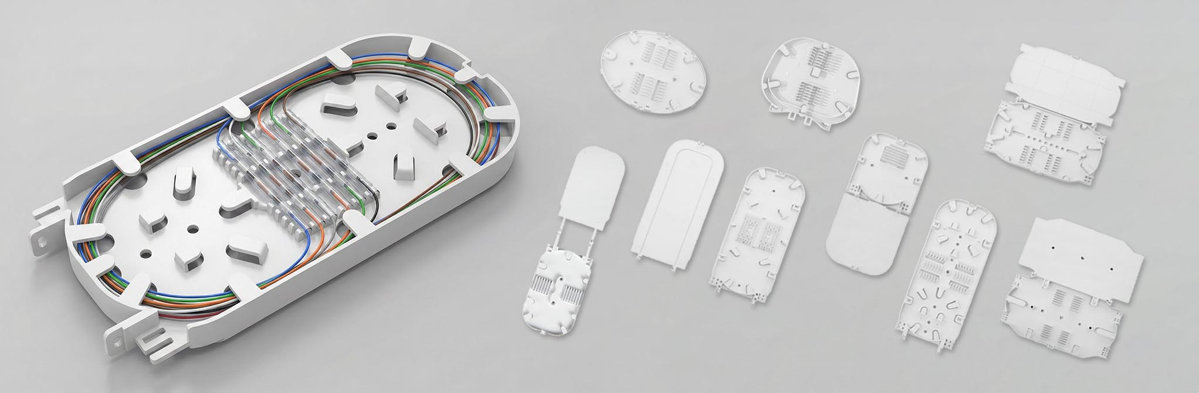

ZION Fiber Optic Splice Trays are engineered to organize and protect fiber splices inside optical splice closures, distribution frames, and FTTH access boxes. Each tray provides controlled routing paths, secure splice retention, and clear fiber management to reduce installation risk and improve long-term network reliability.
Fiber Optic Splice Closures (Dome / Inline)
ODF – Optical Distribution Frame
Fiber Distribution Box (FDB) / Termination Box
Wall Mount & Floor Standing Fiber Cabinets
FTTH / FTTx Access Networks & Backbone Links
Splice Protection
Dedicated holder slots for heat-shrink splice protectors (common lengths supported).
Fiber Routing
Smooth, rounded routing channels reduce micro-bending and accidental damage.
Bend Radius
Controlled routing geometry helps maintain recommended minimum bend radius.
Maintenance Friendly
Clear fiber pathways and labeling zones simplify inspection, re-entry and troubleshooting.
Multi-Layer Expansion
Stackable / hinged structures available for multi-tray closures and high fiber counts.
| Component | Material / Specification |
|---|---|
| Tray Body | High-strength ABS / PC (impact-resistant, stable for long-term indoor/outdoor use) |
| Splice Holder | Heat-shrink splice sleeve slots (typical 40 / 45 / 60 mm options) |
| Fiber Routing Slots | Smooth rounded channels to reduce abrasion and micro-bending |
| Fixing Method | Clip-in / screw mount / hinge type (depends on closure/ODF design) |
| Color | White / black / natural (optional) |
Note: Construction can be customized to match your closure, ODF, or cabinet internal structure.
| Tray Type | Splice Capacity | Typical Fiber Count |
|---|---|---|
| Single-Layer Tray | 12 / 24 splices | Up to 24 / 48 fibers (application dependent) |
| Double-Layer Tray | 24 / 48 splices | Up to 96 fibers (with multi-tray stacking) |
| Customized Tray | On request | On request |
Compatible with dome & inline fiber optic splice closures
Suitable for single-mode & multi-mode fibers
Supports G.652D / G.657A1 / G.657A2 fibers
Designed for standard heat-shrink splice protectors
Ideal for FTTH access, distribution, and backbone networks
Route incoming fibers along the tray’s guiding channels and secure them at fixation points.
Place splices into the dedicated holder slots (match sleeve length to tray type).
Organize slack fiber loops while maintaining recommended bend radius.
Label fibers/trays for quick identification during future re-entry.
Re-enter and service without disturbing existing fibers (stacked/hinged options).
Engineering-Grade Design
Optimized routing geometry helps reduce fiber stress and improves reliability.
Project-Friendly Supply
Stable production capacity for large-scale deployments and fast delivery.
OEM / ODM Customization
Tray size, splice holder type, mounting method, and labeling support available.
Solution Compatibility
Works smoothly with closures, cabinets, and FTTH accessories for complete fiber management.
What splice sleeve lengths are supported?
Common heat-shrink splice sleeves (e.g., 40 / 45 / 60 mm) can be supported. Please confirm your sleeve specification and required capacity, and we will match the tray holder design.
Can you customize a tray to fit our closure/ODF?
Yes. Share your internal layout dimensions, mounting method, target fiber count, and splice sleeve type — ZION can provide OEM/ODM matching.
How do I choose 12 vs 24 splices per tray?
Choose based on fiber count, closure space, and maintenance preference. For compact closures, 12-splice trays may improve handling; for high-density projects, 24-splice trays reduce tray quantity.
| Product | Fiber Optic Splice Tray |
| Material | ABS / PC (Optional) |
| Capacity | 12 / 24 / 48 splices |
| Structure | Single / Stackable / Hinged |
| Use | Closure / ODF / FDB / Cabinet |
| Customization | OEM / ODM |
Required capacity (splices/tray)
Splice sleeve length (mm)
Tray dimensions limit (L×W×H)
Mounting style (clip/screw/hinge)
Application (closure/ODF/FDB)
