Fiber Termination Tools
Zion communication
Optical Fiber System
1pcs/box
10 boxes
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight

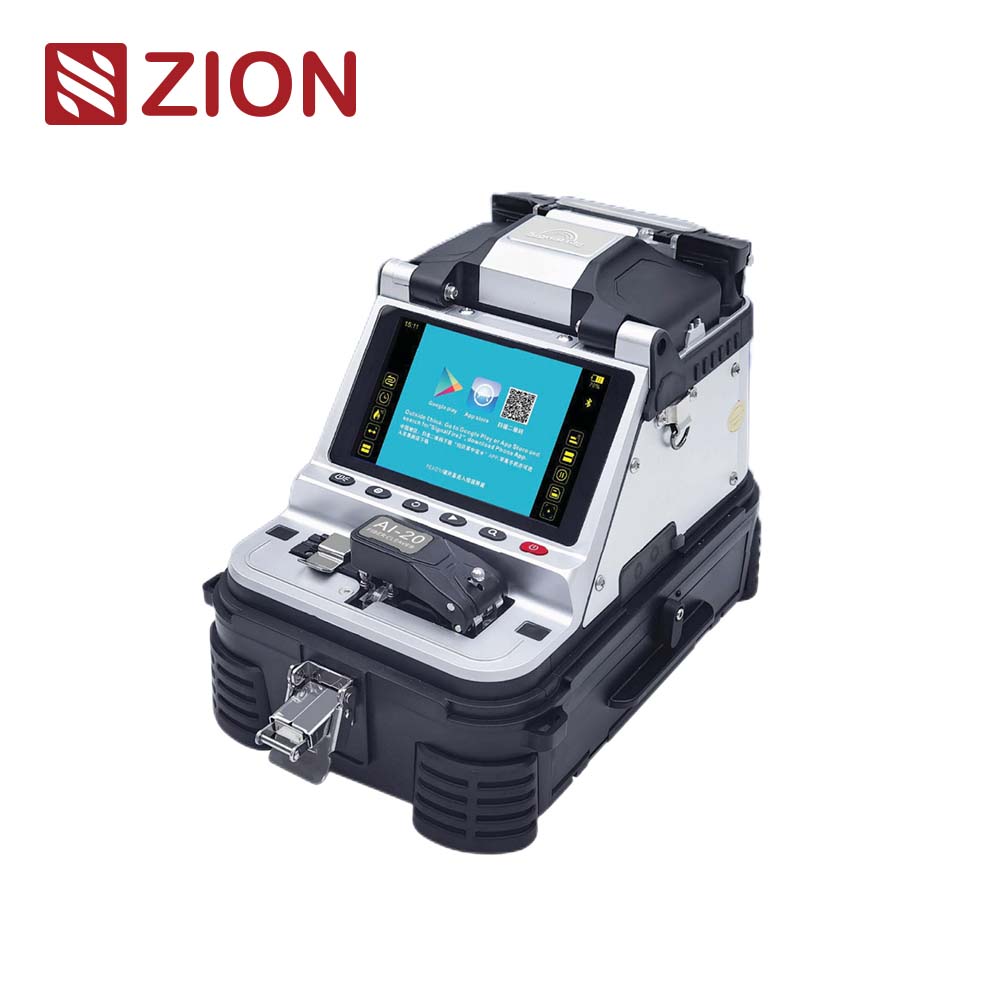

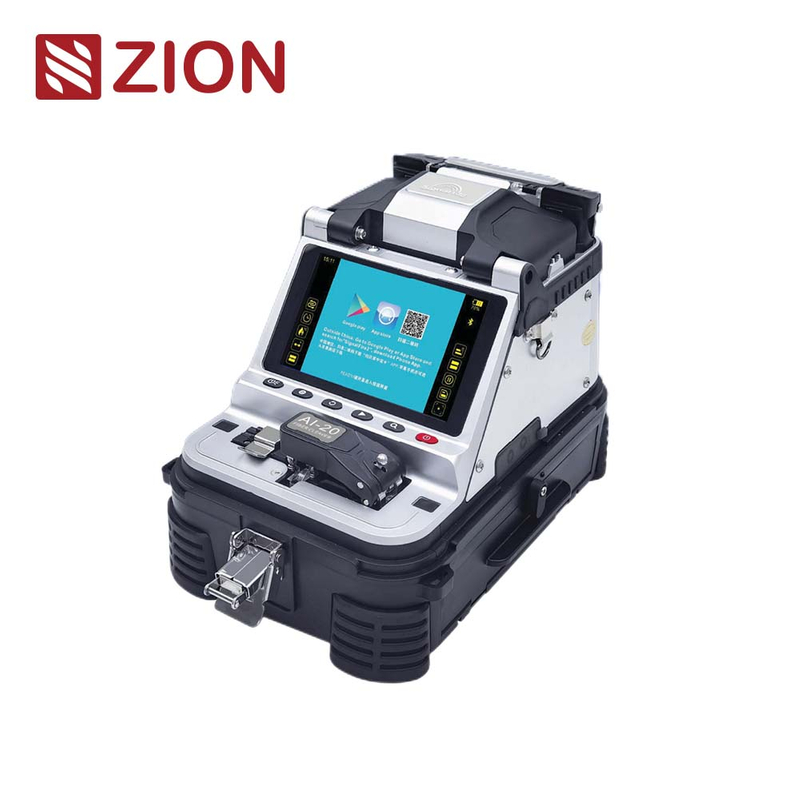

The ZCFFSAI-20 is a portable fusion splicer for fiber installation and maintenance. It integrates alignment, fusion, heating, on-screen inspection, and built-in optical test functions, based on the specifications provided.
The ZCFFSAI-20 is designed for routine fiber splicing work, including FTTH access builds, general telecom construction, and field maintenance. The statements below are based on the specifications you provided. Any performance value may vary with fiber condition, preparation quality, and the working environment.
Splicing time: 5 seconds (core alignment).
Motors: 6 motors; 0.1 μm accuracy
Typical splice loss: 0.02 dB (SM), 0.01 dB (MM)
Heating time: 15 seconds
Cooling rack: expandable and closable
Sleeves: 60 / 50 / 40 / 25 mm (included list).
Ingress rating: IP54
Temperature: –15 °C to +50 °C
Altitude: up to 5,000 m
Battery: 7,800 mAh lithium
Cycles: 240 cores / 260+
Charge time: ≤ 3.5 hours
Display: 5-inch TFT color screen.
Magnification: 320× (single axis) and 200× (dual axis)
Fiber holder: universal 3-in-1 clamp; no tool change required
Accuracy: ±0.3 dB
Range: –50 to +26 dBm
Wavelengths: 10 (850/1300/1310/1490/1550/1625/980/1270/1577/1650 nm).
Output: 15 mW
Modes: 2 Hz flashing and steady on
Use: fiber tracking and break/leak check
Real-time luminous flux assisted alignment: stated as applicable only when there is a stable optical signal link from the front. This function is therefore scenario-dependent.
Record storage: 1,000 onboard records
Bluetooth: Bluetooth 4.2
Mobile app: stated functions include record management and firmware updates. Range (60 m) is stated; actual range depends on the environment.
The product description states compatibility with single-mode (G.652), bend-insensitive fiber (G.657), multi-mode fiber, bare fiber, drop cables, and jumpers.
| Item | Specification |
| Splicing time | 5 s (core alignment) |
| Heating time | 15 s |
| Display | 5″ TFT color |
| Magnification | 320× (single axis), 200× (dual axis) |
| Record storage | 1,000 records |
| Battery | 7,800 mAh lithium |
| Cycles per charge | 240 cores/ 260+ |
| Protection rating | IP54 |
| Operating temperature | –15 °C to +50 °C |
| Max altitude | 5,000 m |
| VFL | 15 mW, 2 Hz / steady |
| OPM | ±0.3 dB, –50 to +26 dBm, 10 wavelengths |
| Bluetooth | Bluetooth 4.2 |
| Machine size | 165 × 255 × 185 mm |
| Machine weight | 3.09 kg |
| Toolkit weight | 4.5 kg (machine + accessories) |
| Total weight | 5.5 kg |
Heat shrink sleeves: 60 / 50 / 40 / 25 mm.
Universal fiber cleaver.
AC/DC power adapter.
Hard transport case.
Based on the described functions (splicing, heating, OPM, and VFL), the device is applicable to routine fiber installation and maintenance, including FTTH deployment and general telecom field work.
Contact us for configuration details and availability →
