Passive Optical LAN normally uses single-mode fiber, but “OS2” alone is not a complete cable specification. The route from an OLT room to an ONT can pass through backbone pathways, risers, crowded floor boxes, tight wall outlets and short patch-cord loops. These locations do not.

What the ITU Recommendations Cover ITU-T G.652 defines geometrical, mechanical and transmission attributes for widely used single-mode fiber optimized around the 1310 nm region and also.
Where G.652.D Fits G.652.D remains a practical choice for:
Where G.657.A1 Fits G.657.A1 is useful when the design wants G.652.D-compatible behavior with improved macrobending tolerance.

Passive Optical LAN normally uses single-mode fiber, but “OS2” alone is not a complete cable specification. The route from an OLT room to an ONT can pass through backbone pathways, risers, crowded floor boxes, tight wall outlets and short patch-cord loops. These locations do not impose the same bend or mechanical conditions.

G.652.D, G.657.A1 and G.657.A2 can all have roles in the same project. The design task is to match fiber performance and finished cable construction to each segment.

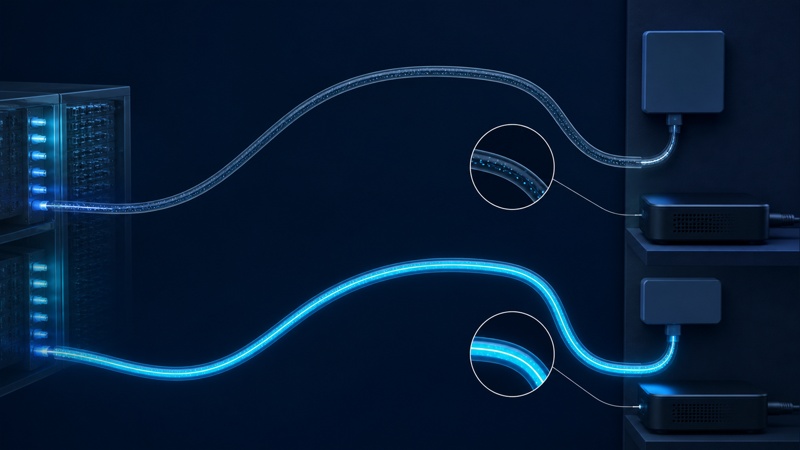

Technical overview of G.652.D and G.657 fiber selection for POL

1. What the ITU Recommendations Cover

ITU-T G.652 defines geometrical, mechanical and transmission attributes for widely used single-mode fiber optimized around the 1310 nm region and also usable around 1550 nm.

ITU-T G.657 defines bend-insensitive single-mode fiber. Its 2024 edition states that category A fibers are compatible with G.652.D and can be deployed in access, transport and data-center networks.

The recommendation identifies:

  • G.657.A1 for a minimum design radius of 10 mm
  • G.657.A2 for a minimum design radius of 7.5 mm

These are fiber-level design values. Finished cable data sheets may specify larger installation and long-term radii.

2. Where G.652.D Fits

G.652.D remains a practical choice for:

  • Main feeder cables
  • Controlled backbone pathways
  • Long campus routes
  • Outdoor duct or aerial segments
  • High-fiber-count loose-tube cables
  • Routes with generous bend management

Its strengths include broad interoperability, established supply and suitability for conventional single-mode backbone design.

Its limitation in POL is not transmission capacity. It is sensitivity to tight bends that can occur near compact terminals and ONTs.

3. Where G.657.A1 Fits

G.657.A1 is useful when the design wants G.652.D-compatible behavior with improved macrobending tolerance.

Typical applications include:

  • Building risers
  • Indoor distribution cable
  • Floor distribution terminals
  • Dense ODF routing
  • Indoor/outdoor transition cable
  • General enterprise horizontal fiber

For many projects, A1 can provide a balanced standard across feeder and distribution segments.

4. Where G.657.A2 Fits

G.657.A2 is especially useful near:

  • Compact fiber outlets
  • Wall-mounted ONTs
  • Shallow raceways
  • Furniture pathways
  • Small terminal boxes
  • Tight service loops
  • Preterminated drop assemblies

The improved bend performance does not authorize careless installation. Crushing, kinking, tight tie-wraps and connector stress can still damage a cable or increase loss.

5. Fiber Type Is Not Cable Construction

Two cables containing the same G.657.A2 fiber can behave differently because of:

  • Buffer design
  • Strength members
  • Armor
  • Jacket material
  • Cable diameter
  • Tensile rating
  • Crush resistance
  • Fire rating
  • Water blocking
  • Approved bend radius

Therefore, specify both the fiber and the cable.

Example:

12-fiber OS2 indoor distribution cable, G.657.A1, LSZH jacket, all-dielectric, project-defined flame performance, maximum attenuation and minimum bend radius per approved data sheet.

6. Match Fiber to the POL Segments

POL segment Common preference Design reason
OLT room patching G.657.A1/A2 patch cords Dense routing and frequent handling
Feeder backbone G.652.D or G.657.A1 Controlled route and higher fiber count
Campus outdoor link G.652.D or approved G.657.A1 cable Construction and environment dominate
Building riser G.657.A1 Better bend tolerance in shafts and cabinets
Floor distribution G.657.A1/A2 Smaller pathways and enclosures
Outlet-to-ONT drop G.657.A2 Tight turns and compact service loops

The table is a starting point, not a substitute for the cable manufacturer's instructions.

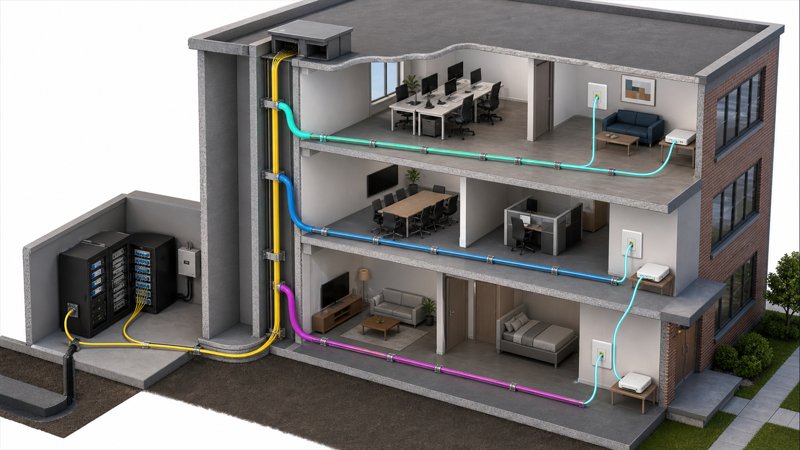

Segment Selection for G.652.D and G.657 fiber selection for POL

7. Splicing and Interconnection

Category A G.657 fibers are designed for compatibility with G.652.D, but field work should still control:

  • Fusion-splicer program
  • Cleave quality
  • Mode-field differences within allowed ranges
  • Splice-protection fit
  • Bend control in trays
  • Pigtail identification
  • OTDR interpretation

The 2024 G.657 revision confirms the compatibility basis for category A fiber, supporting mixed use when components and processes are properly specified.

8. Bend Loss and Optical Budget

Macrobending can create wavelength-dependent loss. A route that appears acceptable during a simple continuity check can fail under longer-wavelength testing or after patch cords are rearranged.

Protect the budget by:

  • Using bend-insensitive fiber in compact zones
  • Maintaining tray and organizer radii
  • Avoiding overfilled wall boxes
  • Standardizing patch-cord lengths
  • Inspecting service loops
  • Testing at specified wavelengths

The APOLAN technical specification calls for installed fiber testing and connector inspection, making physical route quality part of acceptance.

9. Fire and Environmental Requirements

G.652.D or G.657.A2 does not identify fire performance. The finished cable must separately meet the building and jurisdiction requirements for:

  • Plenum
  • Riser
  • LSZH
  • CPR classification
  • Indoor/outdoor transition
  • UV exposure
  • Moisture
  • Rodent or mechanical risk

Never substitute a bend-insensitive indoor drop cable for a required outdoor or fire-rated construction simply because the fiber is correct.

10. Procurement Checklist

  • Fiber category and edition of referenced standard
  • Maximum attenuation by wavelength
  • Cable construction
  • Fiber count and color code
  • Minimum installation and long-term bend radius
  • Maximum pulling tension
  • Crush resistance
  • Jacket material and fire classification
  • Operating temperature
  • Cable diameter and weight
  • Drum length
  • Required compliance and factory-test documentation

ZION's G.652.D versus G.657 guide provides an existing product-selection foundation that can be adapted specifically to POL routes and building environments.

Conclusion

G.652.D is well suited to controlled backbone and campus routes. G.657.A1 adds bend tolerance while retaining G.652.D compatibility. G.657.A2 is especially valuable in compact indoor distribution, outlets and ONT drops.

The best POL design may use more than one fiber category while keeping the interfaces, loss budget, construction and documentation consistent.
