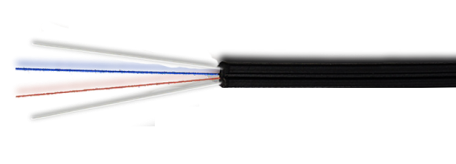

GJXFH-2 G657A1 GFRP Drop cable

Technical Parameters

Cable
Code

Fiber
Count

Cable Size
(mm)

Cable
Weight
(kg/km)

Tensile
 Strength
 Long/Short
term(N)

Crush
Resistance
Long/Short
term
(N/100mm)

Bending
Radius Static/Dyna
mic
(mm)

GJXFH

2

(2.0±0.1)×
(3.0±0.1)

9

40/80

500/1000

15/30

Storage/Operating Temperature:-20℃to+60℃

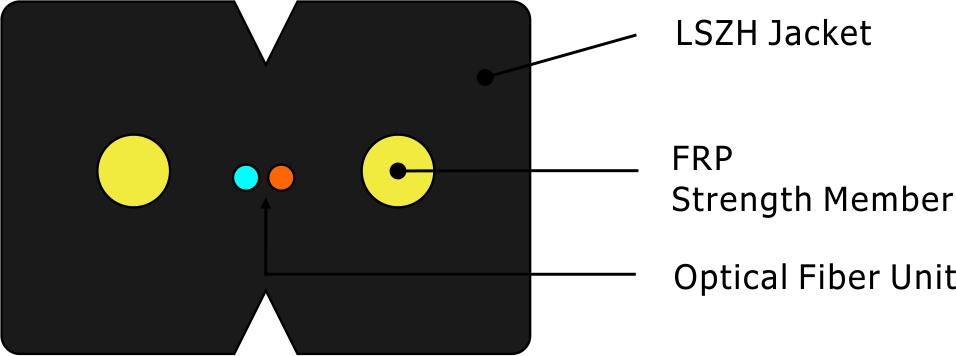

Cross Section

Description

The optical fiber unit is positioned in the center. Two parallel Fiber Reinforced(FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color LSZH sheath.

Characteristics

▶ Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
▶ Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
▶ Single steel wire as the additional strength member ensure good performance of tensile strength.
▶ Simple structure, light weight and high practicability.
▶ Novel flute design. easily strip and splice, simplify the installation and maintenance.
▶ Low smoke, zero halogen and flame retardant sheath.

Order Informations

Marking

HELLOSIGNAL GJYXFCH xxxxM
(or Per customer's request)

Inner Package

2000m/Spool (or Per customer's request)

Outer Package

 Pallet (or Per customer's request)

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL^®   OR OEM
