GJXH-1 G657A1 (Steel) Drop cable
No.7120051
GJXH cable:
· Fiber Count: 1
· Cable Size: (2.0±0.1) × (3.0±0.1) mm
· Cable Weight: 9 kg/km
· Tensile Strength:
o Short-term: 40 N
o Long-term: 80 N
· Crush Resistance:
o Short-term: 500 N/100mm
o Long-term: 1000 N/100mm
· Static: 15 mm
· Dynamic: 30 mm
Storage/Operating Temperature:-20℃to+60℃

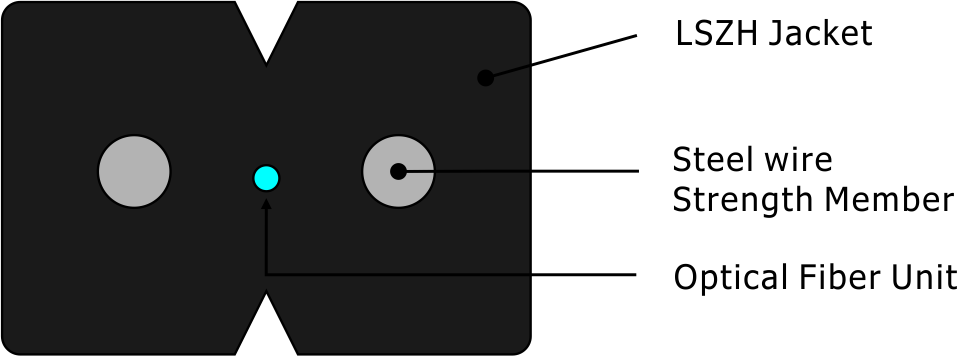

The optical fiber unit is positioned in the center. Two parallel Fiber Reinforced(FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color LSZH sheath.
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
Single steel wire as the additional strength member ensure good performance of tensile strength.
Simple structure, light weight and high practicability.
Novel flute design. easily strip and splice, simplify the installation and maintenance.
Low smoke, zero halogen and flame retardant sheath.
Models: GJXFH, GJXH, GJXH Small, GJXFDH/GJXDH, FDC
Cables used in FTTH networks must be lightweight for convenience, yet robust enough to endure various environmental conditions during both indoor and outdoor applications.
Lightweight Non-metallic BRP Frabicated FRP for Internal Use
Metallic Steel Members for Sturdiness and Reliability under Extreme Conditions
Increased Fiber Count Contained in Small Mountable Ducts Suitable for Fast High Capacity Links (with illustrational labels)
Negligible Profile for Viability under Carpets, Walls, or Ducts in Construction Sites whatever, Indoor/Outdoor purposes.
Best For: Used for residential places, offices, or commercial installations for flexible routing with overlaying or underlaying minimum structures.
PIC | Feature | Structure | Strength Member | Sheath | Dimensions (mm) | Fiber Count | Application | Key Advantage | Tensile Strength (N) |
 | Flat, | FRP | LSZH | 2.0 × 3.0 | 1–4 | Indoor | Lightweight, | 60 (long-term) | |
 | Flat, | Steel Wire | LSZH | 2.0 × 3.0 | 1–4 | Indoor | Durable, | 100 (long-term) | |
 | Flat, | Steel Wire | LSZH | 1.6 × 2.0 | 1–2 | Indoor FTTH | Compact, | 80 (long-term) | |
 | Flat, | FRP or | LSZH | 2.0 × 4.0 | 2–4 (Ribbon) | Indoor FTTH | High fiber count (ribbon) | 60–100 | |
 | Flat, | Steel Wire | LSZH | 3.0 × 6.0 | 1–12 | Indoor | Robust, | 150 (long-term) |
Models: GJYXCH, GJYXFCH, GJYXFDCH/GJYXDCH, ASU, GYXY-8S, GYFXBY
FTTH networks, which are established for aerial deployments, are required to have cables that persist heavy-duty use, do not corrode, and can cover a wide span without “sagging.”
Steel or FRP Messenger: Used Fulfillment of High Flyers to have Requested Strength.
Best For: Greatly suitable for aerial FTTH deployments that are on a longer span and need endurance and reliability.
PIC | Specification | Structure | Strength Member | Sheath | Dimensions (mm) | Fiber Count | Self-Supporting | Application | Key Advantage | Tensile Strength (N) |
 | Flat, | Steel Wire | LSZH | 2.0 × 5.2 | 1–4 | Yes (Steel Wire Messenger) | Aerial FTTH | Durable, | 60 (long-term) / 120 (short-term) | |
 | Flat, | FRP | LSZH | 2.0 × 5.2 | 1–4 | Yes (FRP Messenger) | Aerial FTTH | Lightweight, | 200 (long-term) / 400 (short-term) | |
 | Flat, | Steel Wire / FRP (Messenger + Core) | LSZH | 2.0 × 5.2 | 2–4 | Yes (Steel Wire Messenger) | Aerial FTTH | High fiber count, self-support | 300 (long-term) / 600 (short-term) | |
 | Round, | FRP | HDPE | 7.0 / 8.0 | 1–12 | Yes (FRP) | Aerial FTTH | Long-span, | 600 (long-term) / 1200 (short-term) | |
 | Figure-8, | Steel Wire | HDPE | Varies (Figure-8) | 1–12 | Yes (Steel Wire Messenger) | Aerial FTTH | Figure-8 | 300 (long-term) / 600 (short-term) | |
 | Flat, | FRP | PE | Varies | 1–12 | Yes (FRP) | Aerial FTTH | Flat, | 200 (long-term) / 400 (short-term) |
Marking: HELLOSIGNAL GJYXFCH xxxxM (or Per customer's request)
Inner Package: 2000m/Spool (or Per customer's request)
Outer Package: Pallet (or Per customer's request)
Delivery time: Normally 25 days after received the deposit.
Brand: HELLOSIGNAL® OR OEM
