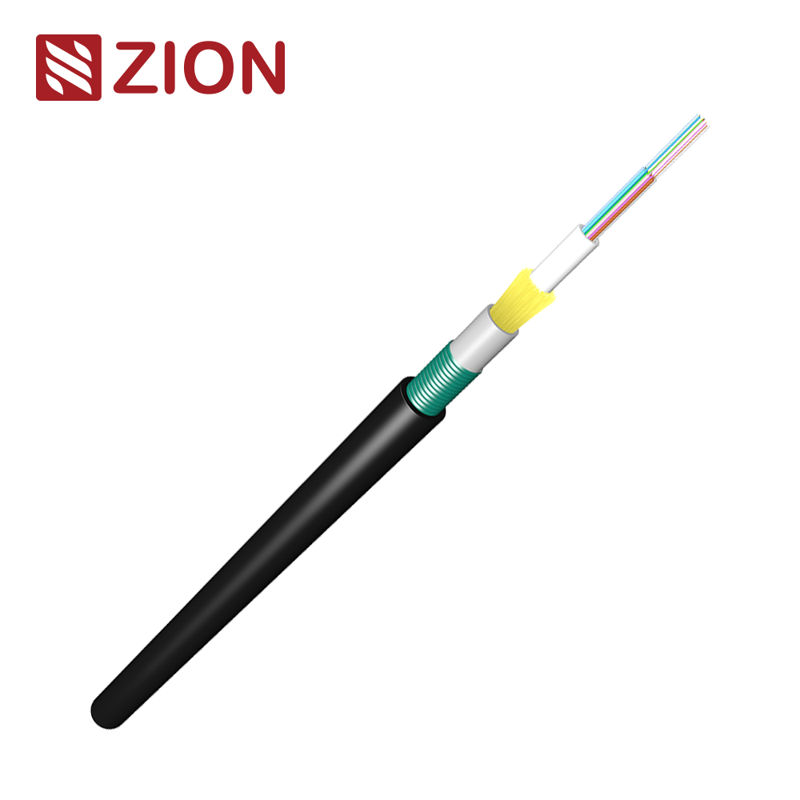

GLFXTS Roader Micro-trench Uni-Tube Fibers Aramid PSP Armored Fiber Optic Cable

GLFXTS                                                                                            Roader Micro-trench Uni-Tube Fibers Aramid PSP Armored Fiber Optic Cable for Short-Distance Line (Route Shortage)

Introduction:

It is a kind of optical cable with small diameter,can be laid by cutting a narrow trench on the road surface,burying the optical cable in it and then back filling it to the original road conditions.This optical cable consists of single-mode/multimode fibres,a loose tube,aramid yarns as the strength member,a steel tape armor and a pe sheath.It is featured with light weight,good flexibility,easy installation,low costs and fast installation speed,etc.

Features:

● Accurate process control ensuring good mechanical and temperature performances
● Tube filling compound providing key protection for fibres
● Unique design of sheath with steel tapes ensuring good rush performance
● Allowing to laid by micro trench on the road surface directly

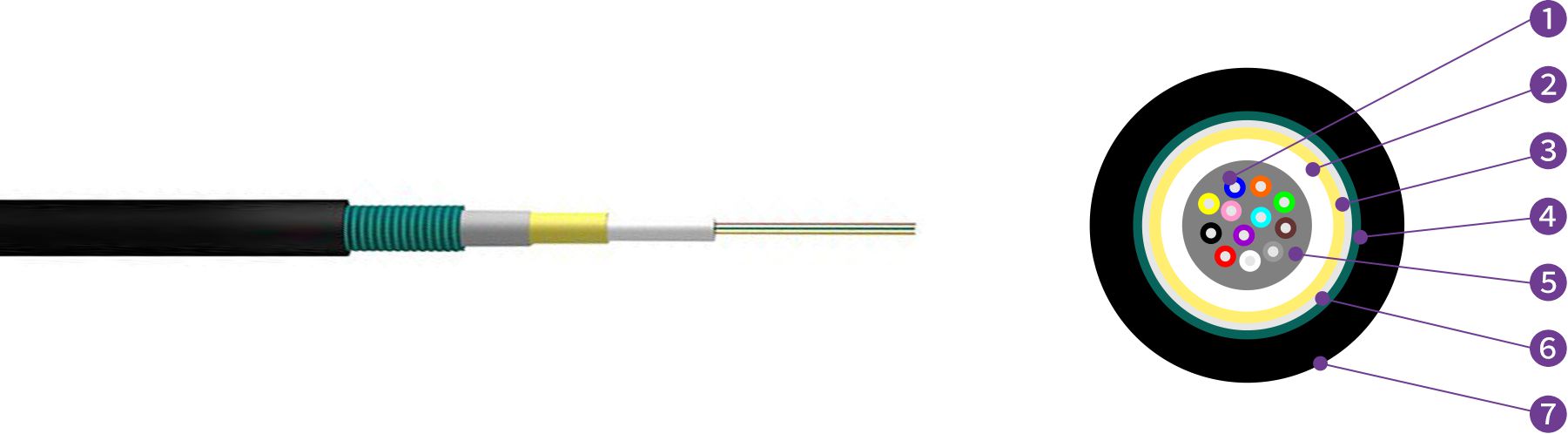

Cross Section:

 1, Fibers    2, Loose Tube   3, Aramid Yarns  4, PSP   5, Tube Filling Compound   6, Water-Blocking Tape   7,PE sheath

Technical Characteristics:

Type

Fiber count
Tube*Fibers

Diameter
mm

Weight
(kg/km)

Tensile Strength
Long/Short(N)

Crush Resistance
Long/short
(N/100mm)

GLFXTS-02-12Xn

2-12（1*12）

8.5±0.1(3.0Tube)

70

300/1000

300/1000

  Note: This specification provides a normative reference. Adjustable outer diameter to suit your budget.Contact us ASAP.

Environmental Characteristics:

  Transport/storage temperature: -20℃~70℃

Applications:

The cab le can be used as the drop cable of feeder segments in FTTH networks and can be laid by air blowing to connect the branch point with the access point for subscribers. The cab le is also applicable in backbone networks, metropolitan area networks and access networks.

Delivery Length:

 Standard length:2000m;Other length availabe
