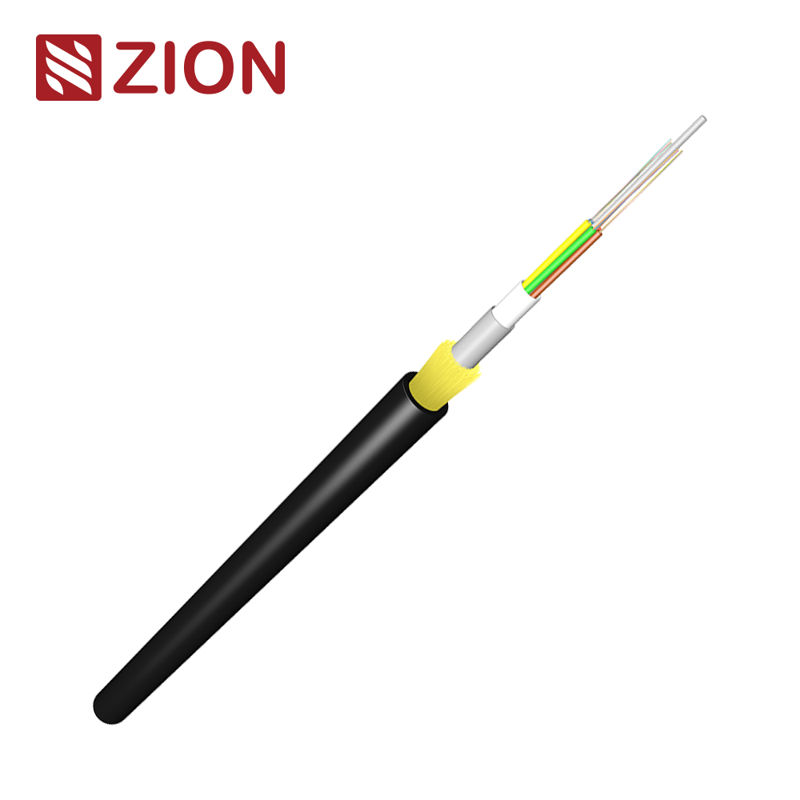

GPTCA63 Ducting laying in Waiver Sewer Stranded Loose Tubes APL Aramid Yarns Armored Fiber Optic Cable

  • Stranded Loose Tubes APL Aramid Yarns Armored

  • N/M

  • N/M

  • Route Shortage

  • ISO9001

  • 3km/Spool

  • Wooden Spool ,Φ1200*750mm

  • 40km

  • 5-25 Days

  • NINGBO CHINA

  • 30%TT as deposit,70%Balance before shipping.

Availability:

Product Description


GPTCA63                                                                                          Ducting laying in Waiver Sewer Stranded Loose Tubes APL Aramid Yarns Armored Fiber Optic Cable for Short-Distance Line (Route Shortage)

Introduction:

It is a kind of optical cable with self-supporting,can be laid in the storm sewers.Optical fibers are housed in loose tubes that are made of high modulus plastic and filled with tube filling compound,The tubes are stranded around a metallic central strength member to form a cable core,The core is filled with water blocking compound and armored with laminated aluminum tape.Then pe sheath is extruded and aramid yarn are placed outside the inner sheath as the strength member,Final,A PE outer sheath is extruded.

Features:

● Accurate process control ensuring good mechanical and temperature performances
● Tube filling compound providing key protection for fibres
● Unique design of sheath with aramid yarn ensuring good  tension performance
● Water resistance of optical cable is ensured by the water blocking compound,aluminum tape armor

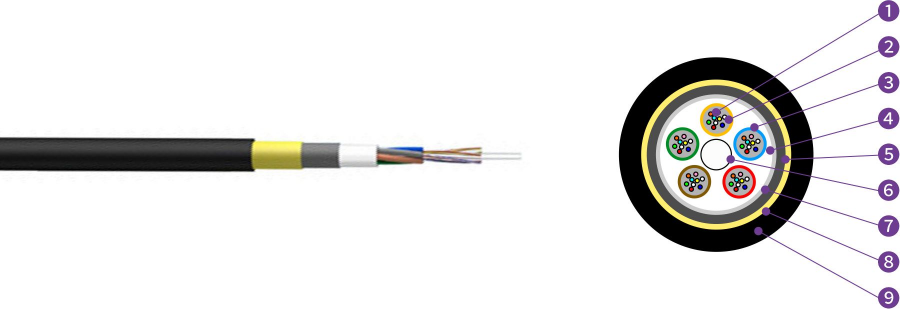

Cross Section:

GPTCA63-2



1, Fibers    2,Tube Filling Compound    3 Loose Tube with Gel    4,Cable Filling Compound    5,PE Inner Sheath  6,CSM

7, Aluminum Tape(APL)   8, Aramid Yarns    9,PE Outer sheath



























Technical Characteristics:

Type

Stranded Units

Max Fibers
/Tube

Diameter
mm

Weight
(kg/km)

Tensile Strength
Long/Short(N)

Crush Resistance
Long/short
(N/100mm)

GPTCA63-04-30Xn

5

6

13.0±0.1

143

2500

1000/2200

GPTCA63-32-36Xn

6

6

14.0±0.1

190

2500

1000/2200

GPTCA63-38-48Xn

8

6

14.0±0.1

195

3500

1000/2200

GPTCA63-50-72Xn

6

12

15.3±0.1

202

4500

1000/2200

GPTCA63-74-96Xn

8

12

17.0±0.1

260

5500

1000/2200

GPTCA63-98-120Xn

10

12

19.2±0.1

305

6500

1000/2200

  Note: This specification provides a normative reference. Adjustable outer diameter to suit your budget.Contact us ASAP.



Environmental Characteristics:

  Transport/storage temperature: -20~70


Applications:

The cab le can be used as the drop cable of feeder segments in FTTH networks and can be laid by air blowing to connect the branch point with the access point for subscribers. The cab le is also applicable in backbone networks, metropolitan area networks and access networks.


Delivery Length:

 Standard length:2000m;Other length availabe
