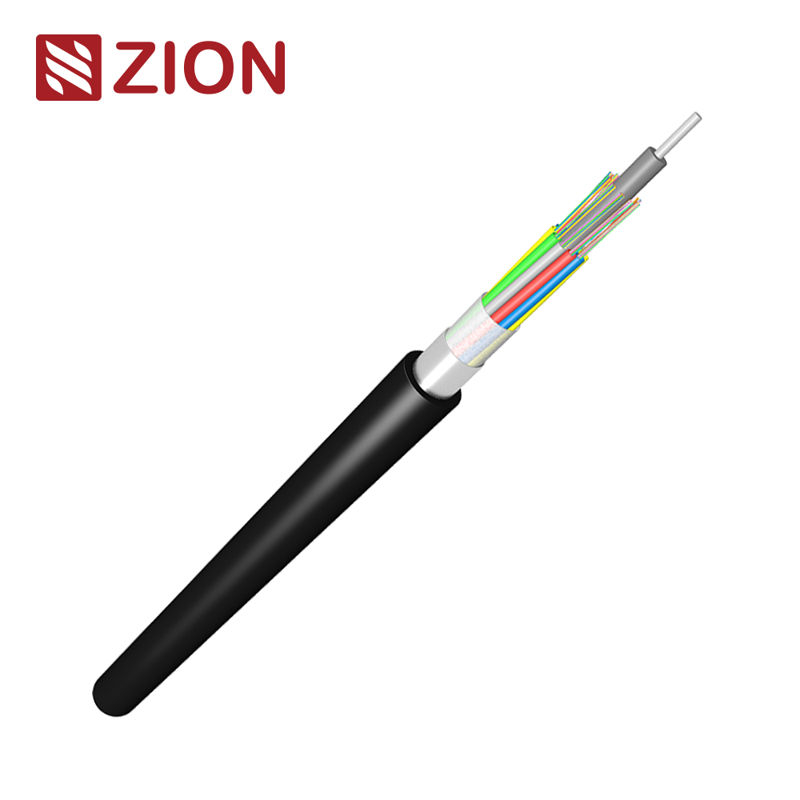

GYTA Small 60-144F High-density fibers in Duct Micro Stranded Loose tubes CSM APL Armored Fiber Optic Cable

Introduction:

It is a kind of optical cable with bending insensitive optical fibers.Optical fibers are housed in loose tubes that are made of high modulus plastic and filled with tube filling compound,The tubes are stranded around a central strength member to form a cable core,armored with laminated aluminum tape.Final,A PE outer sheath is extruded.

Features:

● Accurate process control ensuring good mechanical and temperature performances
● Tube filling compound providing key protection for fibres
● Using small sized fibers with good micro and marco bending performance
● Water resistance of optical cable is ensured by the water blocking compound,aluminum tape armor,cable filling compound ensuring longitudinal water resistance

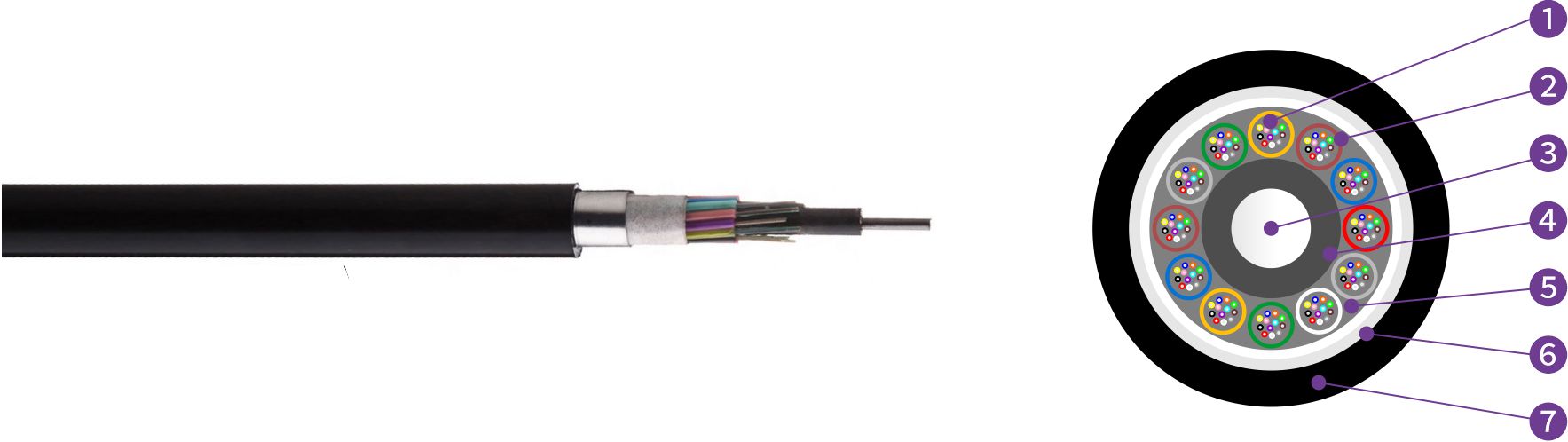

Cross Section:

 1.Fibers,  2.Loose Tube with Gel,  3.CSM,  4.PE Layer,  5.Compound,   6.Aluminum Tape,  7.PE Outer sheath

Technical Characteristics:

Type

Stranded Units

Max Fibers
/Tube

Diameter
mm

Weight
(kg/km)

Tensile Strength
Long/Short(N)

Crush Resistance
Long/short
(N/100mm)

GYTA≤60

5

12

6.9±0.1(1.2Thickness)

48

240/800

300/1000

GYTA 62-72

6

12

7.1±0.1(1.2Thickness)

53

300/850

300/1000

GYTA 74-96

8

12

8.1±0.1(1.2Thickness)

72

350/1200

300/1000

GYTA 98-120

10

12

9.0±0.1(1.2Thickness)

89

450/1400

300/1000

GYTA 122-144

12

12

9.8±0.1(1.2Thickness)

110

700/2000

300/1000

  Note: This specification provides a normative reference. Adjustable outer diameter to suit your budget.Contact us ASAP.

Environmental Characteristics:

Transport/storage temperature: -20℃~70℃

Compound flow:No filling compound or coating compound drop out of optical cable at 70℃

Water penetration:No water comes out within 24 hours after 1m water head is applied to the entire cross section of 3m long optical cable

Delivery Length:

 Standard length:2000m;Other length availabe
