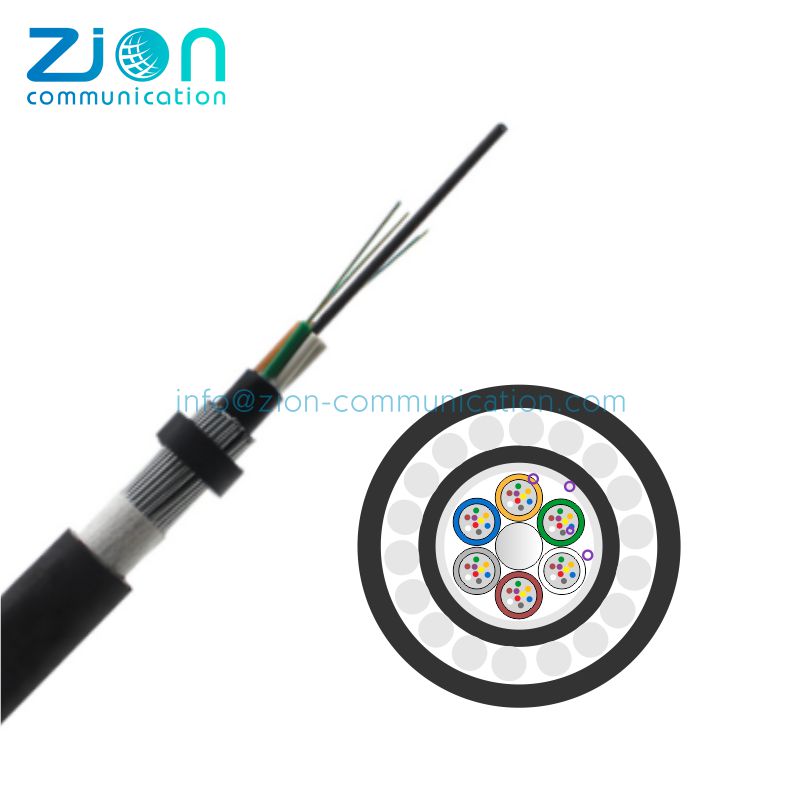

GYTA33
N/M
N/M
Outdoor Fiber Optic Cables
Direct Buried Fiber cable
ISO9001
3km/Spool
Wooden Spool ，Φ1200*750mm
40km
5-25 Days
NINGBO CHINA
30%TT as deposit,70%Balance before shipping.
1. Excellent mechanical and temperature performance
2. Better tensile strength performance with steel wires
3. Critical protection to fibers, based on the excellent hydrolysis resistance and strength performance of tube material and special filling compound filled in the tube
4. Excellent crush resistance

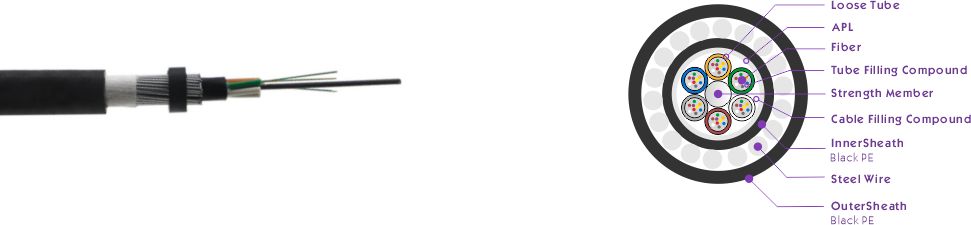

5. The following measures are taken to ensure the water blocking performance of the cable:
Single steel wire used as the central strength member
A special water-blocking filling compound in the loose tube
100% cable core filling APL moisture barrier
Application:
The products are especially applicable for the installation in the freshwater and shallow water area. It doesn’t need the junction,
and can be used for the wiring under the water with shorter communication distance .The water-blocking materials are distributed
into interstices of the cable core. An APL is longitudinally applied around the cable core, then covered with a PE inner sheath;
and the single/double layer of steel wires is applied over the PE inner sheath before a PE outer sheath is extruded over it.
Application: Duct/Direct buried

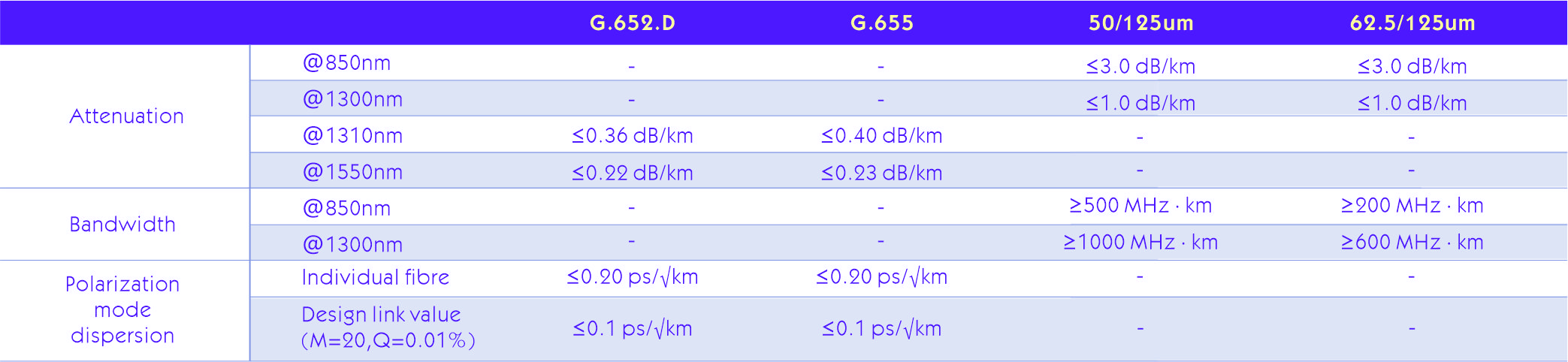

Characteristics:

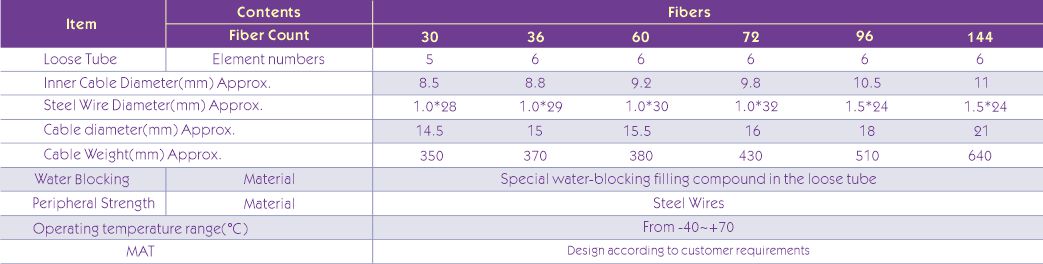

Technical Data:
✔ Other structure and fibre count are also available according to customer requirements.
✔ Cable diameter and weight in this table is typical value, which will ?uctuate according to different designs.
✔ Needs to be recalculated due to other climate conditions according to the installation area.

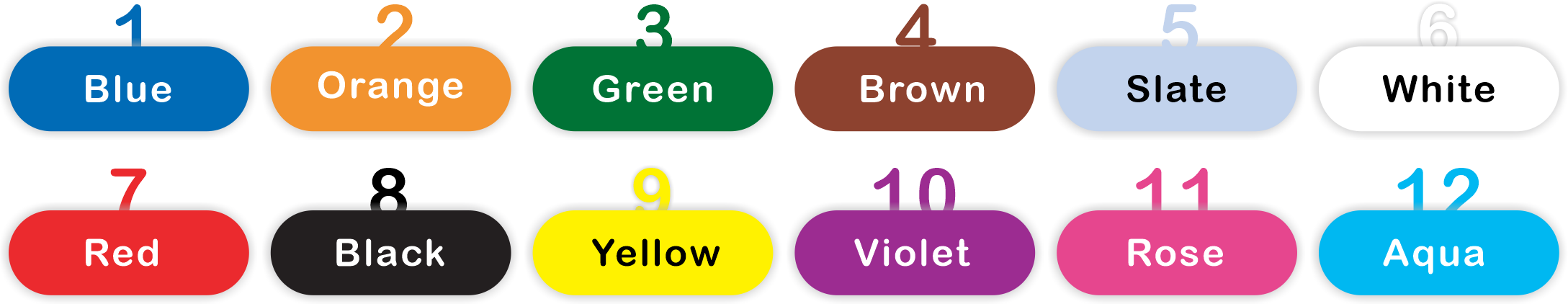

Fiber optic & Loose Tube Colors
