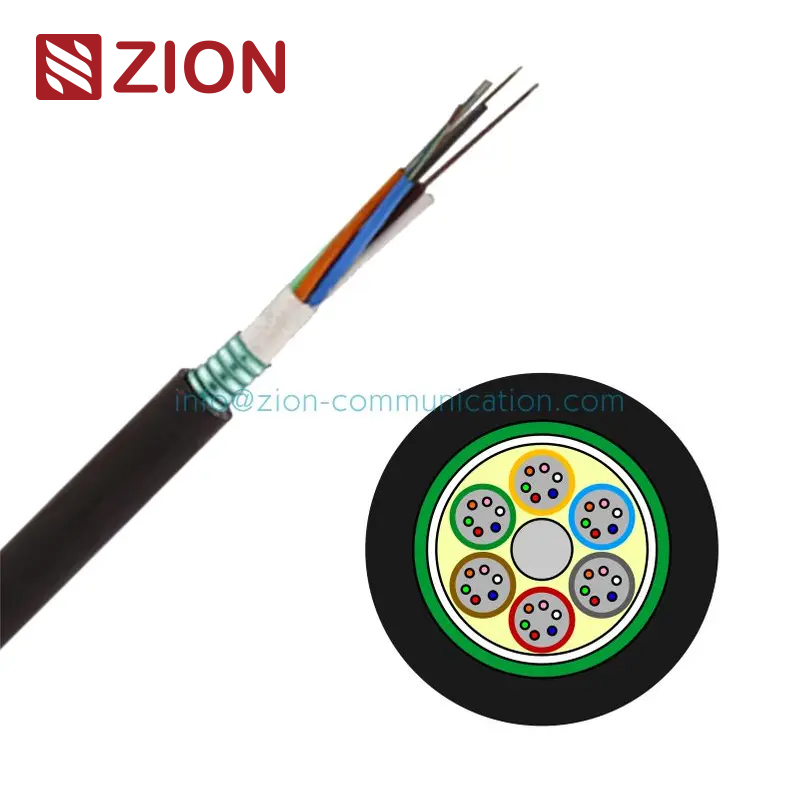

GYTS Stranded Loose Tube Light-armored Cable

• Loose Tube: thermoplastic material, containing optical fibers and filled with gel.


• Central Strength Member(CSM): phosphate steel wire.

• Armor: corrugated steel tape.

• Longitudinal Water Blocking Material: Water blocking tape.

• Cable Filling Compound.


• Outer Sheath: black polyethylene.

■ Description:

• Excellent mechanical and temperature performance guaranteed by the accurate excess fibre length

• Critical protection to fibres, based on the excellent hydrolysis resistance and strength performance of tube material and special filling compound filled in the tube

• Excellent crush resistance and flexibility

• Excellent ultraviolet prevention with PE sheath

• The following measures are taken to ensure the water blocking performance of the cable:

• Single steel wire used as the central strength member

• Special water-blocking filling compound in the loose tube

• 100% cable core filling

• PSP moisture barrier

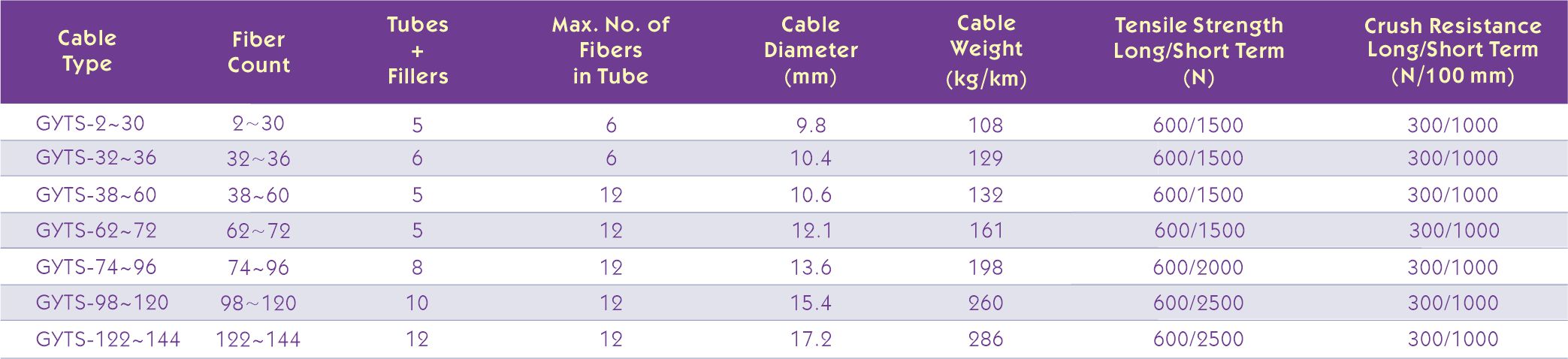

■ Technical Characteristics:

■ Standard:

ITU-T Rec. G.657A           IEC 60794          GR-409

ISO9001                     ICEA-596           YD/T 1997-2009

■ Environmental Characteristics:

• Transport/storage temperature: -40℃ to +70℃

• Compound flow: No filling compound or coating compound drop out of optical cable at 70℃

• Water penetration: No water comes out within 24 hours after 1m water head is applied to the entire cross section of 3m long optical cable
