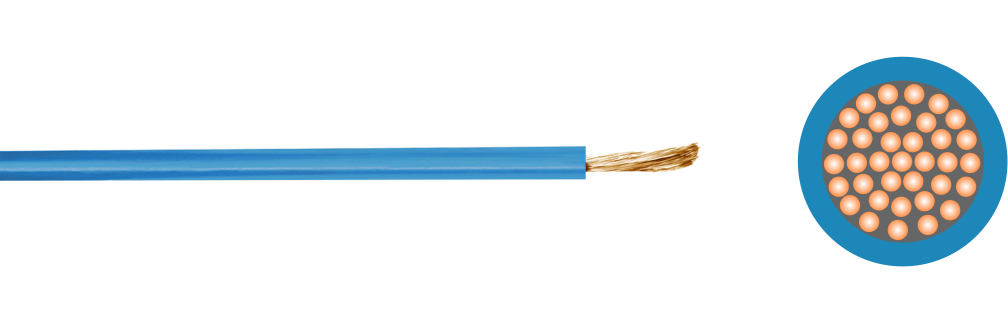

H03S-K Cable

Silicone 180℃ Cable
H03S-K Cable

Application:

Cable Standards:

Single-core non-sheathed electric cables with silicone insulation. These cables are suitable for electric connexion for fixed installations in places with high temperatures, such as ovens or electric cookers.

EN 50525-2-41, EN 60228,

EN 50363-1, IEC/EN 60724,

Product Description:

Conductor

Class 5 Flexible Bare or Tinned Copper

Insulation

Silicone Rubber

Characteristics:

Voltage Rating Uo/U

300V/300V

Test Voltage

2kV

Temperature Rating

Operating: -60ºC to +180ºC

Maximum Short Circuit Temperature: 350ºC (Max. 5 seconds)

Minimum Bending Radius

5 x overall diameter

Core Identification:

Black

Blue

Brown

Grey

Orange

Pink

Red

Turquoise

Violet

White

Green

Yellow

Green/Yellow

Dimensions:

Zion Code

No. Of
Cores

Nominal Cross Sectional Area (mm²)

Nominal Thickness Of Insulation
(mm)

Nominal Overall Diameter
(mm)

Nominal Weight
(Kg/km)

H03S-K-005**

1

0.5

0.6

2.1

8.3

H03S-K-075**

1

0.75

0.6

2.4

11.5

H03S-K-10**

1

1

0.6

2.5

13.8

H03S-K-15**

1

1.5

0.7

3

19.3

H03S-K-25**

1

2.5

0.8

3.6

30.8

Electrical Characteristics:

Nominal Cross Sectional Area (mm²)

Resistance At 20ºc Ohms/km

Rb

Sn

0.5

39.00

40.10

0.75

26.00

26.70

1

19.50

20.00

1.5

13.30

13.70

2.5

7.98

8.21

Colour Identification:

BK

BL

BR

GR

OR

PK

TQ

VI

WH

GN

GY

Black

Blue

Brown

Grey

Orange

Pink

Turquoise

Violet

White

Green

Green/Yellow
