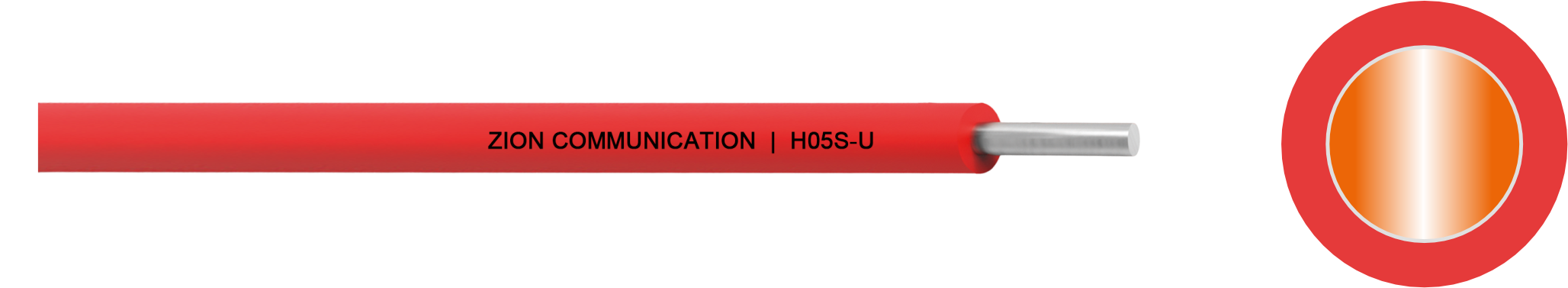

SIA (H05S-U) Cable

Silicone 180℃ Cable
SIA (H05S-U) Cable

Application:

Cable Standards:

Designed for use in environments where sustained heat resistance is required, SIA cables have heat resistant properties up to 180°C and can also be employed at temperatures as low as -60°C. These cables are low smoke zero halogens and are suitable for power plants, a wide range of industrial applications in processing, packaging, refrigeration, foundries, aircraft construction, and shipbuilding.

EN 50525-2-41, IEC/EN 60228

Product Description:

Conductor

Class 1 solid tinned copper conductor

Insulation

Silicone Rubber

Characteristics:

Voltage Rating Uo/U

SIA: 300/500V

10mm2 and above: 0.6/1kV

Temperature Rating

Fixed: -60°C to +180°C

Minimum Bending Radius

Fixed: 4 x overall diameter

Core Identification:

Black

Blue

Brown

Grey

Orange

Pink

Red

Turquoise

Violet

White

Green

Yellow

Green/Yellow

Dimensions:

Solid Core Silicone Rubber Insulated Cable (SIA)

Zion Code

No. Of
Cores

Nominal Cross Sectional Area (mm²)

Nominal Thickness Of Insulation
(mm)

Nominal Overall Diameter
(mm)

Nominal Weight
(Kg/km)

SIA005**

1

0.5

0.6

2

10

SIA0075**

1

0.75

0.6

2.2

12

SIA010**

1

1

0.6

2.3

15

SIA015**

1

1.5

0.6

2.6

20

SIA025**

1

2.5

0.7

3.2

31

SIA040**

1

4

0.8

3.9

48

SIA060**

1

6

0.8

4.4

67

SIA10**

1

10

1

5.6

108

Conductors:

Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables

Nominal Cross Sectional Area (mm²)

Maximum Resistance Of Conductor At 20ºC Ohms/km

Circular, Annealed Copper Conductors, Metal-Coated Wires

0.5

36.70

0.75

24.80

1

18.20

1.5

12.20

2.5

7.56

4

4.70

6

3.11

10

1.84

Current Carrying Capacity:

Solid Core Silicone Rubber Insulated Cable (SIA)

Nominal Cross Sectional Area (mm²)

Current Rating In Air Amps

at 30ºC

at 60ºC

at 90ºC

at 120ºC

at 150ºC

0.5

24

21

17

14

9

0.75

30

26

22

17

11

1

36

31

26

20

13

1.5

45

39

33

26

17

2.5

61

53

45

55

23

4

81

71

60

47

31

6

105

92

77

60

39

10

146

128

107

84

55
