HD40
hellosignal
7100525
Coaxial Cable
75 ohm
UL, ETL, CE, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
30KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight

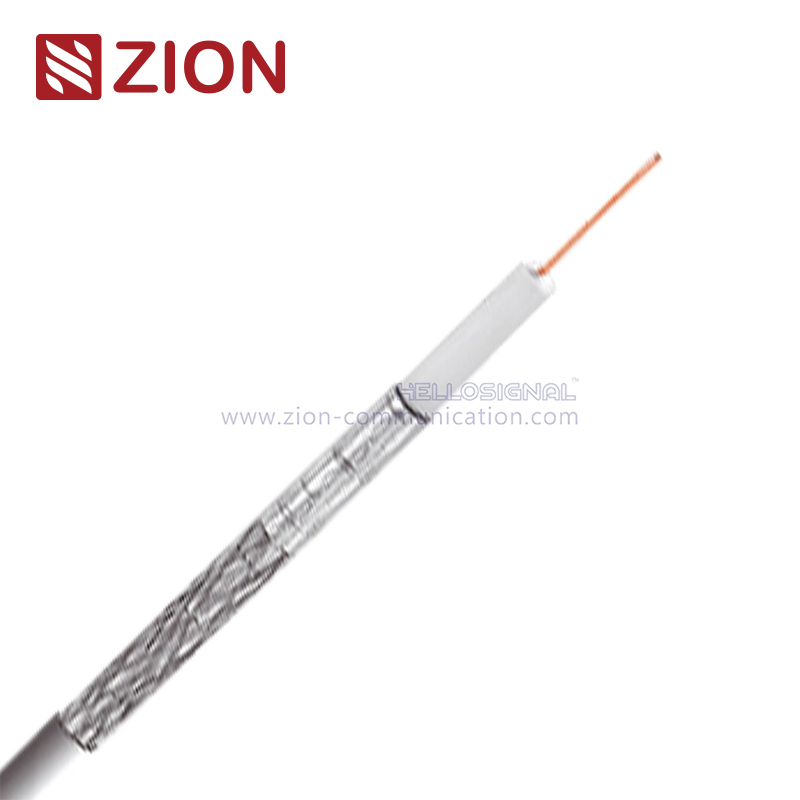

75 Ohm CATV coaxial Cable NO.7100525 | ||
Construction Parameters: | ||
Inner Conductor | 0.42mm Copper | |
Dielectric | 1.9mmmm Foamed PE | |
Shield 1 | Aluminum PET Aluminum | |
Shield 2 | Aluminum braid wire 70% coverage | |
Jacket | 3.60±0.10mm PVC | |
Application | For Use in Longer CATV Run Lengths | |
Electrical Characteristics: | ||
Inner Conductor Resistance | 125 Ω/km | |
Capacitance | 55 ±3 pF/m | |
Impedance | 75 ± 3 Ω | |
Return loss | between 5 and 3000MHz: > 18dB | |
Velocity of Propagation | 0.82 | |
Sparker Test (VAC) | 2.50 KV | |
Mechanical and Envrionmental Properties | ||
Cable bend radius | 10 times the cable diameter | |
Operating Temp Range | -20 ℃ to 60℃ | |
Cable diamensions | 3.6±0.15mm PVC | |
Cross Section | ||
| ||
Attenuation(20℃): | ||
Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
2 | 2.40 | |
3 | 2.90 | |
4 | 3.40 | |
5 | 3.80 | |
200 | 21.20 | |
862 | 45.10 | |
Order Informations: | ||
Marking | HELLOSIGNAL HD40 E PVC CATV COAXIAL CABLE 7100525 ×××M/FT | |
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |
Delivery time | Normally 25 days after received the deposit. | |
Brand | HELLOSIGNAL® OR OEM | |
