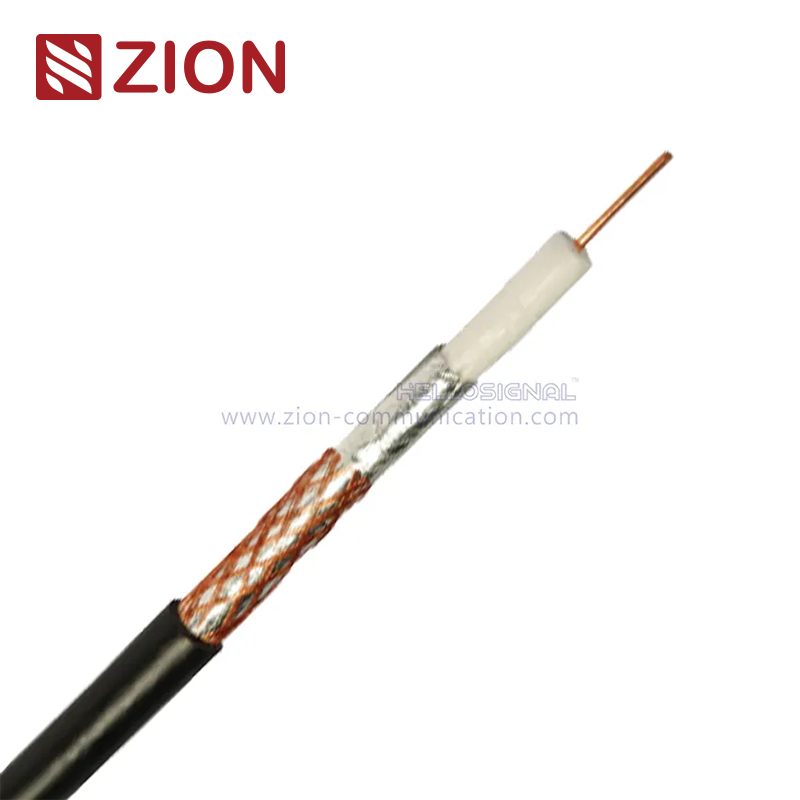

HD40 LSZH 75 Ohm CATV coaxial Cable

Construction Parameters:

Inner Conductor

0.42mm Copper

Dielectric

1.9mmmm Foamed PE

Shield 1

Aluminum PET Aluminum

Shield 2

TC braid wire 70% coverage

Jacket

3.60±0.10mm LSZH

Application

For Use in Longer CATV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance

125 Ω/km

Capacitance

55 ±3 pF/m

Impedance

75 ± 3 Ω

Return loss

between 5 and 3000MHz: > 18dB

Velocity of Propagation

0.82

Sparker Test (VAC)

2.50 KV

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃

Cable diamensions

3.6±0.15mm LSZH

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

2

2.40

3

2.90

4

3.40

5

3.80

200

21.20

862

45.10

Order Informations:

Marking

HELLOSIGNAL HD40 LSZH

CATV COAXIAL CABLE 7100524 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
