HELLOSIGNAL Z-SERVO PVC flexible,screened control cable for servo motorencoder

▉ Application

This cable apply to power supply and brake system of servo motor.
This cable has ideal outside diameter and
apply to smaller bending radius for drag chain.

▉ Cable Construction

Conductor:high bending strength ultra-fine stranded copper conductor

Insulation:flexible heat resistant PVC insulation

Inner jacket:flexible PVC

Shield:high strength tinned copper braid,shield coverage≥85%

Out jacket:high strength oil and heat resistant PVC(Grey)

▉ Product Feature

Very good oil resistance

High property of tensil and bending strength

Power transmission

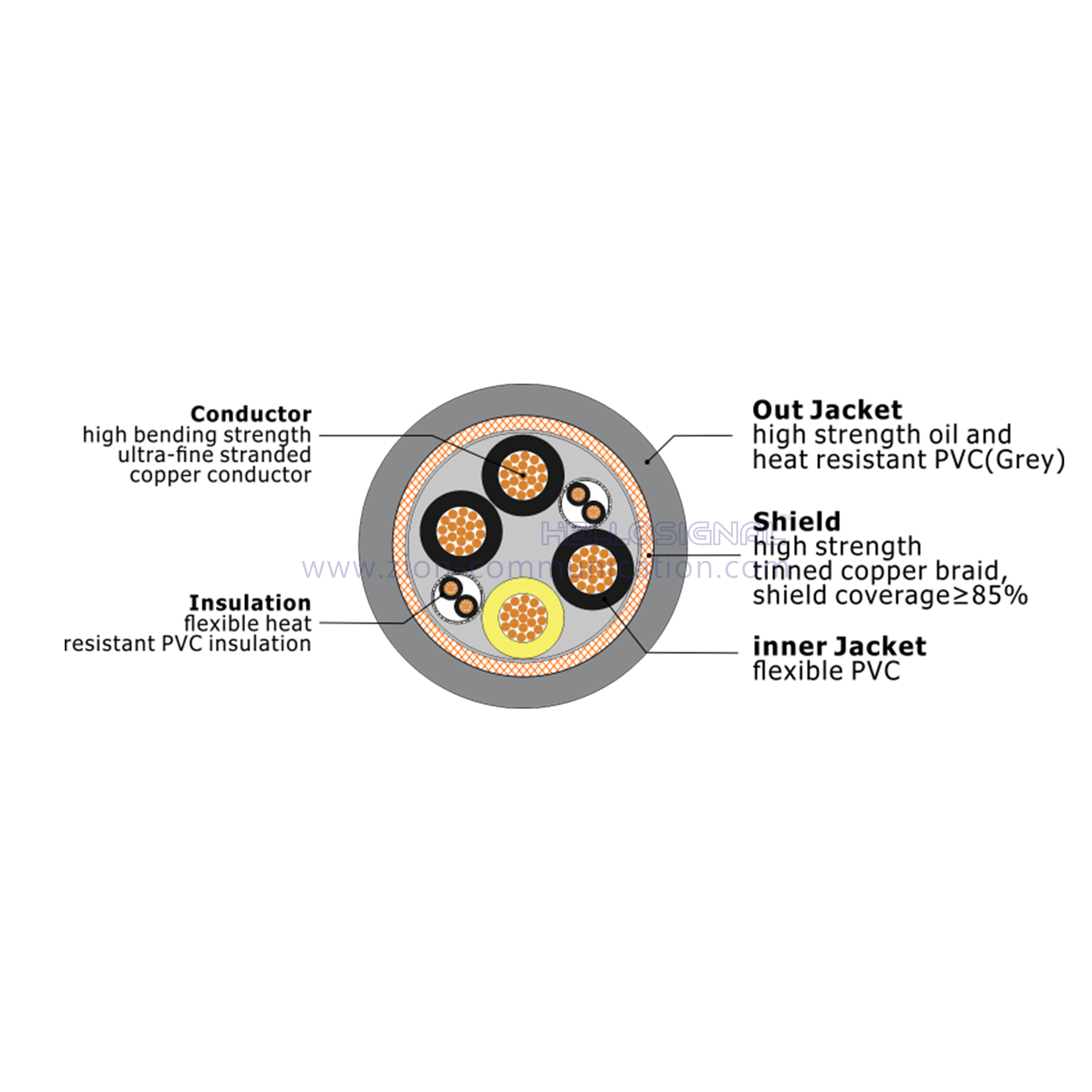

▉ Cross Section

▉ Technical data

Temperature range

Bend:  -5℃ to 105℃

Static: -40℃ to 105℃

Rated voltage

UL/CSA    600V

IEC/VDE   450/750V

Insulation resistance

20℃≥10M ohm/km

Min bending radius

Fixed:    5D(D=cable diameter)

Moving: 7.5(D=cable diameter)

▉ Product List

Item No.

Spec.(core*Nominal cross-section)
mm²

Nominal
OD(mm)

Copper.weight approx (kg/km)

Weight approx(kg/km)

7146030

(4G*0.75+(2*0.5)D)D

10.1

74

157

7146031

(4G*1.5+(2*1.5)D)D

11.8

137

244

7146032

(4G*2.5+(2*1.5)D)D

13.2

178

310

7146033

(4G*4.0+(2*1.5)D)D

16

262

448

7146034

(4G*6.0+(2*1.5)D)D

17.5

344

558

7146035

(4G*10+(2*1.5)D)D

21.4

514

843

7146036

(4G*16+(2*1.5)D)D

24.2

782

1176

7146037

(4G*25+(2*1.5)D)D

28.3

1151

1694

7146038

(4G*35+(2*1.5)D)D

32.6

1536

2246

7146039

(4G*0.75+2*(2*0.34)D)D

11.3

93

145

7146040

(4G*1.0+2*(2*0.75)D)D

12.7

128

242

7146041

(4G*1.5+2*(2*1.5)D)D

14.7

194

344

7146042

(4G*2.5+2*(2*1.5)D)D

15.2

233

392

7146043

(4G*4.0+2*(2*1.5)D)D

17.9

320

532

7146044

(4G*6.0+2*(2*1.5)D)D

19.2

401

639

7146045

(4G*10+2*(2*1.5)D)D

22.9

575

927

7146046

(4G*16+2*(2*1.5)D)D

25.6

841

1256

7146047

(4G*25+2*(2*1.5)D)D

30.8

1211

1842

7146048

(4G*35+2*(2*1.5)D)D

32.6

1584

2288

▉ Order Informations

Marking

HELLOSIGNAL Z-SERVO PVC flexible,screened control cable
for servo motorencoder XXXFT/M

Package

100M/Reel, 300M/Wooden Spool

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
