1. Start with the Equipment Limits

Obtain the exact OLT and ONT data sheets. Record:

• Transmitter output range
• Receiver sensitivity
• Receiver overload level
• Optical class
• Maximum permitted channel loss
• Minimum permitted channel loss, if specified
• Operating wavelengths
• Supported split ratios and reach

Do not substitute a generic GPON or XGS-PON number for the selected equipment. ITU-T G.984.2 defines GPON physical-layer requirements, while ITU-T G.9807.1 defines XGS-PON. The project must still follow the vendor's approved optical class and deployment rules.

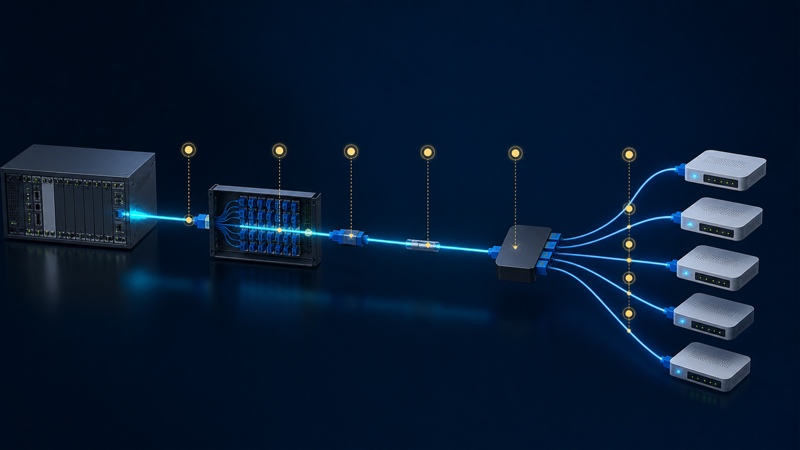

2. Use a Component-Based Formula

The design loss can be expressed as:

Total design loss = fiber loss + connector loss + splice loss + splitter loss + other passive-device loss + engineering margin

For multiple segments or devices:

Total design loss = Σ(length × attenuation coefficient) + Σ(mated-pair loss) + Σ(splice loss) + Σ(splitter loss) + Σ(other loss) + margin

Use maximum guaranteed component values for design. Typical values can be useful for troubleshooting expectations, but they should not silently replace maximum specifications.

3. Calculate Fiber Attenuation

For each segment:

Fiber loss = route length in kilometers × specified attenuation in dB/km

Use the applicable wavelength and cable specification. Include:

• OLT room to ODF routing
• Feeder cable
• Interbuilding or riser segments
• Distribution fiber
• Final ONT drop or patch cord
• Planned service loops when they materially affect length

Fiber attenuation is often smaller than splitter loss in a short enterprise POL, but it should never be omitted—especially on campuses or outdoor routes.

4. Count Every Mated Connector Pair

A mated pair exists wherever two connectors meet through an adapter or device interface. Typical locations include:

• OLT optical port
• ODF front adapter
• Connectorized splitter input
• Splitter outputs
• Floor distribution terminal
• Fiber outlet
• ONT optical port

The design worksheet should distinguish connectors from fusion splices. It should also record APC versus UPC interfaces. APC and UPC connectors should not be mated together.

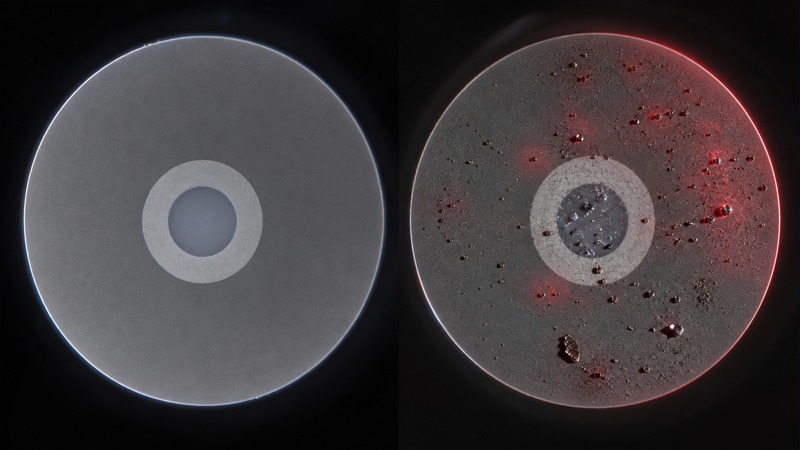

Connector cleanliness affects real loss and reflectance. Fluke Networks recommends inspecting and cleaning connectors before testing because contamination can create loss and damage interfaces.

5. Count Fusion and Mechanical Splices

Splices can appear in:

• ODF trays
• Cable transition enclosures
• Floor or zone terminals
• Splice-in splitter trays
• Restoration joints

Use the project acceptance value per splice, not an assumed ideal result. If the design may require a future restoration splice, include an allowance rather than consuming the full budget on day one.

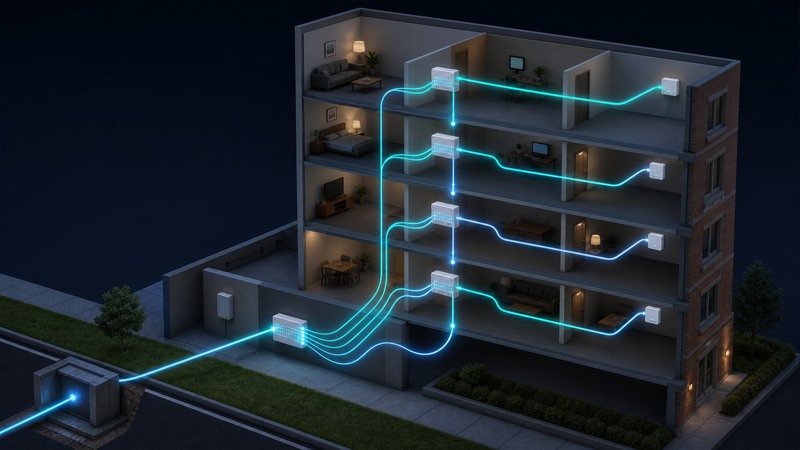

6. Add Splitter Loss

Splitter loss is normally the largest single contribution in a POL channel. The ideal division of optical power produces a theoretical splitting loss, while the actual component adds excess loss and variation.

For design purposes, use the maximum insertion-loss value on the approved splitter specification. For cascaded splitting, add the loss of every splitter traversed by that ONT path.

Example path:

OLT → 1×4 splitter → 1×8 splitter → ONT

The calculation includes the maximum loss of both splitters plus all connectors and splices around them. It is not enough to describe the final architecture as “1×32.”

Fluke Networks' splitter-testing guidance explains that balanced splitter ports should be tested against allowed loss limits and that inspection remains essential for reliable measurements.

7. Include Other Passive Devices

Depending on the migration or service plan, the channel may also include:

• Coexistence elements
• Wavelength filters
• WDM modules
• Monitoring couplers
• Attenuators
• Special patch modules

Each device needs a maximum loss value at the relevant wavelengths. Never hide these components inside “engineering margin.”

8. Add Engineering Margin

Margin provides room for aging, repairs, measurement uncertainty and future work. It should be a defined project value, not the unspent remainder of the optical class.

Consider:

• One future repair splice
• Connector aging and repeated mating
• Environmental variation
• Measurement uncertainty
• Additional patching approved for operations
• Planned coexistence devices

The margin should remain visible in the worksheet so value engineering cannot remove it without review.

9. Example Calculation Method

The following is an illustrative method, not a substitute for actual component data:

Calculate at least the worst-loss path. For distributed or cascaded systems, calculate representative shortest, longest and highest-loss paths. Also check the minimum-loss or receiver-overload condition if required by the active platform.

10. Convert the Budget into Procurement Requirements

The optical budget should control product specifications:

• Maximum splitter insertion loss
• Maximum connector loss
• Patch-cord loss grade
• Splice acceptance threshold
• Fiber attenuation limit
• Permitted number of connections
• Required margin
• Test wavelengths

Without these limits, a procurement team can buy individually compliant components that collectively exceed the approved channel loss.

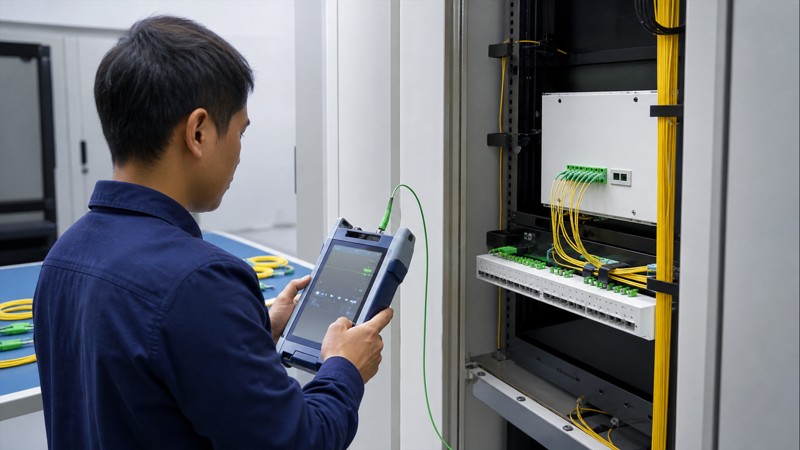

11. Verify the Installed Network

The APOLAN technical specification distinguishes channel testing through the splitter from link testing of infrastructure segments. It requires splitter loss to be included when link-only results are used to demonstrate end-to-end compliance.

A practical acceptance sequence is:

1. Inspect and clean all connectors.
2. Verify fiber identification and route documentation.
3. Test passive segments before connecting active equipment.
4. Measure end-to-end insertion loss with an OLTS using the approved method.
5. Use PON-aware OTDR testing where required to characterize events and splitters.
6. Compare measured values with the route-specific design budget.
7. Investigate unusual differences rather than simply checking a generic pass/fail limit.

An OTDR is useful for event location and characterization, but Fluke Networks notes that OTDR testing does not replace direct OLTS insertion-loss certification.

12. Common Calculation Errors

• Using typical instead of maximum component loss
• Treating cascaded splitters as one equivalent ratio
• Omitting OLT and ONT patch connections
• Forgetting coexistence filters
• Ignoring the minimum-loss condition
• Using one route length for every ONT
• Consuming the engineering margin during value engineering
• Assuming factory-tested assemblies require no installed-link testing
• Mixing APC and UPC interfaces
• Accepting a test result without connector inspection

Conclusion

A POL loss budget is both a design calculation and a procurement control. It should identify every event, use approved maximum values, preserve engineering margin and be verified by route-specific testing.

For ZION, the budget becomes a disciplined way to match cable, splitters, pigtails, adapters and patch cords to the approved OLT/ONT platform instead of supplying disconnected components.
