JB-H(St)H Fire alarm cable

Technical Data and Standards

Conductor:

Bare Copper, Solid

Conductor standard:

EN 60228 CI.1

Insulation:

LSZH T17

Insulation Standard:

DIN VDE 0207

Identification:

Colored DIN VDE 0815

Separator:

Polyester Foil

Drain Wire

Tinned Copper, Solid

Shield:

Aluminum/PET Foil

Out Jacket:

LSZH M1

※ J- Installation Cable | B-Fire alarm | H-LSZH insulation | (St)-Electrostatic Screen | H-LSZH Jacket

※ LSZH: Thermoplastic Halogen-free compound T17

COMPLIANCE （Reference Standard and Certificates)

· Conductor: EN 60228 CI.1 | Insulation: EN 50363-7  |  Jacket: EN50363-8

· Fire behaviour: IEC 60332.3/EN 60332-3

·  Halogen free: IEC 60574.1/EN50267-2-1 | Low Smoke emission: EN61034.2

Application Support

· These cables are designed for signal transmission in fire detection systems.

· For fixed installation on and under plaster,in dry and damp rooms
    but also in the open air for fixed installation on outer walls of buildings.

· Suitable for installation in public buildings (hospitals, theatres, ecc.).

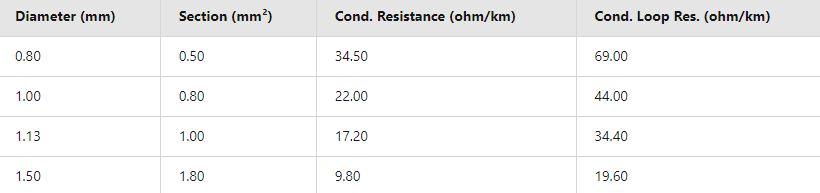

Technical Data of conductor

Diameter(mm)

0,80

1,00

1,13

1,50

Section(mm²)

0,50

0,80

1,00

1,80

Cond. Resistance (ohm/km)

34,50

22,00

17,20

9,80

Cond. Loop Res.(ohm/km)

69,00

44,00

34,40

19,60

Electrical Characteristics

Peak Operating Voltage

300 V

Operating Voltage Uo

500 V

Test Voltage

800 V

Insulation Resistance

＞100M ohm/km

PHYSICAL PROPERTIES

Bend Radius(Min)

10×OD of Jacket

Operating Temperature

-15 ℃ to 70 ℃

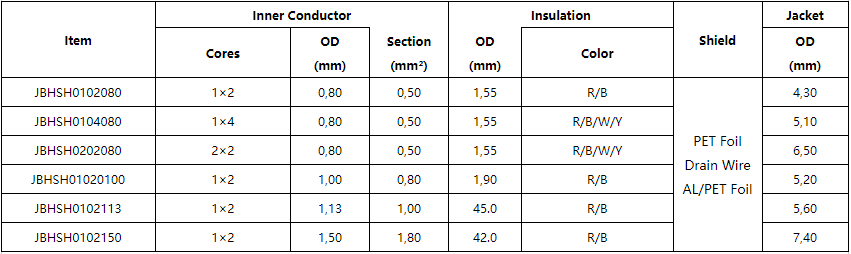

Construction

Item

Inner Conductor

Insulation

Shield

Jacket

Cores

OD
(mm)

Section
(mm²)

OD
(mm)

Color

OD
(mm)

JBHSH0102080

1×2

0,80

0,50

1,55

R/B

PET Foil
Drain Wire
AL/PET Foil

4,30

JBHSH0104080

1×4

0,80

0,50

1,55

R/B/W/Y

5,10

JBHSH0202080

2×2

0,80

0,50

1,55

R/B/W/Y

6,50

JBHSH01020100

1×2

1,00

0,80

1,90

R/B

5,20

JBHSH0102113

1×2

1,13

1,00

45.0

R/B

5,60

JBHSH0102150

1×2

1,50

1,80

42.0

R/B

7,40

※ R:RED  B:BLACK  W:WHITE  Y:YELLOW

※ Tolerance range for insulation and sheath diameter. Insulation: ±0,05mm | Jacket:±0,30 mm

Order Informations

Marking

HELLOSIGNAL JB-H(ST)H N×N×N Fire alarm Cable ...300M(or Per customer's request)

Inner Package

300m/Spool(or Per customer's request)

Outer Package

Carton, Pallet (or Per customer's request)

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
