JB-Y(St)Y Fire alarm cable

■ Technical Data and Standards:

Conductor: Bare Copper, Solid

Conductor Standard: EN 60228 CI.1

Insulation: PVC T12 (Y12)

Insulation Standard: DIN VDE 0207

Identification: Colored DIN VDE 0815

Separator: Polyester Foil

Drain Wire: Tinned Copper, Solid

Shield: Aluminum/PET Foil

Outer Jacket: PVC TM2 (YM2)

Fire Behavior: IEC 60332-1-2

■ Compliance (Reference Standards and Certificates):

Conductor: EN 60228 CI.1

Insulation: EN 50363-3

Jacket: EN 50363-4-1

Fire Behavior: IEC 60332-1-2

■ Application Support:

Signal Transmission: These cables are designed for signal transmission in fire detection systems.

Installation: Suitable for fixed installation on and under plaster, in dry and damp rooms, and also in the open air for fixed installation on the outer walls of buildings.

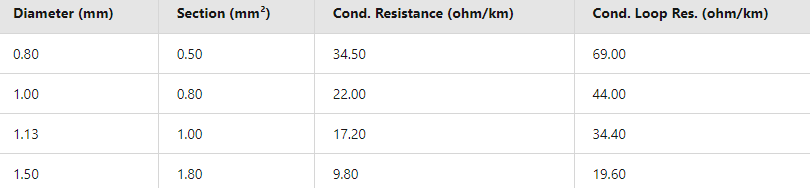

■ Technical Data of Conductor:



■ Electrical Characteristics:

Peak Operating Voltage: 300 V

Operating Voltage Uo: 500 V

Test Voltage: 800 V

Insulation Resistance: >100 MΩ/km

■ Physical Properties:

Bend Radius (Min): 10 × OD of Jacket

Operating Temperature: -15°C to 70°C

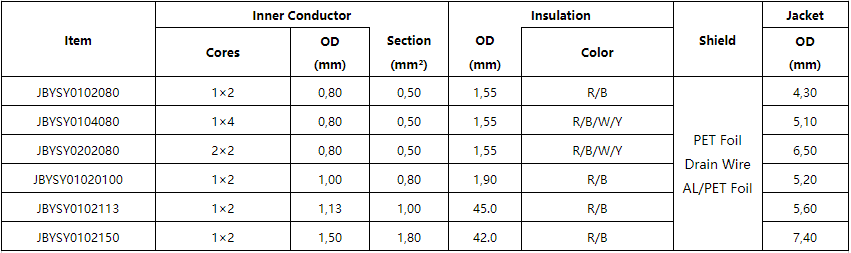

■ Construction:

※ R: RED  B: BLACK  W: WHITE  Y: YELLOW

※ Tolerance range for insulation and sheath diameter. Insulation: ±0,05mm | Jacket:±0,30 mm

■ Order Information:

Marking: HELLOSIGNAL JB-Y(ST)Y N×N×N Fire Alarm Cable ...300M (or per customer's request)

Inner Package: 300m/Spool (or per customer's request)

Outer Package: Carton, Pallet (or per customer's request)

Delivery Time: Normally 25 days after receiving the deposit

Brand: HELLOSIGNAL® or OEM
