MABFU Micro air-blown fiber unit Optic cable

Enhanced Performance Fibre Units (EPFU)
Air-blown Micro Optical Fibre Cables for C-NET

Micro air-blown fiber unit (MABFU)

■ Introduction:

MABFU is the important part of  the air blown fibre cable, and it is the most popular product of the indoor optical fibre cables for generic cabling in Europe、Japan 、South Korea and so on.
The MABFU is the product that with small diameter, lightweight, highly flexibility and proper stiffness, and it can be blown into the microduct of 5.0/3.5mm. The fibres are coated with a soft acrylate resin which provides excellent dimensional and thermal stability to cushion the fibres, in addition, the resin can be easily stripped in connecting the fibres. The outer sheath is a thermoplastic that is of low friction.
The surface of the sheath is designed with special grooves, compared to the surface of the traditional optical fibre cable, it provides not only the high level of mechanical protection, but also the perfect blowing performance.

■ Features and Benefits:

• 2、4、6、8 and 12 fibres options.


• Stable structure, good mechanical and temperature performance.


• Designed with special grooves to advance blowing distance.


• Lightweight and proper stiffness , repeat installation.


• Designed with no gel, easy stripping and handling.


• Better costs advantage compared to traditional product.


• Complete accessories, less manpower, lower installation time.

■ Standards:

Unless otherwise specified in this specification, all requirements shall be mainly in accordance with the following standard specifications.

Optical Fibre:ITU-T G.652、G.657 IEC 60793-2-50

Optica Cable:IEC 60794-1-2、IEC 60794-5

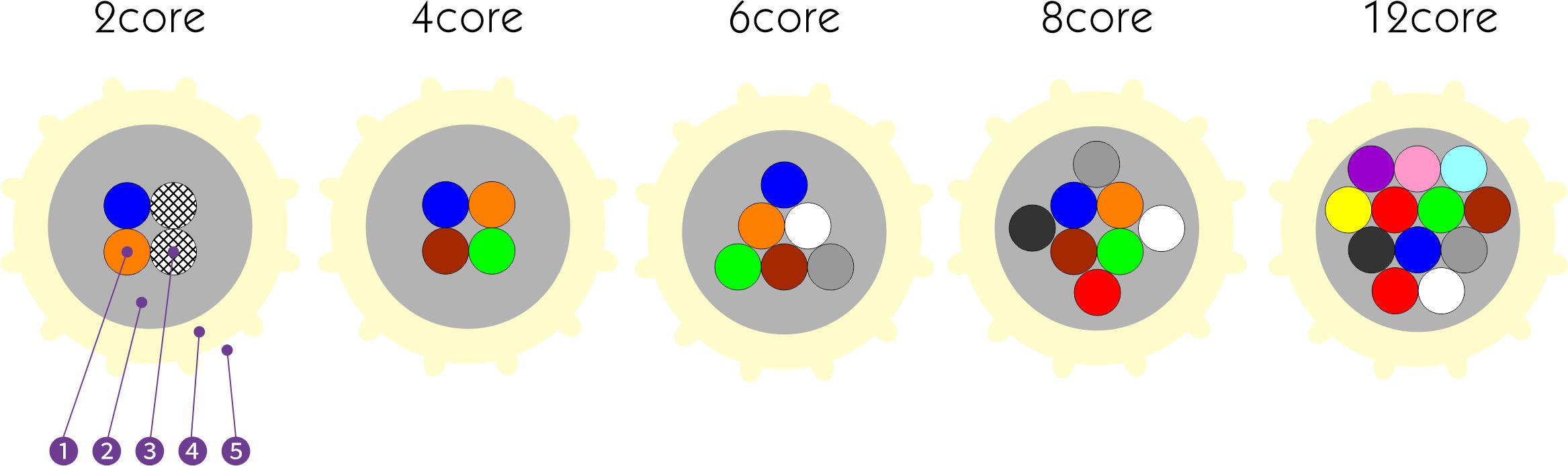

■ Cross Section:



1.Optical Fibre       2.Resin      3.+2"Filled" Fibress      4.Low Friction Sheath     5.Groove

■ Basic Performance:

Fiber Count and Specifications for Single Core Tight Wrapped Indoor Optical Cable (GJFJH 1×n)

Fiber Count and Outer Diameter

· 2 Fibers:

Outer Diameter: 1.15 ± 0.05 mm

· 4 Fibers:

Outer Diameter: 1.15 ± 0.05 mm

· 6 Fibers:

Outer Diameter: 1.35 ± 0.05 mm

· 8 Fibers:

Outer Diameter: 1.15 ± 0.05 mm

· 12 Fibers:

Outer Diameter: 1.65 ± 0.05 mm

Weight

· 2 Fibers: 1.0 g/m

· 4 Fibers: 1.0 g/m

· 6 Fibers: 1.3 g/m

· 8 Fibers: 1.8 g/m

· 12 Fibers: 2.2 g/m

Minimum Bend Radius

· 2 Fibers: 50 mm

· 4 Fibers: 50 mm

· 6 Fibers: 60 mm

· 8 Fibers: 80 mm

· 12 Fibers: 80 mm

Temperature Requirements

· Storage: -30°C to +70°C

· Operation: -30°C to +70°C

· Installation: -5°C to +50°C

Cable Service Life

· Service Life: 25 years

Note: It is recommended that the structure of 2 fibres unit consist of 2 filled fibres, for it is proved that 2 fibres unit

with 2 filled fibres is better than the one with zero or one filled fibre in the blowing performance and the fibre stripping-ability

■ Testing parameter:

Fibre Unit Attenuation

Fibre Type：SM G.652D、G.657

Attenuation：0.40dB/km max @1310nm；0.30dB/km max @1550nm

Blowing Test and Mechanical and Environmental Performance of Single Core Tight Wrapped Indoor Optical Cable (GJFJH 1×n)

Blowing Test

Fibre Count

· 2 Fibres

· 4 Fibres

· 6 Fibres

· 8 Fibres

· 12 Fibres

Test Equipment

· PLUMETTAZ: UM25

· ERICSSON: F

· CATWAY: FBT-1.1

Standard Duct

· Diameter: 5.0/3.5 mm

Pressure

· 7 bar / 10 bar

Typical Blowing Distance

· 2 Fibres: 500m / 1000m

· 4 Fibres: 500m / 1000m

· 6 Fibres: 500m / 1000m

· 8 Fibres: 500m / 1000m

· 12 Fibres: 500m / 800m

Typical Blowing Time

· 2 Fibres: 10min / 18min

· 4 Fibres: 10min / 18min

· 6 Fibres: 12min / 18min

· 8 Fibres: 13min / 18min

· 12 Fibres: 15min / 18min

Mechanical Performance

Tension

· Standard: EN 18700 A1/501, IEC 60794-1-2-E1

· Parameters: Load is 1×W

· Test Results: Additional attenuation ≤0.05dB after test

Bend

· Standard: IEC 60794-1-2-E11A

· Parameters: Diameter 40mm × 3 turns, 5 cycles at 20°C

· Test Results: Additional attenuation ≤0.05dB after test

Crush

· Standard: IEC 60794-1-2-E3

· Parameters: 100 N, 60 seconds

· Test Results: Additional attenuation ≤0.05dB after test

Note: All optical testing was conducted at 1550 nm.

Environmental Performance

Temperature Cycle

· Standard: IEC 60794-1-2-F1

· Parameters: -30°C, +70°C, 2 cycles

· Test Results: Absolute attenuation ≤0.5dB/km during test, additional attenuation ≤0.1dB/km during and after test

Water Soak

· Standard: IEC 60794-5

· Parameters: 1000 hours in water, 18°C to 22°C (test after temperature cycle)

· Test Results: ≤0.07dB/km change compared to start value

Damp Heat Cycle

· Standard: IEC 60068-2-38

· Parameters: 25°C, 65°C, 25°C, 65°C, 25°C, -10°C, 25°C

· Test Results: Absolute attenuation ≤0.5dB/km during test, additional attenuation ≤0.1dB/km during and after test

Note: All optical testing was conducted at 1550 nm.



Enhanced Performance Fibre Units (EPFU) Air-blown Micro Optical Fibre Cables for C-NET

Micro air-blown fiber unit (MABFU)

Introduction:

MABFU is the important part of  the air blown fibre cable, and it is the most popular product of the indoor optical fibre cables for generic cabling in Europe、Japan 、South Korea and so on. The MABFU is the product that with small diameter, lightweight, highly flexibility and proper stiffness, and it can be blown into the microduct of 5.0/3.5mm. The fibres are coated with a soft acrylate resin which provides excellent dimensional and thermal stability to cushion the fibres, in addition, the resin can be easily stripped in connecting the fibres. The outer sheath is a thermoplastic that is of low friction. The surface of the sheath is designed with special grooves, compared to the surface of the traditional optical fibre cable, it provides not only the high level of mechanical protection, but also the perfect blowing performance.

Features and Benefits:

● 2、4、6、8 and 12 fibres options. ● Stable structure, good mechanical and temperature performance. ● Designed with special grooves to advance blowing distance. ● Lightweight and proper stiffness , repeat installation. ● Designed with no gel, easy stripping and handling. ● Better costs advantage compared to traditional product. ● Complete accessories, less manpower, lower installation time.

Standards:

Unless otherwise specified in this specification, all requirements shall be mainly in accordance   with the following standard specifications.

Optical Fibre:

ITU-T G.652、G.657 IEC 60793-2-50

Optica Cable:

IEC 60794-1-2、IEC 60794-5

Cross Section:

1,Optical Fibre       2,Resin      3,+2"Filled" Fibress      4, Low Friction Sheath     5, Groove

Basic Performance :

Fibre Count

2 Fibres

4 Fibres

6 Fibres

8 Fibres

12 Fibres

Outer Diameter (mm)

1.15±0.05

1.15±0.05

1.35±0.05

1.15±0.05

1.65±0.05

Weight (g/m)

1.0

1.0

1.3

1.8

2.2

Min Bend radius (mm)

50

50

60

80

80

Temperature

Storage：-30℃ ～ +70℃ Operation：-30℃ ～ +70℃ Installation：-5℃ ～ +50℃

Cable service life

25 years

Note: It is recommended that the structure of 2 fibres unit consist of 2 filled fibres, for it is proved that 2 fibres unit with 2 filled fibres is better than the one with zero or one filled fibre in the blowing performance and the fibre stripping-ability

Testing parameter :

Fibre Unit Attenuation

Fibre Type

SM G.652D、G.657

Attenuation

0.40dB/km max @1310nm

0.30dB/km max @1550nm

Blowing Test  :

Fibre Count

2 Fibres

4 Fibres

6 Fibres

8 Fibres

12 Fibres

Test equipment

PLUMETTAZ：UM25, ERICSSON：F, CATWAY：FBT-1.1

Standard duct

5.0/3.5 mm

Pressure

7bar / 10bar

Typical blowing distance

500m/1000 m

500m/1000 m

500m/1000 m

500m/1000 m

500m/800 m

Typical blowing time

10min/18min

10min/18min

12min/18min

13min/18min

15min/18min

Mechanical Performance :

Test

Standard

Parameters

Test Results

Tension

EN 18700 A1/501 IEC 60794-1-2-E1

Load is 1×W

Additional attenuation ≤0.05dB after test

Bend

IEC 60794-1-2--E11A

Diam 40mm×3turns 5 cycles at 20℃

Additional attenuation ≤0.05dB,after test

Crush

IEC 60794-1-2-E3

100 N, 60s

Additional attenuation ≤0.05dB,after test

All optical testing proceeded at 1550 nm

Environment Performance  :

Test

Standard

Parameters

Test Results

Temperature Cycle

IEC 60794-1-2-F1

-30℃, +70℃, (2 cycles)

Absolute attenuation ≤0.5dB/km,during test Additional attenuation ≤0.1dB/km, during and after test

Water Soak

IEC 60794-5

1000 hours in water, 18℃～22℃

(Test after temp cycle) ≤0.07dB/km Change compared to start value

Damp Heat Cycle

IEC 60068-2-38

25℃, 65℃, 25℃, 65℃, 25℃,-10℃, 25℃

Absolute attenuation ≤0.5dB/km,during test Additional attenuation ≤0.1dB/km, during and after test

All optical testing proceeded at 1550 nm

Fibre Color Code :

No.

1

2

3

4

5

6

Color

Blue

Orange

Green

Brown

Gray

White

No.

7

8

9

10

11

12

Color

Red

Black

Yellow

Violet

Pink

Aqua

Sheath Color:

● Yellow

Delivery Length :

Standard delivery lengths are 1000m, 2000m, 3000m, 4000m, 6000m with a tolerance of -0.5～+1%. For more options, please contact the customer service.

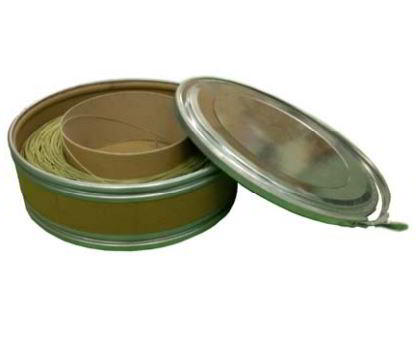

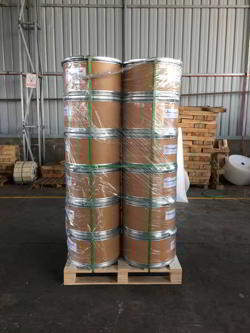

Packaging :

Free coiling in the pan.

Fibre Count

Length （m）

Pan Size Φ×H (mm)

Weight (Gross) (kg)

2～4 Fibres

2000 m

φ510 × 200

8

4000 m

φ510 × 200

10

6000 m

φ510 × 300

13

6 Fibres

2000 m

φ510 × 200

9

4000 m

φ510 × 300

12

8 Fibres

2000 m

φ510 × 200

9

4000 m

φ510 × 300

14

12 Fibres

1000 m

φ510 × 200

8

2000 m

φ510 × 200

10

3000 m

φ510 × 300

14

4000 m

φ510 × 300

15
