GCYFY Stranded Loose Tube Air-blown Micro Fiber Optic Cable

GCYFY

Stranded Loose Tube Air-blown Micro Fiber Optic Cable for

FTTH Metropolitan area Access networks

■ Introduction:

Optical fibres are housed in a loose tube that is made of high-modulus plastic and filled with tube filling compounds.Aramid yarns are placed outside the loose tube as the strength member, then a sheath with grooves is extruded. This type of cable is particularly applicable to air-blowing constructions in access networks.

■ Features:

Small size and light weight.

Tube filling compound providing key protection for fibres.

Unique design of sheath with grooves ensuring good air blowing performance.

Allowing to blow by phases to reduce initial investment.

High blowing speed up to 50m/min, and long blowing distance up to 1000m.

Allowing to blow out and replace with new cables to keep technical superiority.

Allowing to cut micro ducts anywhere anytime for branch without influences on other cables, saving manholes, hand holes and cable joints.

■ Performance Comparison of Air-blown Micro Cables:

Category and Characteristics of Different Cable Types

Enhanced Performance Fibre Unit (EPFU)

· Characteristics:

1. Small size

2. Light weight

3. Good bending performance

4. Suitable for indoor installation

· Blowing Effect: 3 Stars ***

· Application: FTTH

Uni-Tube Air-Blown Micro Cable (GCYFXTY)

· Characteristics:

1. Small size

2. Light weight

3. Good tensile and crush resistance

· Blowing Effect: 4 Stars ****

· Application:

· Power system

· Lighting-prone areas

Stranded Loose Tube Air-Blown Micro Cable (GCYFY)

· Characteristics:

1. High fibre density

2. High duct utilization

3. Much less initial investment

· Blowing Effect: 5 Stars *****

· Application:

· FTTH

· Metropolitan area

· Access networks

Summary of Cable Types

Enhanced Performance Fibre Unit (EPFU)

· Characteristics:

· Small size

· Light weight

· Good bending performance

· Suitable for indoor installation

· Blowing Effect: 3 Stars ***

· Application: FTTH

Uni-Tube Air-Blown Micro Cable (GCYFXTY)

· Characteristics:

· Small size

· Light weight

· Good tensile and crush resistance

· Blowing Effect: 4 Stars ****

· Application:

· Power system

· Lighting-prone areas

Stranded Loose Tube Air-Blown Micro Cable (GCYFY)

· Characteristics:

· High fibre density

· High duct utilization

· Much less initial investment

· Blowing Effect: 5 Stars *****

· Application:

· FTTH

· Metropolitan area

· Access networks

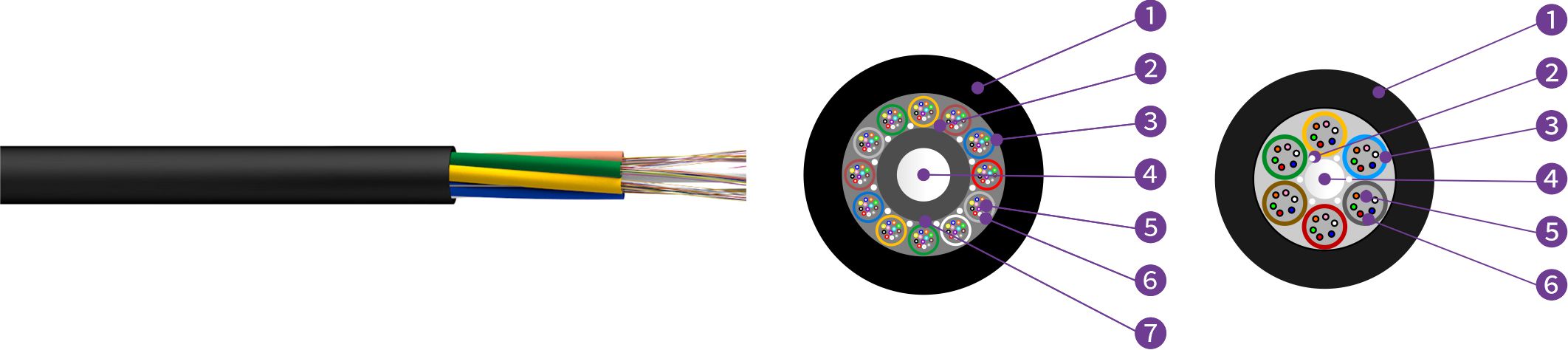

■ Cross Section:

1. PE Sheath   2. Water Blocking Yarn   3. Loose Tube   4. Strength Member  5. Fibre   6. Tube Filling Compound   7. PE Layer

■ Technical Characteristics:

Specifications of GCYFY Series Cables

GCYFY-12 G657A2

· Fiber Count: 12 (2 * 6)

· Diameter: 4.5 ± 0.1 mm

· Weight: 16 kg/km

· Tensile Strength: Long Term 0.3G, Short Term 1.0G

· Crush Resistance: Long Term 150 N/100mm, Short Term 500 N/100mm

GCYFY-24 G657A2 (4 * 6)

· Fiber Count: 24 (4 * 6)

· Diameter: 4.5 ± 0.1 mm

· Weight: 16 kg/km

· Tensile Strength: Long Term 0.3G, Short Term 1.0G

· Crush Resistance: Long Term 150 N/100mm, Short Term 500 N/100mm

GCYFY-36 G657A2

· Fiber Count: 36 (6 * 6)

· Diameter: 4.5 ± 0.1 mm

· Weight: 16 kg/km

· Tensile Strength: Long Term 0.3G, Short Term 1.0G

· Crush Resistance: Long Term 150 N/100mm, Short Term 500 N/100mm

GCYFY-24 G657A2 (2 * 12)

· Fiber Count: 24 (2 * 12)

· Diameter: 5.4 ± 0.1 mm

· Weight: 26 kg/km

· Tensile Strength: Long Term 0.3G, Short Term 1.0G

· Crush Resistance: Long Term 150 N/100mm, Short Term 500 N/100mm

GCYFY-48 G657A2

· Fiber Count: 48 (4 * 12)

· Diameter: 5.4 ± 0.1 mm

· Weight: 26 kg/km

· Tensile Strength: Long Term 0.3G, Short Term 1.0G

· Crush Resistance: Long Term 150 N/100mm, Short Term 500 N/100mm

GCYFY-72 G657A2

· Fiber Count: 72 (6 * 12)

· Diameter: 5.4 ± 0.1 mm

· Weight: 26 kg/km

· Tensile Strength: Long Term 0.3G, Short Term 1.0G

· Crush Resistance: Long Term 150 N/100mm, Short Term 500 N/100mm

GCYFY-96 G657A2

· Fiber Count: 96 (8 * 12)

· Diameter: 6.1 ± 0.1 mm

· Weight: 33 kg/km

· Tensile Strength: Long Term 0.3G, Short Term 1.0G

· Crush Resistance: Long Term 150 N/100mm, Short Term 500 N/100mm

GCYFY-144 G657A2 (12 * 12)

· Fiber Count: 144 (12 * 12)

· Diameter: 7.9 ± 0.1 mm

· Weight: 52 kg/km

· Tensile Strength: Long Term 0.3G, Short Term 1.0G

· Crush Resistance: Long Term 150 N/100mm, Short Term 500 N/100mm

GCYFY-192 G657A2 (16 * 12)

· Fiber Count: 192 (16 * 12)

· Diameter: 7.9 ± 0.1 mm

· Weight: 52 kg/km

· Tensile Strength: Long Term 0.3G, Short Term 1.0G

· Crush Resistance: Long Term 150 N/100mm, Short Term 500 N/100mm

GCYFY-216 G657A2 (18 * 12)

· Fiber Count: 216 (18 * 12)

· Diameter: 7.9 ± 0.1 mm

· Weight: 52 kg/km

· Tensile Strength: Long Term 0.3G, Short Term 1.0G

· Crush Resistance: Long Term 150 N/100mm, Short Term 500 N/100mm

GCYFY-288 G657A2 (24 * 12)

· Fiber Count: 288 (24 * 12)

· Diameter: 9.3 ± 0.1 mm

· Weight: 80 kg/km

· Tensile Strength: Long Term 0.3G, Short Term 1.0G

· Crush Resistance: Long Term 150 N/100mm, Short Term 500 N/100mm

GCYFY-144 G657A2 (6 * 24)

· Fiber Count: 144 (6 * 24)

· Diameter: 7.3 ± 0.1 mm

· Weight: 42 kg/km

· Tensile Strength: Long Term 0.3G, Short Term 1.0G

· Crush Resistance: Long Term 150 N/100mm, Short Term 500 N/100mm

GCYFY-192 G657A2 (8 * 24)

· Fiber Count: 192 (8 * 24)

· Diameter: 8.8 ± 0.1 mm

· Weight: 76 kg/km

· Tensile Strength: Long Term 0.3G, Short Term 1.0G

· Crush Resistance: Long Term 150 N/100mm, Short Term 500 N/100mm

GCYFY-288 G657A2 (12 * 24)

· Fiber Count: 288 (12 * 24)

· Diameter: 11.4 ± 0.1 mm

· Weight: 110 kg/km

· Tensile Strength: Long Term 0.3G, Short Term 1.0G

· Crush Resistance: Long Term 150 N/100mm, Short Term 500 N/100mm

GCYFY-432 G657A2 (18 * 24)

· Fiber Count: 432 (18 * 24)

· Diameter: 11.4 ± 0.1 mm

· Weight: 115 kg/km

· Tensile Strength: Long Term 0.3G, Short Term 1.0G

· Crush Resistance: Long Term 150 N/100mm, Short Term 500 N/100mm

GCYFY-576 G657A2 (24 * 24)

· Fiber Count: 576 (24 * 24)

· Diameter: 13.4 ± 0.1 mm

· Weight: 140 kg/km

· Tensile Strength: Long Term 0.3G, Short Term 1.0G

· Crush Resistance: Long Term 150 N/100mm, Short Term 500 N/100mm

Note: G is the weight of the optical cable per kilometer.

■ Environmental Characteristics:

Transport/storage temperature: -40℃~70℃

■ Applications:

The cab le can be used as the drop cable of feeder segments in FTTH networks and can be laid by air blowing to connect the branch point with the access point for subscribers. The cab le is also applicable in backbone networks, metropolitan area networks and access networks.

■ Delivery Length:

Standard length:2000m;Other length availabe
