MGXTW 4 Cores G.652D

Technical Parameters

Cable Code

MGXTW

Fiber Count

4

Cable Diameter

9.6 (mm)

Cable Weight

270(kg/km)

Tensile Strength Long/Short term

3000/8000(N)

Crush Resistance Long/Short term

1000/3000(N/100mm)

Bending Radius Static/Dynamic

10D/20D(mm)

Storage/Operating Temperature:-40℃to+70℃

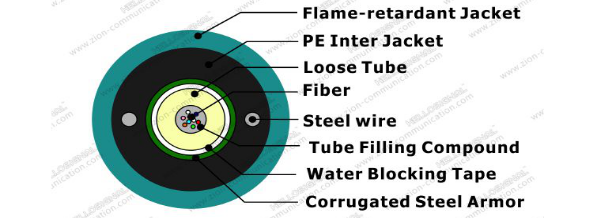

Cross Section

Description

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tube are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two side of the steel tape. The parallel steel wires are placed at the two sides tape. The cable is completed with a polyethylene(PE) sheath.

Characteristics

▶ Good mechanical and temperature performance.
▶ High strength loose tube that is hydrolysis resistant.
▶ Special tube filling compound ensure a critical protection of fiber.
▶ Crush resistance and flexibility.
▶ PSP enhancing moisture-proof.
▶ Two parallel steel wires ensure tensile strength
▶ Small diameter, light weight and friendly installation
▶ Long delivery length
▶  Application:duct/aerial

Standards

MGXTW cable complies with standard YD/T 769-2003

Order Informations

Marking

HELLOSIGNAL MGXTW 4 Cores G.652D xxxxM
(or Per customer's request)

Inner Package

2000m/Spool (or Per customer's request)

Outer Package

Pallet (or Per customer's request)

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL®  OR OEM
