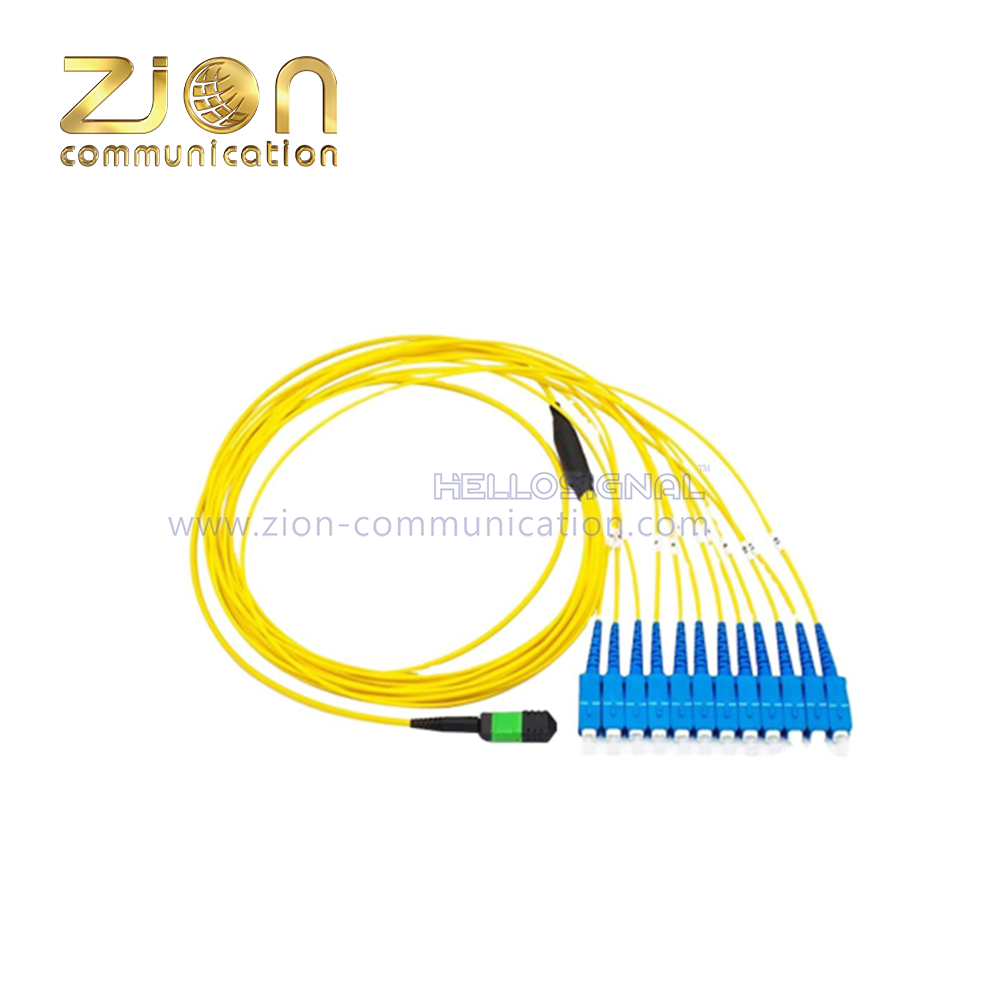

MPO Patch Cords

■ MPO/MTP Cable Solutions: Space-saving, High-Capacity Fiber Solution for Utility of Data Center Now.

 Why Choose Zion Communication MPO/MTP Cables?

✔ Specialization on MPO/MTP kinds of cables - all tailored for maximized technical efficiency.

✔ Direct from factory prices - facility for getting durable cables at a pocket-friendly price.

✔ Customization Available - custom-sized packaging and labeling.

✔ Quality Control to a large extent - all cables are tested under demanding conditions to ensure outstanding reliability.

Request Information Now

■ Understanding MPO vs. MTP Cables

What Are MPO/MTP Cables?

MPO (Multi-Fiber Push-On) and MTP® (Multi-Fiber Pull-Off) leads are high-density optical fiber solutions for data center, telecom networks, and enterprise projects. They provide multi-fiber connection in a single connector that supports 10G, 40G, 100G, and even 400G.



Key Differences: MPO vs. MTP

Feature	MPO Connector	MTP® Connector
Pin Clamp	Plastic	Metal (more durable)
Guide Pins	Chamfered (more debris)	Elliptical stainless steel (less debris)
Housing	Fixed	Removable (easier rework)
Spring Design	Standard	Oval spring (better fiber protection)
Performance	Standard	Enhanced optical & mechanical specs

 MTP® is an MPO derivative that has significantly improved performance characteristics, making it awesome.

Types of MPO/MTP Cables

Type	PIC	Description	Best For

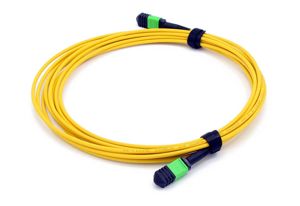

MPO/MTP Patch Cords		Short-length cables for rack connections	Data center cross-connects

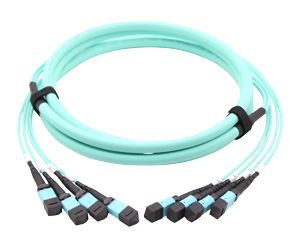

MPO/MTP Trunk Cables		Pre-terminated multi-fiber backbone cables	High-density cabling between racks

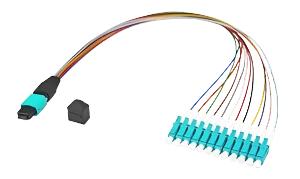

MPO/MTP Fan-Out Cables		Breakout into LC/SC/ST connectors	Connecting QSFP+ to SFP+ ports

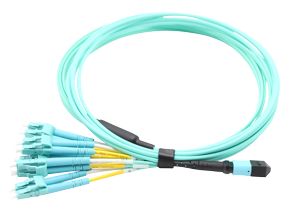

MPO/MTP Harness Cables		Transition from MPO to individual fibers	Equipment interfaces

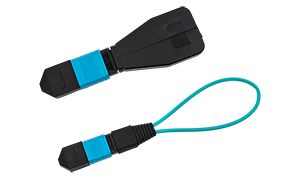

Loopback Cables		Self-connecting for testing	Network diagnostics



■ Applications

✅ Data Centers - Huge fiber connectivity of 40G/100G/400G.

✅ Fiber to the Building (FTTB) - Sustainable cable supply.

✅ Optical Equipment - Internal ones for transceivers.

■ Choosing Proper MPO/MTP Connections

Step-by-Step Selection Guide

Firstly, Validate What Type.

• Patch cord / Trunk cable / Fan-out cable / Harness / Loopback cable

Lay Out Parameters

• Fiber Type: Single-mode (SM) or Multimode (OM3/OM4/OM5)

• Fiber Count: 12, 24, 48, 72, 96, or 144 dense les

• Connector Gender: Male (it has pins) or Female (it doesn't)

• Polish Type: PC (UPC) or APC (angled retail) Single Mode, Flat Polish for Multimode

• Jacket Material: Low Smoke Zero Halogen (LSZH) versus Polyvinyl Chloride (PVC)

Attenuation Requirements

• Standard Loss (≤0.75dB for SM, ≤0.6dB for MM),

• Super Low Loss (≤0.35dB for both SM & MM)

 Packaging Preferences

• PE bag, blister box, cartons, and custom packaging

Get a Quote

Customize Your MPO/MTP Cable



■ Technical Specifications

Optical Performance Standards

Parameter	Single-Mode (APC)	Multimode (PC)
Insertion Loss (MPO)	≤0.75dB (Standard) / ≤0.35dB (Low Loss)	≤0.6dB (Standard) / ≤0.35dB (Low Loss)
Return Loss (MPO)	≥60dB	≥25dB
Durability	<0.3dB change after 200 matings
Operating Temperature	-40°C to +85°C



Connector Color Coding

Fiber Type	Connector Color	Boot Color
SM (APC)	Green (Standard) / Yellow (Low Loss)	Black
OM3/OM4 (PC)	Aqua / Heather Violet	Black





■ Quality Assurance

100% Factory Tested – Testing for IL/RL, polarity, and end-face checking.

Compliant with IEC/TIA Standards – High facilities for universal compatibility.

Durable Construction – Strength exceeds 70N, 500+ mating cycles.



Ready to Order?

Opt us for MPO/MTP cables made by design in accordance to your work-related necessities!
