Fiber Patch Cord
HELLOSIGNAL

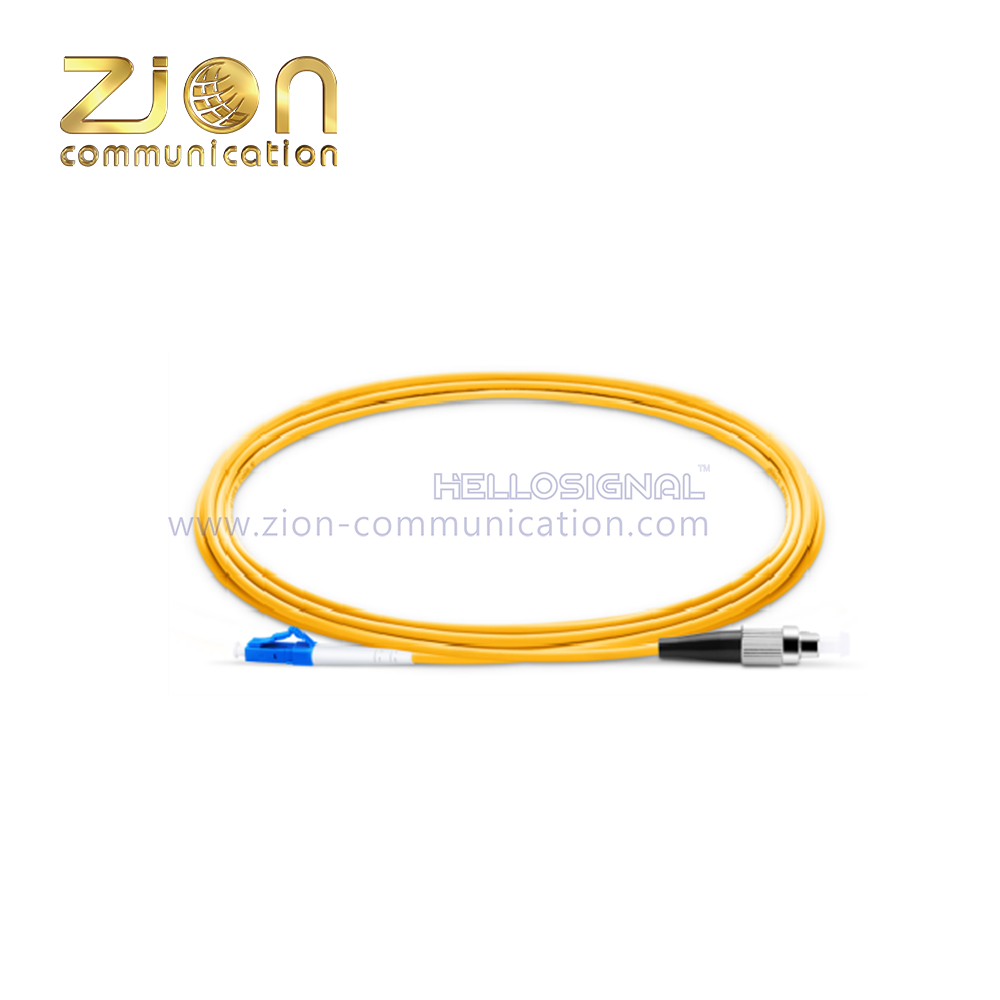

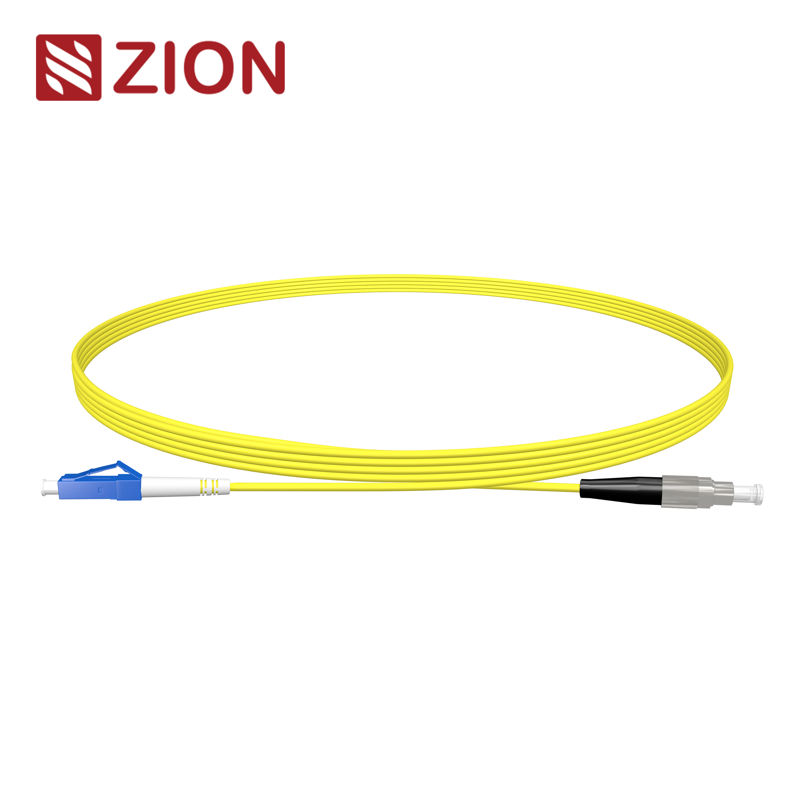

FC Patch Cord
Fiber System Equipment
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
Product Description
Fiber Patch Cord — FC Patch Cords | |||||||
|
| ||||||

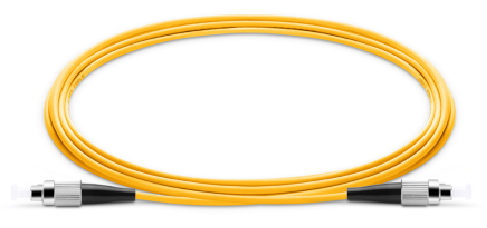

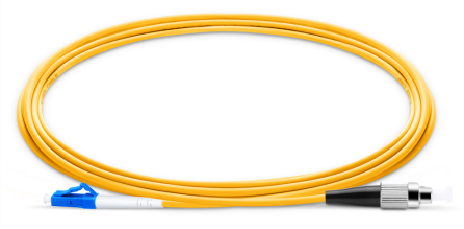

FC UPC OM1 SX | LC to FC UPC OM2 SX | ||||||
|
| ||||||

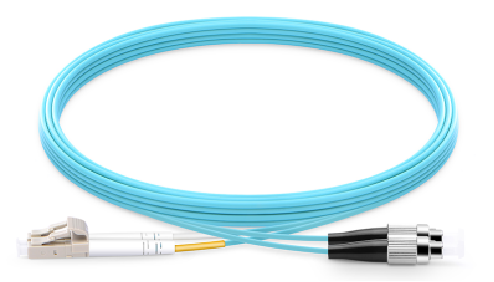

FC APC OM1 DX | LC to FC UPC OM3/OM4 SX/DX | ||||||
Structure information | |||||||
Cord | Patch Cord & Pigtall | ||||||
A Side | Connector Type | SC / LC / ST / FC / D4 / E2000 / MU···· | |||||
Ferrule Type | UPC | APC | |||||
B Side | Connector Type | SC / LC / ST / FC / D4 / E2000 / MU···· | |||||
Ferrule Type | UPC | APC | |||||
Fiber Model | SM | G652D | G657A1 | G657A2 | G657B3 | G655 | ····· |
MM | OM1 | OM2 | OM3-150 | OM3-300 | OM4-550 | OM5 | |
Cable Diameter | Φ0.9mm | Φ2.0mm | Φ3.0mm | ····· | |||
Core Number | SX | DX | ····· | ||||
Jacket | Material | PVC | LSZH | OFNR | RE | TPU | ····· |
Color | Yellow | Blue | Green | Customized | |||
Cable Length | 1m | 2m | 3m | 5m | 10m | ····· | |
Technical Specifcation | |||||||
Connector Type | FC / SC / LC / ST / D4 / E2000 / MU | ||||||
Fiber Type | SM | MM | |||||
Insertion Loss(Typic) | ≤0.2 dB | ≤0.2 dB | |||||
Insertion Loss(Max) | ≤0.3 dB | ≤0.3 dB | |||||
Return Loss | APC | ≥60 dB | ≥35dB | ||||
UPC | ≥50 dB | ≥35dB | |||||
Mating Durability | ≤0.2 dB | ||||||
Durability | ≥1000 times | ||||||
Operating Temperature (℃） | -20~85 | ||||||
Operating Temperature (℃) | -40~85 | ||||||
