Mini Coax +2×0.22

Construction Parameters:

  Coaxial Cable

Inner Conductor

7x0,20mm Ø Stranded  Copper

Dielectric

2,50mm Ø Solid PE

Shield 1

Al-Pes Tape /CU-Pes Tape

Shield 2

Aluminium Braid 70%

  Power Cores

Inner Conductor

2x0,22mm² (7×0.18mm CU ) Stranded Copper

Insulation

1.0mm PVC

  Overall Outer Sheath

5.5±0.2mm PVC Common RAL 7032 Grey

Electrical Characteristics:

Inner Conductor Resistance

The Max. at 20℃ shall be <   64.9  Ω/km

Capacitance

52 ±3 pF/m

Impedance

75 ± 3 Ω

Velocity of Propagation

0.82

Sparker Test (VAC)

3

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃

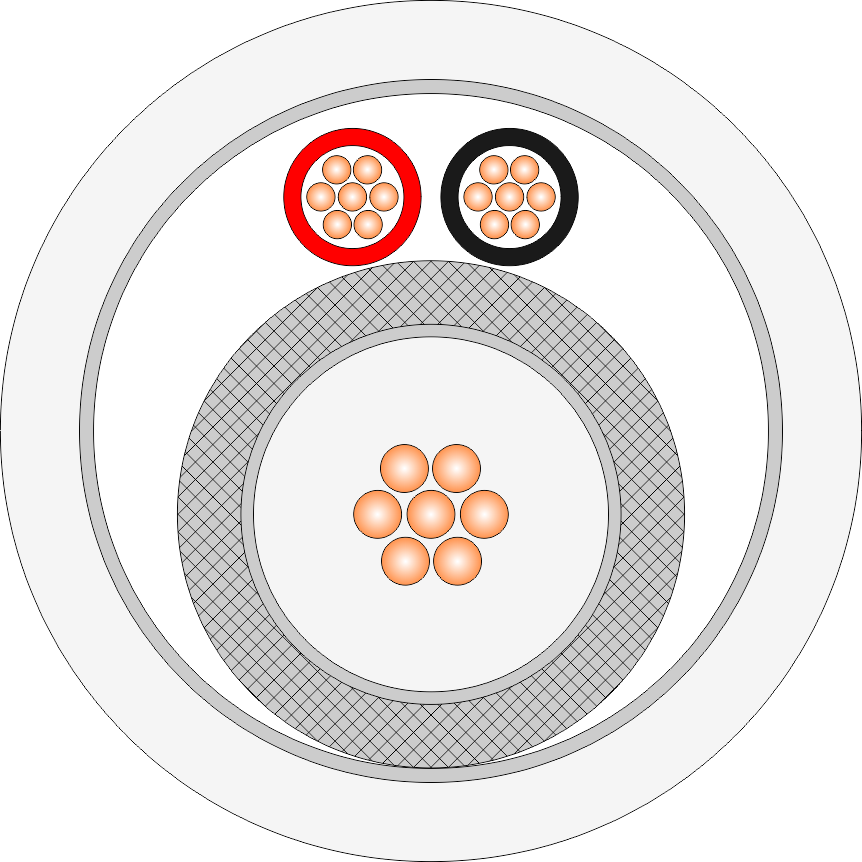

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation (dB/100m)

1

1.80

5

3.90

10

4.80

50

11.00

100

15.20

200

21.80

400

29.80

700

34.40

900

36.00

※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.

Order Informations

Marking

HELLOSIGNAL CCTV 2+1,MINI COAX + 2x 0,22 mm²
CCTV COAXIAL CABLE 7102171×××M

Package

100M,200M Roll, Spool

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL^® OR OEM
