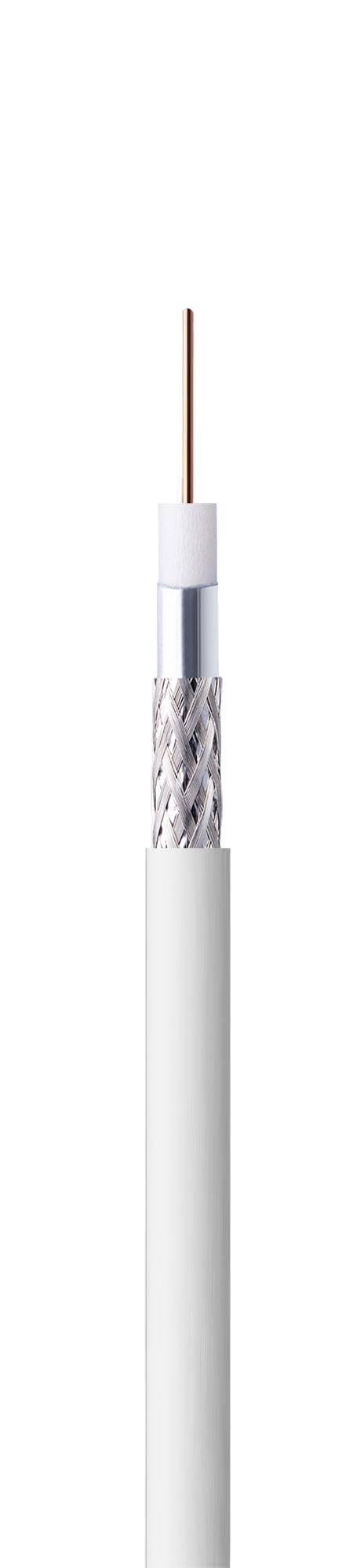

Mini RG59 SA Class A Eca

Key Information & Construction Parameters:

SKU：

7170301

Class CPR

Eca

Standards:

EN50117-9-2
CEI-UNEL 36762
EN50575

Inner Conductor Material

Plain Copper (Cu)

Inner Conductor Size

0.41 ± 0.02mm

Insulation Material

Foam Polyethylene(PEG)

Insulation Size

1.90 ± 0.10mm

Shield 1

Al/Pet/Al+Sur

Shield 2

Tinned Copper(CuSn) braiding wire

70% Coverage

Jacket

Material: PVC

OD: 3.60 ± 0.10mm

Color: White/Black or customerzied

Application

Indoor Installation

Electrical Characteristics & Physical Properties:

Characteristic impedance

200 MHz  75±3 Ohm

Capacitance (@1kHz)

55±3 pF/m

Velocity Ratio

82% Nom.

Inner conductor resistance

310 Ω/km

Outer conductor resistance

30 Ω/km

Loop resistance

340 Ω/km

Sheat Insulation voltage

2.5 kV

Maximum current (Ieff)

Structural Return Loss(SRL)

5 - 470 MHz

>25 dB

470 - 1000 MHz

>21 dB

1000 - 2000 MHz

>20 dB

2000 - 3000 MHz

>18 dB

Screening Attenuation(SA)
SA-Class A++

30 - 1000 MHz

>85 dB

1000 - 2000 MHz

>85 dB

2000 - 3000 MHz

>75 dB

Transfer Impedance

    5-30 MHz

＜ 10 mOhm/m

Min.Bending Radius

26/52 mm

Max. Cable Pulling Strength

90 N

Operating Temperature

-20 / +80 °C

Attenuation (at 20°C )

Frequency (MHZ)

Max Attenuation (dB/100m)

5

3.80

10

5.40

30

8.60

50

11.00

200

21.20

300

26.20

470

33.00

*The above data is for reference only, the actual order test report shall prevail.

Order Informations:

Marking

HANGZHOU ZION 7170301 75 OHM  Mini RG59 SA Class A Eca
EN50117-9-2 DDMMYY 001M-100M

Package

100M/Roll, 300M/WS (or Per customer's request)

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
