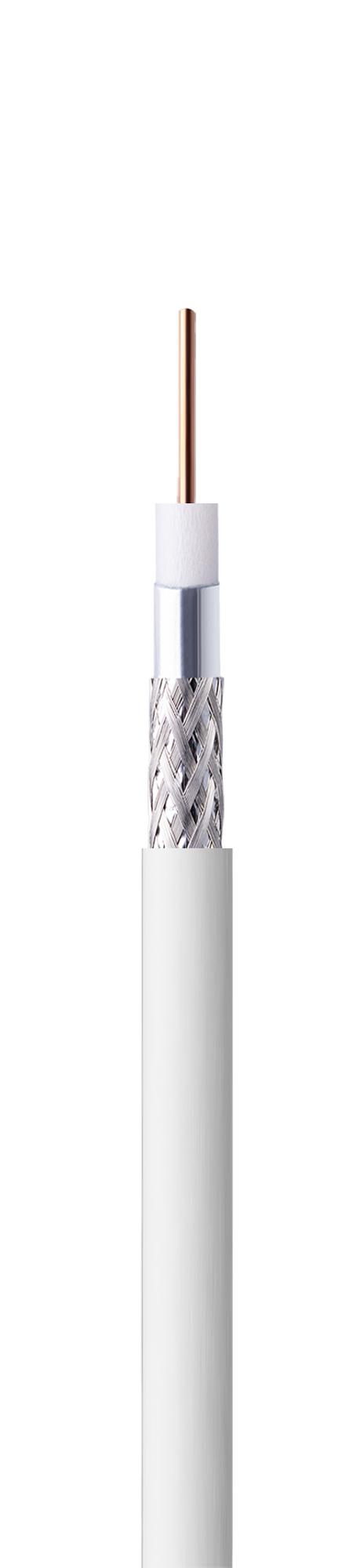

RG59 SA Class A Eca

Key Information & Construction Parameters:

SKU：

7170302

Class CPR

Eca

Standards:

EN50117-9-2
CEI-UNEL 36762
EN50575

Inner Conductor Material

Plain Copper (Cu)

Inner Conductor Size

0.80 ± 0.02mm

Insulation Material

Foam Polyethylene(PEG)

Insulation Size

3.50 ± 0.10mm

Shield 1

Al/Pet/Al

Shield 2

Tinned Copper(CuSn) braiding wire

65% Coverage

Jacket

Material: PVC

OD: 5.00 ± 0.10mm

Color: White/Black or customerzied

Application

DOCSIS 3.1 (Data Over Coax System)
CATV
4K-UHD
Indoor Installation

Electrical Characteristics & Physical Properties:

Characteristic impedance

200 MHz  75±3 Ohm

Capacitance (@1kHz)

52 ± 2 pF/m.Nom

Velocity Ratio

85% Nom.

Inner conductor resistance

35 Ω/km

Outer conductor resistance

18.60 Ω/km

Loop resistance

53.60 Ω/km

Sheat Insulation voltage

2.5 kV

Maximum current (Ieff)

4 A

Structural Return Loss(SRL)

5 - 470 MHz

>30 dB

470 - 1000 MHz

>28 dB

1000 - 2000 MHz

>26 dB

2000 - 3000 MHz

>22 dB

Screening Attenuation(SA)
SA-Class A++

30 - 1000 MHz

>90 dB

1000 - 2000 MHz

>75 dB

2000 - 3000 MHz

>65 dB

Transfer Impedance

    5-30 MHz

＜9 mOhm/m

Min.Bending Radius

25/50 mm

Max. Cable Pulling Strength

90 N

Operating Temperature

-20 / +70 °C

Attenuation (at 20°C )

Frequency (MHZ)

Max Attenuation (dB/100m)

5

2.10

10

3.00

30

4.40

50

5.70

200

11.00

300

13.50

470

16.80

*The above data is for reference only, the actual order test report shall prevail.
