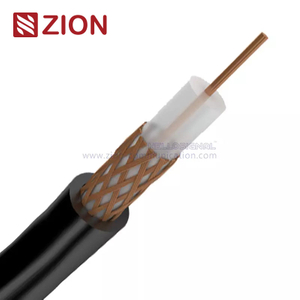

Паракс РК 75-2-110
hellosignal
7100303
Coaxial Cable
75 ohm
UL, ETL, CE, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
30KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
Specification
75 Ohm CCTV coaxial Cable NO.7100303 | |||
Construction Parameters: | |||
Inner Conductor | 0.014"/0.37mm/28 AWG BC | ||
Dielectric | 0.144"/2.2mm Solid PE | ||
Shield | Copper clad aluminum | ||
Jacket | 0.130"±0.006"/3.30±0.30mm PVC | ||
Jacket Thickness | 0.032"/0.81mm | ||
Application | For Use in Longer CCTV Run Lengths | ||
Electrical Characteristics: | |||
Inner Conductor Resistance | The Max. at 20℃ shall be < 168.2 Ω/km | ||
Capacitance | 68±1 pF/m | ||
Impedance | 75±5 Ω | ||
Return loss | 20dB | ||
Velocity of Propagation | |||
Sparker Test (VAC) | |||
Mechanical and Envrionmental Properties | |||
Cable bend radius | 10 times the cable diameter | ||
Operating Temp Range | -20 ℃ to 60℃ | ||
Cable diamensions | 0.130"±0.006"/3.30±0.30mm PVC | ||
Cross Section | |||
| |||
Attenuation(20℃): | |||
Frequency (MHZ) | Max Attenuation(dB/100m) | ||
10 | 5.86 | ||
50 | 13.50 | ||
200 | 30.80 | ||
470 | 47.50 | ||
862 | 73.00 | ||
1000 | |||
1350 | |||
1750 | |||
Order Informations: | |||
Marking | HELLOSIGNAL PK75-2-110 BC 40% CCA PVC CCTV COAXIAL CABLE 7100303 ×××M/FT | ||
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | ||
Delivery time | Normally 25 days after received the deposit. | ||
Brand | HELLOSIGNAL® OR OEM | ||
PK75-2-110 BC 40% CCA PVC
