NO.7100317 Паракс РК 75-2-310 BC 45% CCA PE

CCTV coaxial cable description
Surveillance is a primary function in safety and security for many environments such as Schools,Hospitals,Hotels,Malls,Airports, Stations, Casinos, Prisons, Businesses and Personals.
The selection of cameras and other electronics equipment is a primary concern,but the link between the electronics should be taken with extreme caution.ZION COMMUNICATION  provides CCTV coaxial cables from short run applications to the most critical long distance applications. Our CCTV coaxial cables offer optimum performance for main distribution use in video surveillance systems where extended cable runs are required.

Our CCTV coaxial cables are available to support most main video surveillance solution brand,such as SONY,HONEYWELL,ARIX,HIKVISION,DAHUA,HELLOSIGNAL and more.All CCTV Coaxial cables from ZION COMMUNICATION comply with International standards within the industry. And ZION COMMUNICATION CCTV coaxial cable are available as UL and with a CM,CMR or CMP rating, and CPR certificates.

Why chose us as your partner?
  ● Price: You can get ultimate reasonable factory price of the CCTV coaxial cable itself from us!
  ● Service: You will enjoy best service from our export team on price for import and export, shipping time, documents and custom policy, which will save cost ultimately  and create biggest value for you.
  ● Quality Guarantee:You will received 100% quality pass testing before sending to our customers; also we are responsible for all products during it’s normal lifetime.

PK75-2-310 BC 45% CCA PE

75 Ohm CCTV coaxial Cable

NO.7100317

Similar Type:

Catalog
No.

Cond.Type
&Nom.D.C.R

Dielectric

Shielding&
%Coverage

Jacket Type

Nom. Capacitance

Nom.Imp.Ω

PK75-2-310 BC
45% BC PE
NO.7100318

0.48mm(SOL)BC
98Ω/km

Solid PE

BC-Braid 45%

3.30mm PE

68±1 pF/m

75±5 Ω

PK75-2-310 BC
45% CCA PVC
NO.7100319

0.48mm(SOL)BC
98Ω/km

Solid PE

CCA-Braid 45%

3.30mm PVC

68±1 pF/m

75±5 Ω

PK75-2-310 BC
45% BC PVC
NO.7100320

0.48mm(SOL)BC
98Ω/km

Solid PE

BC-Braid 45%

3.30mm PVC

68±1 pF/m

75±5 Ω

PK75-3-32 BC
88% CCA PVC
NO.7100357

0.60mm(SOL)BC
63Ω/km

FPE

CCA-Braid 88%

4.50mm PVC

56.5±1 pF/m

75±5 Ω

PK75-3-32 BC
88% BC PVC
NO.7100358

0.60mm(SOL)BC
63Ω/km

FPE

BC-Braid 88%

4.50mm PVC

56.5±1 pF/m

75±5 Ω

PK75-3-32 BC
88% CCA LSZH
NO.7100359

0.60mm(SOL)BC
63Ω/km

FPE

CCA-Braid 88%

4.50mm  LSZH

56.5±1 pF/m

75±5 Ω

PK75-3-32 BC
88% BC LSZH
NO.7100360

0.60mm(SOL)BC
63Ω/km

FPE

BC-Braid 88%

4.50mm  LSZH

56.5±1 pF/m

75±5 Ω

Construction Parameters:

Inner Conductor

0.019"/0.48mm/25 AWG BC

Dielectric

0.144"/2.2mm  Solid PE

Shield

Copper clad aluminum
braid wire 45% coverage

Jacket

0.130"±0.006"/3.30±0.30mm PE

Jacket Thickness

0.032"/0.81mm

Application

For Use in Longer CCTV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance

The Max. at 20℃ shall be < 98 Ω/km

Capacitance

55±1 pF/m

Impedance

75±5 Ω

Return loss

between 5 and 1000MHz: > 20dB

Velocity of Propagation

0.81

Sparker Test (VAC)

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃ / -40 ℃ to 80℃

Cable diamensions

0.130"±0.006"/3.30±0.30mm PE

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100m)

10

4.90

50

10.60

200

21.60

470

34.00

862

46.70

1000

50.30

1350

59.10

1750

68.50

2150

78.10

2400

84.60

The Factory

We have a study and design label,a professional team of engineers and skilled workers, also with the advanced machines and modern factories which can provide our customers with outstanding quality, service, and pricing.
Monthly Production Capacity:
Wire (Copper/copper clad aluminium) drawing: 500 Metric Tons+
Coaxial Cable: 14,000KM+
Telephone Cable: 10,000KM+
Data & Computer Cable: 12,200KM+
Security & Fire Alarm Cable: 10,000KM+
Other Cable Types: 10,000KM+
Cable Accessories: 180,000pcs+
Telecom Accessories: 180,000pcs+

Packing

We have abundant types of packing for you,such as reel, plastic spool, wooden spool,pull box, colorful carton, pallet and many other more. Also our design team will supply you best solution of the packing for size ,firm and artistic outlooking.

Order Informations:

Marking

HELLOSIGNAL PK75-2-130 BC 45% CCA PE
CCTV COAXIAL CABLE 7100317 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM

Similar Type:

Catalog
No.

Cond.Type
&Nom.D.C.R

Dielectric

Shielding&
%Coverage

Jacket Type

Nom. Capacitance

Nom.Imp.Ω

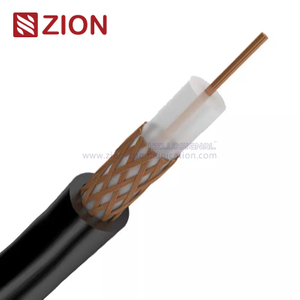

PK75-2-310 BC
