CFTV
hellosignal
7102101
Coaxial Cable
75 ohm
UL, ETL, CE, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
30KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
75 Ohm CCTV coaxial Cable NO.7102101 | ||
Construction Parameters: | ||
Inner Conductor | 8*0.14mm Bare Copper | |
Dielectric | 2.40±0.05mm Yellow Solid PE | |
Shield | 0.12mmCCA-Braid(85%) | |
Jacket | 4.00±0.1mm PVC | |
Power Wire Conductor | 2x( 10*0.12mmCCA ) | |
Power wire Diameter of insulation | 0.91mmHDPE (Red,Black) | |
Jacket | 3.0mmPVC | |
Application | For Use in Longer CATV Run Lengths | |
Electrical Characteristics: | ||
Inner Conductor Resistance | The Max. at 20℃ shall be < 136.8 Ohms/KM | |
Capacitance | 65±2 pF/m | |
Impedance | 75 ± 3 Ω | |
Return loss | between 5 and 1000MHz: > 22dB | |
Velocity of Propagation | 0.66 | |
Sparker Test (VAC) | 3 | |
Operating Temp Range (PVC) | -20 ℃ to 60℃ | |
RoHS | YES | |

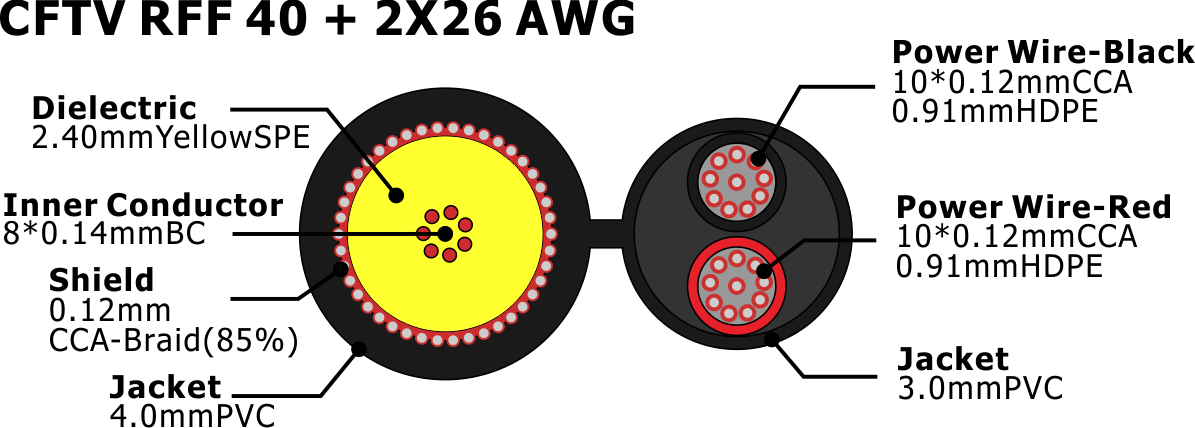

Cross Section | ||
| ||
Attenuation(20℃): | ||
Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
1 | 1.93 | |
4 | 3.87 | |
7 | 5.13 | |
70 | 16.39 | |
100 | 19.65 | |
200 | 27.99 | |
300 | 34.47 | |
400 | 39.98 | |
500 | 44.88 | |
600 | 49.35 | |
700 | 53.48 | |
800 | 57.35 | |
900 | 61.00 | |
1000 | 64.48 | |
Order Informations: | ||
Marking | HELLOSIGNAL CFTV RFF 40 + 2X26 AWG CATV COAXIAL CABLE 7102101 ×××M/FT | |
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |
Delivery time | Normally 25 days after received the deposit. | |
Brand | HELLOSIGNAL®OR OEM | |
75 Ohm CCTV coaxial Cable NO.7102101 | ||
Construction Parameters: | ||
Inner Conductor | 8*0.14mm Bare Copper | |
Dielectric | 2.40±0.05mm Yellow Solid PE | |
Shield | 0.12mmCCA-Braid(85%) | |
Jacket | 4.00±0.1mm PVC | |
Power Wire Conductor | 2x( 10*0.12mmCCA ) | |
Power wire Diameter of insulation | 0.91mmHDPE (Red,Black) | |
Jacket | 3.0mmPVC | |
Application | For Use in Longer CATV Run Lengths | |
Electrical Characteristics: | ||
Inner Conductor Resistance | The Max. at 20℃ shall be < 136.8 Ohms/KM | |
Capacitance | 65±2 pF/m | |
Impedance | 75 ± 3 Ω | |
Return loss | between 5 and 1000MHz: > 22dB | |
Velocity of Propagation | 0.66 | |
Sparker Test (VAC) | 3 | |
Operating Temp Range (PVC) | -20 ℃ to 60℃ | |
RoHS | YES | |
Cross Section | ||
| ||
Attenuation(20℃): | ||
Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
1 | 1.93 | |
4 | 3.87 | |
7 | 5.13 | |
70 | 16.39 | |
100 | 19.65 | |
200 | 27.99 | |
300 | 34.47 | |
400 | 39.98 | |
500 | 44.88 | |
600 | 49.35 | |
700 | 53.48 | |
800 | 57.35 | |
900 | 61.00 | |
1000 | 64.48 | |
Order Informations: | ||
Marking | HELLOSIGNAL CFTV RFF 40 + 2X26 AWG CATV COAXIAL CABLE 7102101 ×××M/FT | |
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |
Delivery time | Normally 25 days after received the deposit. | |
Brand | HELLOSIGNAL®OR OEM | |
CFTV RFF 40 + 2X26 AWG
