КВК-П-1,5
hellosignal
7102211
Coaxial Cable
75 ohm
UL, ETL, CE, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
30KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight

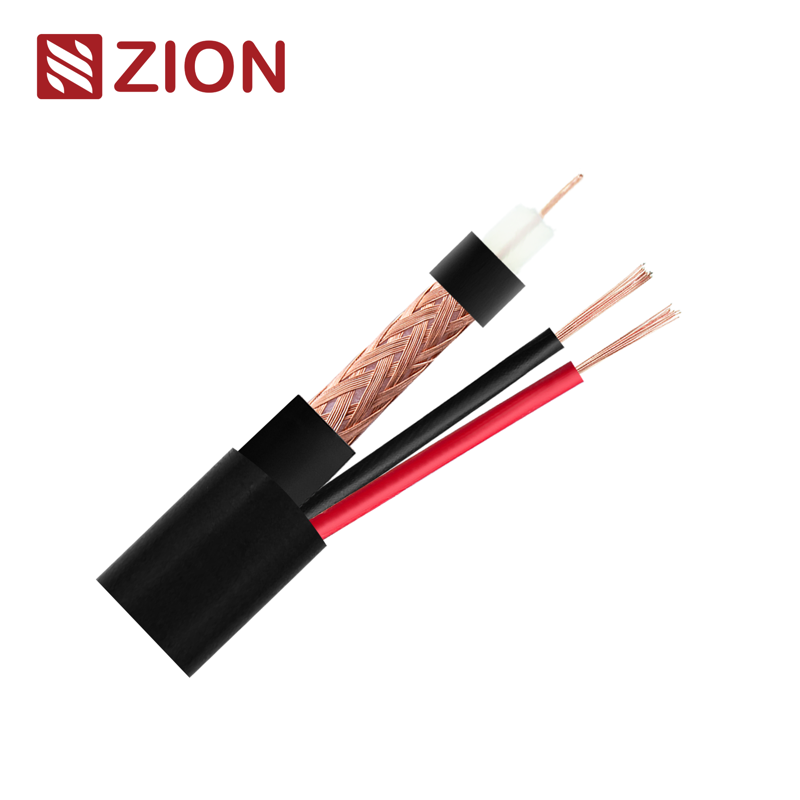

75 Ohm CCTV coaxial Cable NO.7102211 | ||
Construction Parameters: | ||
Inner Conductor | 0.25mmCu | |
Dielectric | 1.6mm Solid Polyethylene | |
Shield | 64×0.12mmCCA(90%) | |
Jacket | 3.1mm PVC | |
Power Wire Conductor | 2x(16x0.25mmCCA ) | |
Power wire Diameter of insulation | 2.0mm PVC (Red,Black) | |
Jacket | 6.4mm PE Common | |
Application | For Use in Longer CCTV Run Lengths | |
Electrical Characteristics: | ||
Inner Conductor Resistance | ||
Capacitance | ||
Impedance | ||
Return loss | ||
Velocity of Propagation | ||
Sparker Test (VAC) | ||
Mechanical and Envrionmental Properties | ||
Cable bend radius | 10 times the cable diameter | |
Operating Temp Range | -20 ℃ to 60℃ | |
Cable diamensions | ||

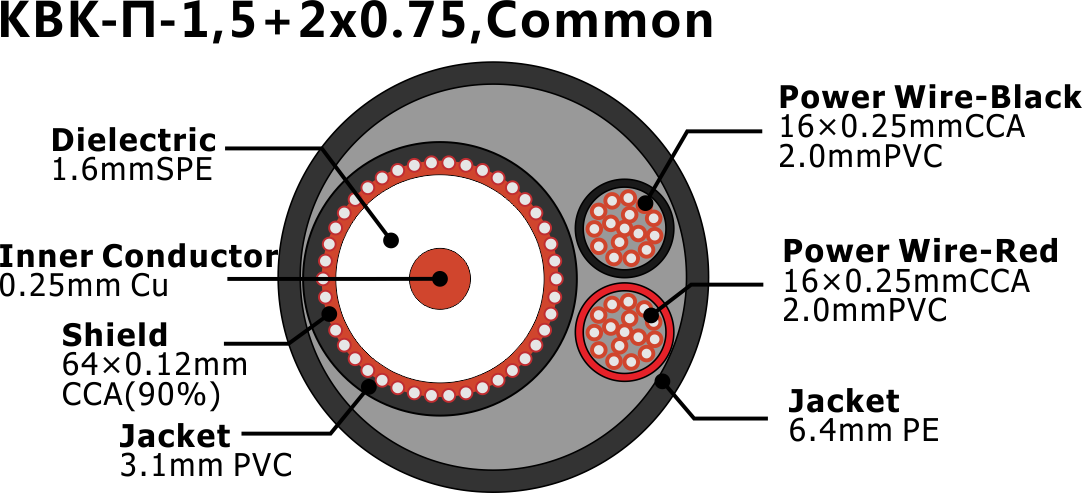

Cross Section | ||
| ||
Attenuation(20℃): | ||
Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
Order Informations: | ||
Marking | HELLOSIGNAL КВК-П-1,5+2х0.75,Common | |
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |
Delivery time | Normally 25 days after received the deposit. | |
Brand | HELLOSIGNAL® OR OEM | |
75 Ohm CCTV coaxial Cable NO.7102211 | ||
Construction Parameters: | ||
Inner Conductor | 0.25mmCu | |
Dielectric | 1.6mm Solid Polyethylene | |
Shield | 64×0.12mmCCA(90%) | |
Jacket | 3.1mm PVC | |
Power Wire Conductor | 2x(16x0.25mmCCA ) | |
Power wire Diameter of insulation | 2.0mm PVC (Red,Black) | |
Jacket | 6.4mm PE Common | |
Application | For Use in Longer CCTV Run Lengths | |
Electrical Characteristics: | ||
Inner Conductor Resistance | ||
Capacitance | ||
Impedance | ||
Return loss | ||
Velocity of Propagation | ||
Sparker Test (VAC) | ||
Mechanical and Envrionmental Properties | ||
Cable bend radius | 10 times the cable diameter | |
Operating Temp Range | -20 ℃ to 60℃ | |
Cable diamensions | ||
Cross Section | ||
| ||
Attenuation(20℃): | ||
Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
Order Informations: | ||
Marking | HELLOSIGNAL КВК-П-1,5+2х0.75,Common | |
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |
Delivery time | Normally 25 days after received the deposit. | |
Brand | HELLOSIGNAL® OR OEM | |
