UL 1424 FPLR Unshielded
hellosignal
7110055
Fire Alarm Cable
UL, ETL, CE,CPR, RoHS
100m,500m,500ft,1000ft
roll, wooden spool, carton, pallet
10KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
14AWG 2/C SOL FPLR Fire Alarm Cables NO.7110055 | ||||||||
Cable construction : | ||||||||
Conductor: | ||||||||
14AWG Solid Bare Copper | ||||||||
Nom.Dia:0.064''(1.63mm) | ||||||||
Dielectric: | ||||||||
Type: PVC | ||||||||
Dia.over Dielectric: 0.088±0.004''nom.(2.25±0.10mm) | ||||||||
Color Code: | ||||||||
1.Blk | 2.Red | |||||||
Jacket: | ||||||||
Type: FPLR-PVC | ||||||||
Color: Red | ||||||||
Dia.over Jacket: 0.210''±0.006''(5.35±0.15mm) | ||||||||
Print Legend: | ||||||||
HELLOSIGNAL NO.7110055 14AWG 2C 75C E××××××(UL) FPLR SUN RES(ROHS) ××××M/FT DEVICE/ZONE A B C D E F 1 2 3 4 5 6 7 8 9 | ||||||||
Electrical Properties : | ||||||||
Temperature Rating | -20℃ ~ +75℃ | |||||||
Operating Voltage | 300 Volts max | |||||||
Capacitance | 18 pf/ft nom | |||||||
Impedance | 82 Ohms nom | |||||||
DC Resistance | 2.54 Ohms/M' at 20℃ | |||||||

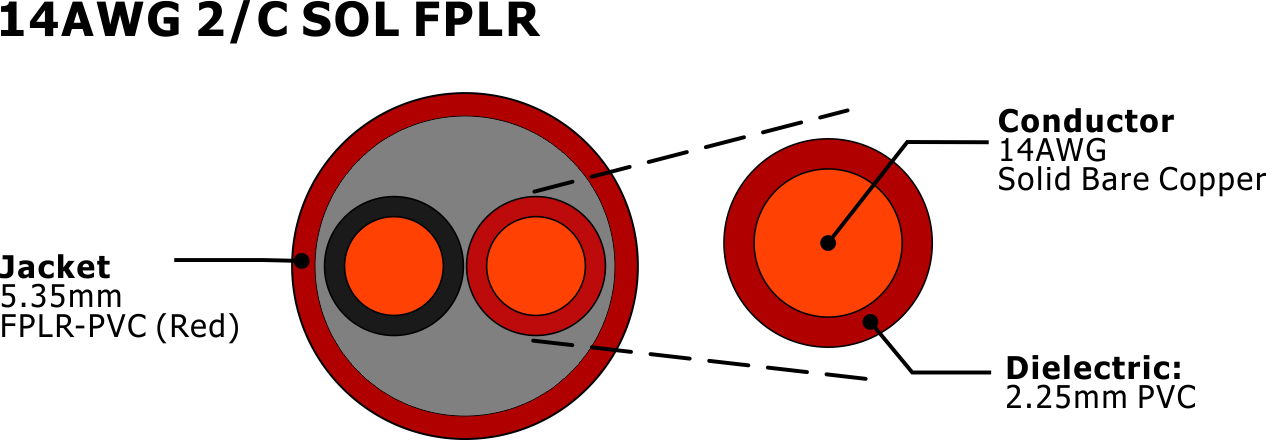

Cross Section : | ||||||||
| ||||||||
Order Informations : | ||||||||
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet... | |||||||
Delivery time | Normally 25 days after received the deposit. | |||||||
Brand | HELLOSIGNAL® OR OEM | |||||||
