NO.7110233 14AWG 2/C STR Zipcord Unshielded FPLR-CL2R Fire Alarm Cables

Cable construction :

Conductor:

14AWG Stranded Bare Copper

14 AWG : 7/22, 19/27, 41/30, 105/34

Nom.Dia:0.064''(1.63mm)

Color Code:

1.Red

2.Red

Jacket:

Type: PVC

Color: Red

Dia.over Jacket:0.107" x 0.220"  (2.92mm×5.99mm PVC)

Print Legend:

HELLOSIGNAL NO.7110233 14AWG 2C 75C E××××××(UL) STR Zipcord Unshielded FPLR-CL2R

SUN RES(ROHS) ××××M/FT DEVICE/ZONE

A B C D E F 1 2 3 4 5 6 7 8 9

Electrical Properties :

Temperature Rating

-20℃ ~ +75℃

Operating Voltage

300 Volts max

Capacitance

17 pf/ft nom

Impedance

43 Ohms nom

DC Resistance

2.45Ohms/M' at 20℃

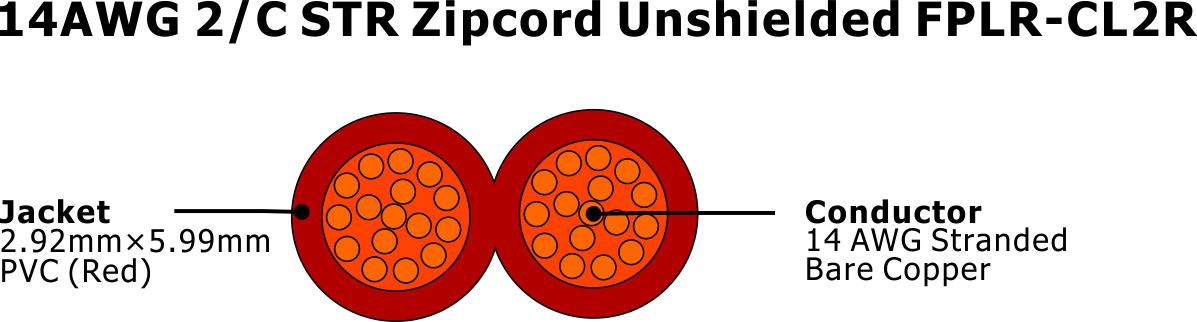

Cross Section :
