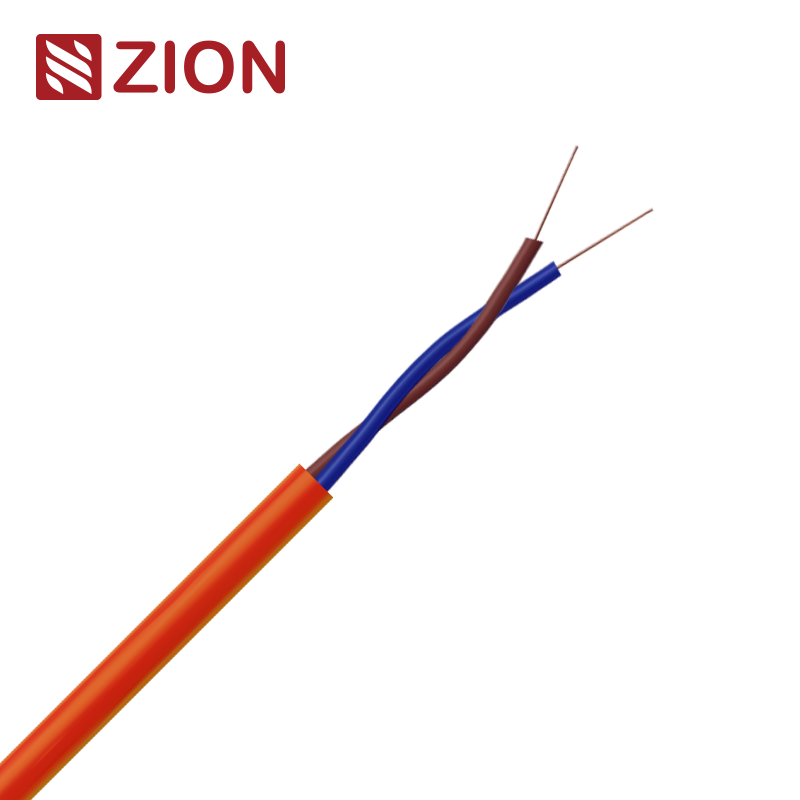

NO.7110524 КПС нг(А)-FRFH 2×1.0mm² Unshielded Fire Alarm Cable

Cable construction :

Conductor:

Bare copper class 1

2×1.13mm

Insulation:

Matterial: Silicone

Dia.over Dielectric: 0.094''nom.(2.4mm)

Color Code:

1.Blu

2.Brn

Jacket:

Type:FRFH-LSOH

Color: Red or Orange

Dia.over Jacket: 0.240''(6.1mm)

Print Legend:

HELLOSIGNAL NO.7110524 КПС нг(А)-FRFH 2×1.0mm² Unshielded Cable MMDDYYYY

Electrical Properties :

Minimum  Bend Radius

8×Diameter

Min.DC resistance

18.8 ohm/KM

Min.Insulation resistance

100 MΩ/km

Installation Temperature

-10℃～+50℃

Test voltage (rms value)

1000V

Max. Operating Voltage

300 V

Cross Section :

Test Standards

√180 minutes under fire of 750 degrees without short-circuit.

√Fire hazard class of the cable on the classification of ГОСТ Р  31565-2012 - P1.1.2.2.2.

√Cable flame retardant while installing in category A (ГОСТ Р IEC 60332-3-22-2005).

√Indicator toxicity of the combustion products of polymeric material of the cable - not less than 41g / m.

√Smoke generation during combustion and smoldering cable does not reduce the light transmittance of more than 50% (GOST R IEC 61034-2-2005).

√The cable is designed for fixed installation for voltage to 300 V AC to 10 kHz or 420 VDC.

Order Informations :

Package

100M/Reel,200M/Reel,500M/Wooden Spool

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
