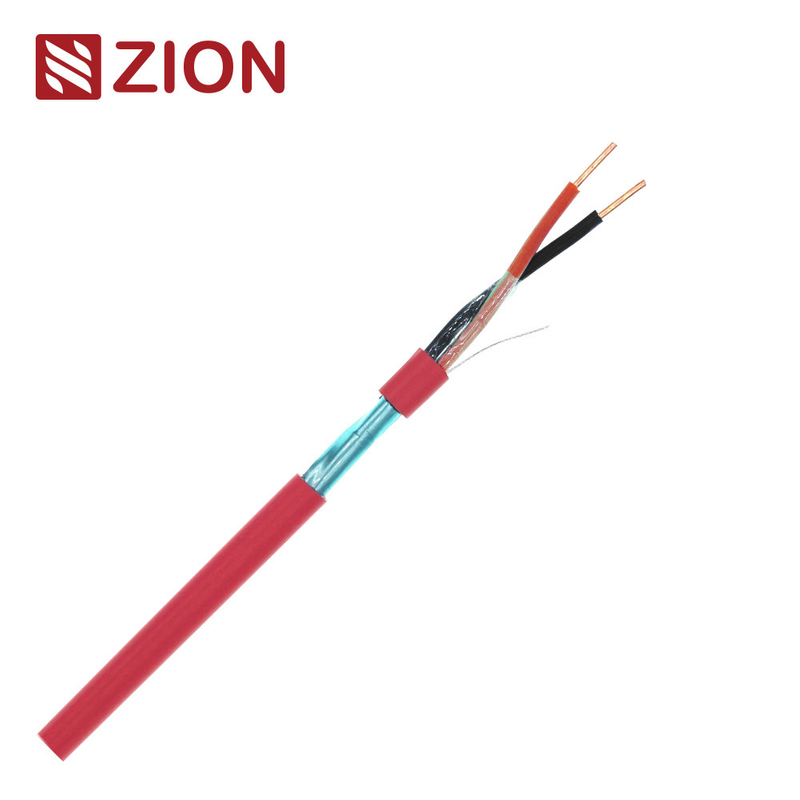

NO.7110602 2×1.5mm² FPLR Fire Alarm Cable

Fire Alarm Cable Description
ZION COMMUNICATION supplies a wide range of fire alarm cables which are for use with fire monitoring,
fire detection, power-limited fire alarm systems, smoke detectors, signaling, audio circuits, control circuits,
fire protective circuits and security systems.
All HANGZHOU ZION COMMUNICATION CO.,LTD fire alarm cables comply with International standards within
the industry. If you do not find the product you need in then we offer the option of a special custom design cable. Here you can choose between different constructions, jacket colours or other materials etc.

Key Features
These products are solid conductor or multi conductor cables that come in a shielded and unshielded version.
The variations are PVC, Plenum, shielded and unshielded which automatically puts this cable in at least
4 types of different applications. Standard ways of asking for it would be fire alarm cable, shielded fire alarm cable, FPLR cable

and FPLP cable which stated for Riser and Plenum.

Applications

★ Hotels ★ Theatres and cinemas ★ Museums ★ Hospitals ★ Shopping centres ★ Skyscrapers ★ Offices ★ Schools ★ Airports

★ Undergrounds and tunnels ★ Railways stations ★ Computer centres ★ Alarm systems ★ Traffic control systems ★ Fire fighting systems

Why chose us as your partner?
  ● Price: You can get ultimate reasonable factory price of the fire alarm cable itself from us!
  ● Service: You will enjoy best service from our export team on price for import and export, shipping time, documents and custom policy,   which will save cost ultimately  and create biggest value for you.
  ● Quality : Guarantee:You will received 100% quality pass testing before sending to our customers;   also we are responsible for all products during it’s normal lifetime.

2×1.5mm² FPLR

Fire Alarm Cable

NO.7110602

Cable construction

Conductor:

Solid Bare Copper
2×1.36mm

Insulation:

Type:PVC-FPLR
Dia.over Dielectric: 0.094''nom.(2.4mm)

Insulation Color:

Blu/Brn

Separator :

PET Foil

Drain Wire:

0.8mm Aluminum/TCCA

Shield:

Aluminum PET (100% Coverage 20% overlapping)

Jacket:

PVC-FPLR

Dia.over Jacket: 0.267''(6.8mm)

Print Legend:

HELLOSIGNAL NO.7110602 2×1.5mm² FPLR MMDDYYYY

Electrical Properties

Min.Conductor resistance

11.8Ω/km

Min.Insulation resistance

300 MΩ/km

Temperature Range

-35℃～+105℃

Test voltage (rms value)

2KV/15 min , 1KV/5min

Max. Operating
Voltage peak value

Standard

ANSI/UL 1424, Cables for Power-Limited Fire-Alarm Circuits

All these cables comply to:

Application of insulation

BS 7629-1-2008

Inner Conductor Diameter

BS EN 60228

Insulation Type

BS 50363-5

Corrosive and Acid Gas Emission

BS EN 50267-2-1

Flame Propagation(bunched cable)

IEC332-3/TS EN50266

Flame Propagation(single cable)

IEC332-1/TS EN60332-1-2

Sheath

BS 7656-6-1/LTS 3

Cross Section

The Factory

We have a study and design label,a professional team of engineers and skilled workers, also with the advanced machines and modern factories which can provide our customers with outstanding quality, service, and pricing.
Monthly Production Capacity:
Wire (Copper/copper clad aluminium) drawing: 500 Metric Tons+
Coaxial Cable: 14,000KM+
Telephone Cable: 10,000KM+
Data & Computer Cable: 12,200KM+
Security & Fire Alarm Cable: 10,000KM+
Other Cable Types: 10,000KM+
Cable Accessories: 180,000pcs+
Telecom Accessories: 180,000pcs+

Packing

We have abundant types of packing for you,such as reel, plastic spool, wooden spool,pull box, colorful carton, pallet and many other more. Also our design team will supply you best solution of the packing for size ,firm and artistic outlooking.

Order Informations

Package

100M/Reel,200M/Reel,500M/Wooden Spool

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL®OR OEM

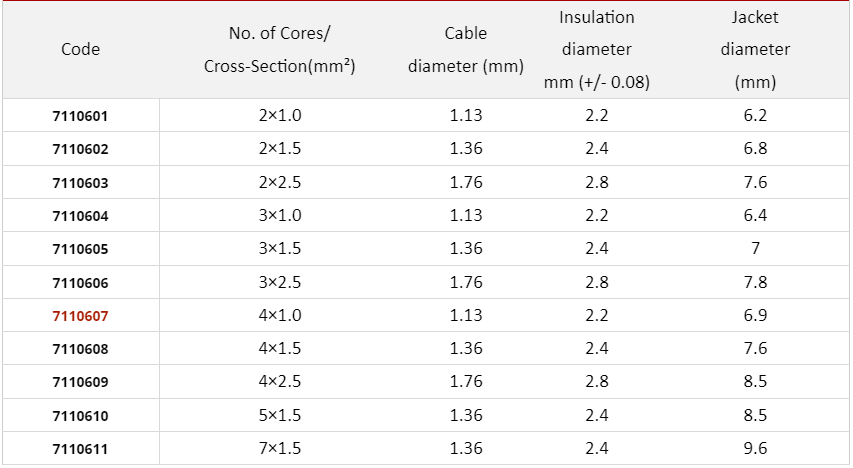

Similar Type

No. of Cores/Cross-Section(mm²)

Cable diameter (mm)

Insulation diameter
mm (+/- 0.08)

Jacket diameter (mm)

7110601

2×1.0

1.13

2.2

6.2

7110602

2×1.5

1.36

2.4

6.8

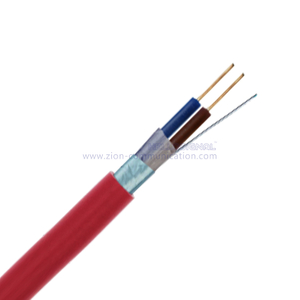

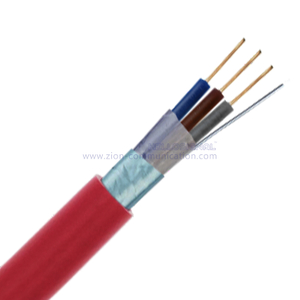

7110603

2×2.5

1.76

2.8

7.6

7110604

3×1.0

1.13

2.2

6.4

7110605

3×1.5

1.36

2.4

7.0

7110606

3×2.5

1.76

2.8

7.8

7110607

4×1.0

1.13

2.2

6.9

7110608

4×1.5

1.36

2.4

7.6

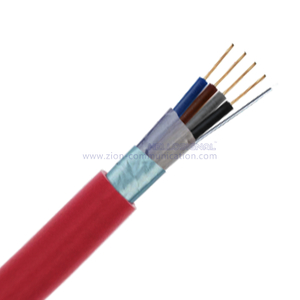

7110609

4×2.5

1.76

2.8

8.5

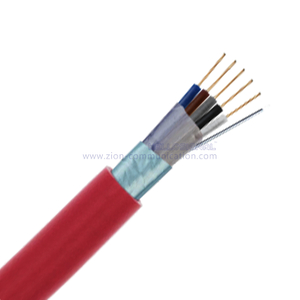

7110610

5×1.5

1.36

2.4

8.5

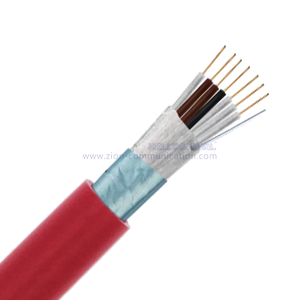

7110611

7×1.5

1.36

2.4

9.6
