FPLR
hellosignal
7110607
Fire Alarm Cable
UL, ETL, CE,CPR, RoHS
100m,500m,500ft,1000ft
roll, wooden spool, carton, pallet
10KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight

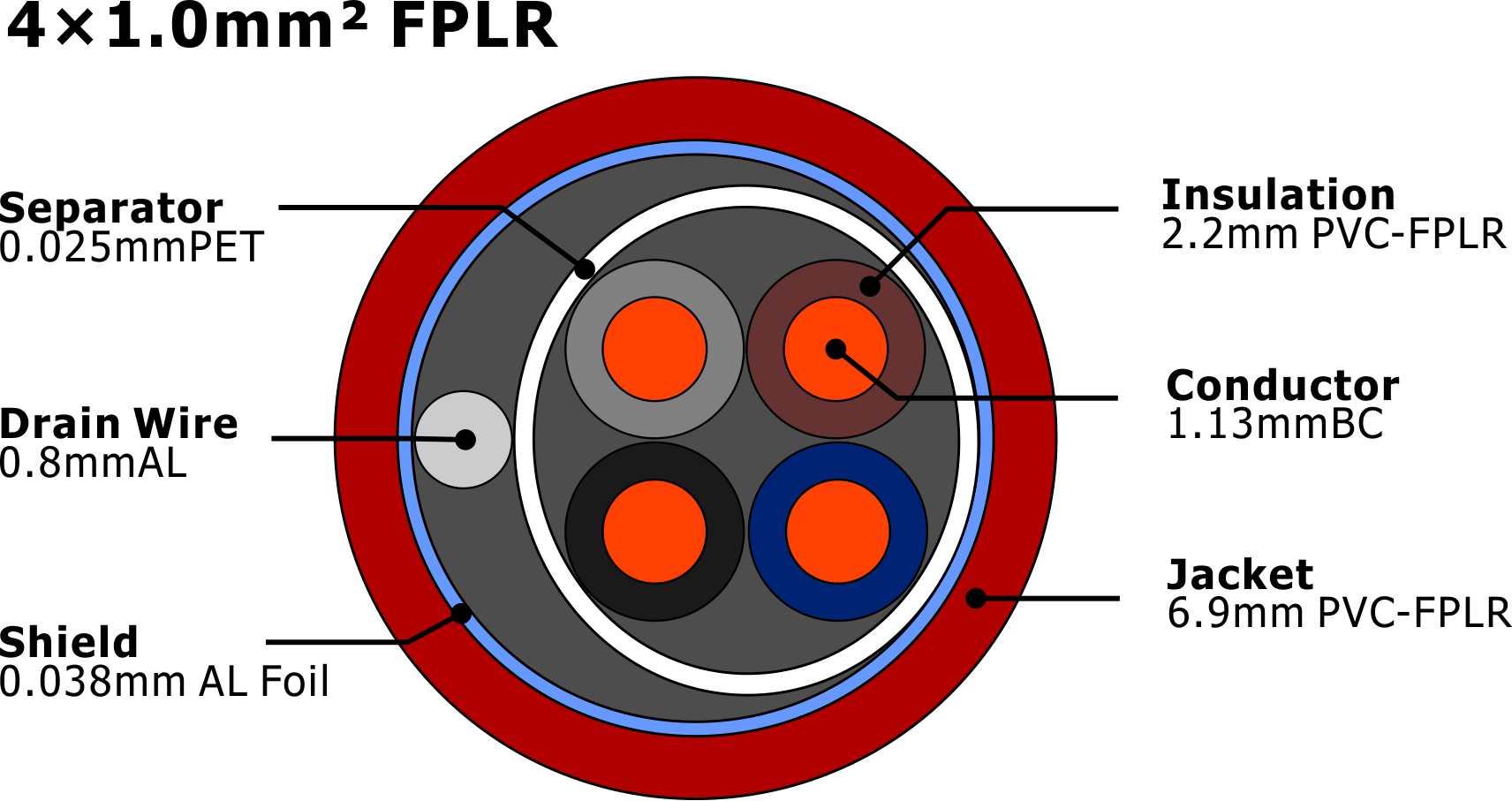

4×1.0mm2 FPLR Fire Alarm Cables NO.7110607 | ||||||||
Cable construction : | ||||||||
Conductor: | Solid Bare Copper | |||||||
Insulation: | Type:PVC-FPLR | |||||||
Insulation Color: | Blu/Brn | |||||||
Separator : | PET Foil | |||||||
Drain Wire: | 0.8mm Aluminum/TCCA | |||||||
Shield: | Aluminum PET (100% Coverage 20% overlapping) | |||||||
Jacket: | PVC-FPLR | |||||||
Dia.over Jacket: 0.244''(6.9mm) | ||||||||
Print Legend: | ||||||||
HELLOSIGNAL NO.7110607 4×1.0mm2 FPLR MMDDYYYY | ||||||||
Electrical Properties : | ||||||||
Min.Conductor resistance | 11.85Ω/km | |||||||
Min.Insulation resistance | 300 MΩ/km | |||||||
Temperature Range | -35℃～+105℃ | |||||||
Test voltage (rms value) | 2KV/15 min , 1KV/5min | |||||||
Max. Operating | ||||||||
Cross Section : | ||||||||
| ||||||||
Standard: | ||||||||
ANSI/UL 1424, Cables for Power-Limited Fire-Alarm Circuits | ||||||||
All these cables comply to: | ||||||||
Application of insulation | BS 7629-1-2008 | |||||||
Inner Conductor Diameter | BS EN 60228 | |||||||
Insulation Type | BS 50363-5 | |||||||
Corrosive and Acid Gas Emission | BS EN 50267-2-1 | |||||||
Flame Propagation(bunched cable) | IEC332-3/TS EN50266 | |||||||
Flame Propagation(single cable) | IEC332-1/TS EN60332-1-2 | |||||||
Sheath | BS 7656-6-1/LTS 3 | |||||||
Order Informations : | ||||||||
Package | Inquired Length on Reel,Pull Box, | |||||||
Delivery time | Normally 25 days after received the deposit. | |||||||
Brand | HELLOSIGNAL® OR OEM | |||||||
4×1.0mm2 FPLR Fire Alarm Cables NO.7110607 | ||||||||
Cable construction : | ||||||||
Conductor: | Solid Bare Copper | |||||||
Insulation: | Type:PVC-FPLR | |||||||
Insulation Color: | Blu/Brn | |||||||
Separator : | PET Foil | |||||||
Drain Wire: | 0.8mm Aluminum/TCCA | |||||||
Shield: | Aluminum PET (100% Coverage 20% overlapping) | |||||||
Jacket: | PVC-FPLR | |||||||
Dia.over Jacket: 0.244''(6.9mm) | ||||||||
Print Legend: | ||||||||
HELLOSIGNAL NO.7110607 4×1.0mm2 FPLR MMDDYYYY | ||||||||
Electrical Properties : | ||||||||
Min.Conductor resistance | 11.85Ω/km | |||||||
Min.Insulation resistance | 300 MΩ/km | |||||||
Temperature Range | -35℃～+105℃ | |||||||
Test voltage (rms value) | 2KV/15 min , 1KV/5min | |||||||
Max. Operating | ||||||||
Cross Section : | ||||||||
| ||||||||
Standard: | ||||||||
ANSI/UL 1424, Cables for Power-Limited Fire-Alarm Circuits | ||||||||
All these cables comply to: | ||||||||
Application of insulation | BS 7629-1-2008 | |||||||
Inner Conductor Diameter | BS EN 60228 | |||||||
Insulation Type | BS 50363-5 | |||||||
Corrosive and Acid Gas Emission | BS EN 50267-2-1 | |||||||
Flame Propagation(bunched cable) | IEC332-3/TS EN50266 | |||||||
Flame Propagation(single cable) | IEC332-1/TS EN60332-1-2 | |||||||
Sheath | BS 7656-6-1/LTS 3 | |||||||
Order Informations : | ||||||||
Package | Inquired Length on Reel,Pull Box, | |||||||
Delivery time | Normally 25 days after received the deposit. | |||||||
Brand | HELLOSIGNAL® OR OEM | |||||||
