Security Cable unshielded
hellosignal
7111304
security alarm cable
UL, ETL, CE,CPR, RoHS
100m,305m,500m,500ft,1000ft
pull box, wooden spool, carton, pallet
10KM
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
Product Description
22/6 STR-U | ||||
Cable construction : | ||||
Conductor: |
| |||
(22AWG 7/30 Stranded Bare Copper) X 6 | ||||
Nom.Dia:0.025''(0.64mm) | ||||
Dielectric: | ||||
Type: Polypropylene | ||||
Dia.over Dielectric: 0.047''(1.20mm) | ||||
Color Code: | ||||
1.Blk | 2.Red | 3.Grn | ||
4.Grn | 5.Brn | 6.Blu | ||
Wire | ||||
Rip Cord | ||||
Jacket: | ||||
Type: PVC | ||||
Dia.over Jacket: 0.164''(4.17mm) | ||||
Electrical Properties : | ||||
Temperature Rating | （-20℃ ~ +60℃） | |||
Operating Voltage | 300 Volts max | |||
Capacitance | 15pf/ft nom. | |||
Impedance | 100 Ohms nom. | |||
DC Resistance | 16.5 Ohms/M' at 20℃ | |||
Print Legend: | ||||
HELLOSIGNAL NO.7111304 22/6 STR-U 6C E××××××(UL) Unshielded PVC SUN RES(ROHS) ××××M/FT DEVICE/ZONE A B C D E F 1 2 3 4 5 6 7 8 9 | ||||

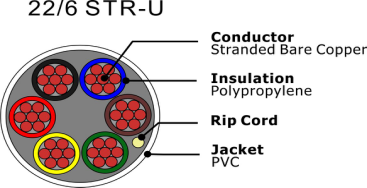

Cross Section : | ||||
| ||||
Order Informations : | ||||
Package | Inquired Length on Reel,Pull Box,Plastic Spool,Wooden Spool,Pallet … | |||
Delivery time | Normally 25 days after received the deposit. | |||
Brand | HELLOSIGNALTM OR OEM | |||
Production Process Flow
#1 Insulation Line 1
#2 Insulation Line 2
#3 Twisting Machine 1
#4 Twisting Machine 2
#5 Jacket Line
#6 Testing Room1
#7 Testing Room2
#8 Loading Container
