Security Cable unshielded
hellosignal
7111317
security alarm cable
UL, ETL, CE,CPR, RoHS
100m,305m,500m,500ft,1000ft
pull box, wooden spool, carton, pallet
10KM
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
Product Description
18/12 STR-U | ||||
Cable construction : | ||||
Conductor: | | |||
(18 AWG 7/26 Stranded Bare Copper) X 12 | ||||
Nom.Dia:0.04''(1.02mm) | ||||
Dielectric: | ||||
Type: Polypropylene | ||||
Dia.over Dielectric: 0.067''(1.70mm) | ||||
Color Code: | ||||
1.Blk | 2.Red | 3.Grn | 4.Grn | |
5.Brn | 6.Blu | 7.Wht | 8.Org | |
9.Ppl | 10.Gry | 11.Pnk | 12.Tan | |
Wire | ||||
Rip Cord | ||||
Jacket: | ||||
Type: PVC | ||||
Dia.over Jacket: 0.290''(7.39mm) | ||||
Electrical Properties : | ||||
Temperature Rating | （-20℃ ~ +60℃） | |||
Operating Voltage | 300 Volts max | |||
Capacitance | 15pf/ft nom. | |||
Impedance | 100 Ohms nom. | |||
DC Resistance | 6.5 Ohms/M' at 20℃ | |||
Print Legend: | ||||
HELLOSIGNAL NO.7111317 18/12 STR-U 12C E××××××(UL) Unshielded PVC SUN RES(ROHS) ××××M/FT DEVICE/ZONE A B C D E F 1 2 3 4 5 6 7 8 9 | ||||

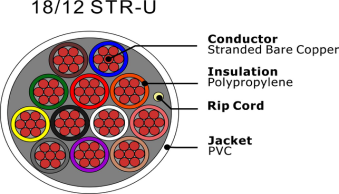

Cross Section : | ||||
| ||||
Order Informations : | ||||
Package | Inquired Length on Reel,Pull Box,Plastic Spool,Wooden Spool,Pallet … | |||
Delivery time | Normally 25 days after received the deposit. | |||
Brand | HELLOSIGNALTM OR OEM | |||
