Security Cable unshielded
hellosignal
7111321
security alarm cable
UL, ETL, CE,CPR, RoHS
100m,305m,500m,500ft,1000ft
pull box, wooden spool, carton, pallet
10KM
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
Product Description
16/2 STR-U | ||||
Cable construction : | ||||
Conductor: |
| |||
(16 AWG 19/0.0117" Stranded Bare Copper) X 2 | ||||
Nom.Dia:0.051''(1.29mm) | ||||
Dielectric: | ||||
Type: Polypropylene | ||||
Dia.over Dielectric: 0.078''(2.00mm) | ||||
Color Code: | ||||
1.Blk | 2.Red | |||
Wire | ||||
Rip Cord | ||||
Jacket: | ||||
Type: PVC | ||||
Dia.over Jacket: 0.178''(4.52mm) | ||||
Electrical Properties : | ||||
Temperature Rating | （-20℃ ~ +60℃） | |||
Operating Voltage | 300 Volts max | |||
Capacitance | 18pf/ft nom. | |||
Impedance | 85 Ohms nom. | |||
DC Resistance | 4.15 Ohms/M' at 20℃ | |||
Print Legend: | ||||
HELLOSIGNAL NO.7111321 16/2 STR-U 2C E××××××(UL) Unshielded PVC SUN RES(ROHS) ××××M/FT DEVICE/ZONE A B C D E F 1 2 3 4 5 6 7 8 9 | ||||

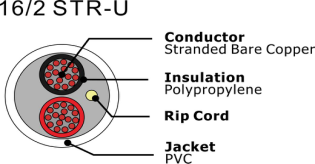

Cross Section : | ||||
| ||||
Order Informations : | ||||
Package | Inquired Length on Reel,Pull Box,Plastic Spool,Wooden Spool,Pallet … | |||
Delivery time | Normally 25 days after received the deposit. | |||
Brand | HELLOSIGNALTM OR OEM | |||
