S/FTP CAT 7 BC PVC Ethernet network cable
NO.7112402


Construction

Conductor:

23 AWG Solid Bare Copper

Pairs:

4 Pairs

Insulation:

1.35 mm Skin-Foam-Skin

Insulation Colors:

Blue-White/Blue,Orange-White/Orange

Green-White/Green,Brown-White/Brown

Individual Pair shield

Al/PET Foil,Foil face out

Drain Wire

0.40±0.005mm TC

Overall Shield

TC or AL_MG Braiding

Ripcord:

Kevlar

Out Jacket:

8.3±0.2 mm PVC


Electrical Characteristics

Impedance

4 - 100MHz 100±15 Ohms

100 - 200MHz 100±22 Ohms

200 - 500MHz 100±32 Ohms

Max.Conductor DC
Resistance 20℃

8.4 Ohms/100m

Res. unbalance (%)

Max. 2.5

Pair to Ground
Capacitance Unbalance

330 pF/100m

Transfer Impendance

Max 10 mOhms/m  @100Mhz

Couppling Attenuation

Min 80 dB

Installation temp.

 -30 - 50℃

Operation temp.

 -20 - 75℃

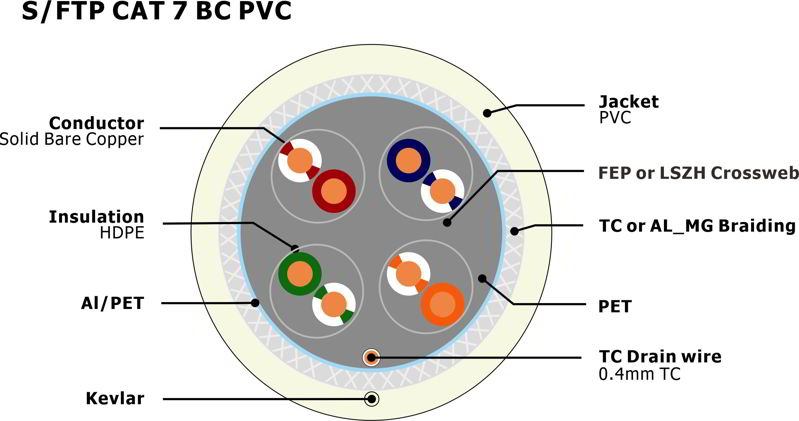

Cross Section


S-FTP CAT 7 BC PVC


Application

•  Suitable for structured premises cabling.

•  For transmission of digital and analogue voice and data signals.

•  Especially suitable for all Class F applications.

•   ISDN,Ethernet 10 Base-T,Fast Ethernet 100 Base-T, Gigabit Ethernet 1000Base-T, 10G Base-T.(IEEE 802.3).

•  Token Ring4/16Mbit/s,TP-PMD/TP/DDI 125Mbit/s, ATM 155Mbit/s.(IEEE802.5).


Standard

IEC/ISO 61156-5; ISOIIEC 11801


Performance Characteristics

Frequency

RL(Min.)

Insertion Loss(Max.)

Propagation Delay (Max.)

Delay Skew(Max.)

NEXT (Min.)

PSNEXT (Min.)

ELNEXT (Min.)

PSELNEXT (Min.)

MHz

dB

dB/100m

ns/100m

ns/100m

dB

dB

dB/100m

dB/100m

4

23

3.7

552

25

78

75

78

75

16

25

7.3

543

25

78

75

71.2

68.2

20

25

8.2

542

25

78

75

69.3

66.3

25

24.3

9.2

541

25

78

75

67.3

64.3

31.25

23.6

10.3

540

25

78

75

65.4

62.4

62.5

21.5

14.6

539

25

75.5

72.5

59.4

56.4

100

20.1

18.5

538

25

72.4

69.4

55.3

52.3

200

18

26.5

537

25

67.9

64.9

49.3

46.3

250

17.3

29.7

536

25

66.4

63.4

47.3

44.3

300

17.3

32.7

536

25

65.2

62.2

45.8

42.8

400

17.3

38

536

25

63.4

60.4

43.3

40.3

500

17.3

42.8

536

25

61.9

58.9

41.3

38.3

600

17.3

47.1

535

25

60.7

57.7

39.7

36.7

Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.


Order Informations

Marking

HELLOSIGNAL NO.7112402 S/FTP CAT7 4PR 23AWG PVC XXX

(or Per customer's request)

Inner Package

305m/Spool,305m/Reel (or Per customer's request)

Outer Package

Color Box, Pallet (or Per customer's request)

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
