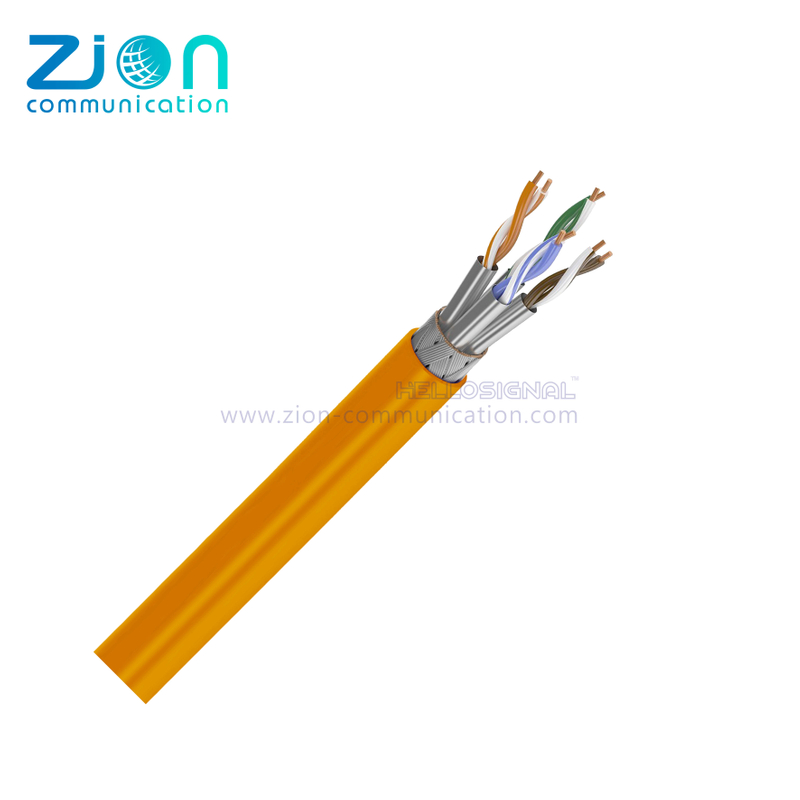

NO.7112436 S/FTP CAT8 LSZH

  • S/FTP CAT8

  • hellosignal

  • 7112436

  • CAT8

  • 100 ohm

  • UL, ETL, CE,CPR, RoHS

  • 100m,305m,500m,500ft,1000ft

  • pull box, wooden spool, carton, pallet

  • 30KM

  • Normally 25 working days

  • NINGBO, SHANGHAI

  • T/T, L/C at sight, D/P at sight

Availability:

Specification

S/FTP CAT 8 LSZH (NO. 7112436)

Construction

Conductor:

0.63±0.005mm Solid Bare Copper

S-FTP CAT 8 LSZH 1

Pairs:

4 Pairs

Insulation:

1.40±0.05 mm Foam PE

Insulation Colors:

Blue-White/Blue,Orange-White/Orange

Green-White/Green,Brown-White/Brown

Shielded

AL/PET  Foil,100% Coverage

Cover every pair

Overall Shield

Aluminum Foil

Braiding

TC or Al_Mg, 40% Coverage

Rip Cord:

Cotton or Fibre

Out Jacket:

8.3±0.5 mm  LSZH


Cross Section



S-FTP CAT 8 LSZH 2




COMPLIANCE (Reference Standard and Certificates)

· ISO/IEC 11801-1 Ed.1.0

· ANSI/TIA-568-C.2 、 ANSI/TIA-568.2-D

· UL444、UL1581、UL1666、IEC60332-1、EN50399



COMPLIANCE




Application Support

· 10GBASE-T  to 40GBASE-T

· 1Volp、ISDN、 Token、 100MTPPDM、 Analogand Datavideo、 POE Type1,2,3,4

·  This fully shielded cable supports 30-meter Class II channels to meet IEEE 802.3bq
25 Gb/s (25GBASE-T) and 40 Gb/s (40GBASE-T) applications in the data center.










Electrical Characteristics

DC Resistance

<2.1Ohms/30m @20℃

DC Resistance unbalance

2% @ 20℃

NVP(传输速率)

74%

Delay Skew

≤ 7.5ns/30m


PHYSICAL PROPERTIES

Pulling Tension(Max)

≥13.5Mpa

Bend Radius(Min)

8×OD of Jacket

Operating Temperature

-30 to 50 ℃ (-22 to 122℉)



Performance Characteristics

Frequency

RL (Min.)

Insertion Loss(Max.)

ACR

PSACR

NEXT (Min.)

PSNEXT (Min.)

ACR-F

PS ACR-F

MHz

dB

dB/100m

dB/100m

dB/100m

dB

dB

dB/100m

dB/100m

1

20/21.6

1.1/0.7

76.9/80.2

73.9/87.4

78/80.9

0.9

78//85.6

75/84.1

4

23.1/31.8

1.1/1.1

76.9/90.2

73.9/95.1

78/91.3

75/96.2

78/92.7

75/90.7

10

25/35.9

1.8/1.6

76.2/98

73.2/94.6

78/99.6

75/96.2

78/97.3

75/95.5

16

25/29.8

2.2/2.1

75.8/98.9

72.8/87.5

0.8

75/89.6

76.5/101

73.5/95.8

20

25/30.6

2.5/2.3

75.5/95.8

72.5/94.2

78/98.1

75/96.5

74.7/95.9

71.6/94.2

31.25

25/30.2

3.2/3.0

74.8/95.2

71.8/94.9

78/98.2

75/97.9

70.7/95.2

67.7/92.5

62.5

23.6/32.5

4.5/4.2

73.5/96.8

70.5/88

0.8

75/92.2

64.7/93.9

61.7/89.8

100

22.2/34.6

5.5/5.1

69.9/94.9

66.9/89.6

75.4/100

72.4/94.7

60.6/92.7

57.6/89.4

200

20.1/30.8

7.9/7.3

63/93.7

60/82.2

70.9/101

67.9/89.5

54.6/91

51.6/85.2

300

18.8/20.4

9.8/9.0

58.4/90.3

55.4/79.7

68.2/99.3

85.2/88.7

51.1/86

48.1/84.3

350

18.4/29.4

10.6/9.8

56.6/87.4

53.6/76.3

67.2/97.2

64.2/86.1

49.7/84.1

46.7/81.6

400

18/26.6

11.4/10.4

55/90.6

52/77.9

66.4/101

63.4/88.3

48.6/85.2

45.6/80.8

550

17/29.5

13.5/12.3

50.8/85

47.8/73.2

64.3/97.3

61.3/85.5

45.8/80.9

42.8/80.4

600

16.8/23.1

14.1/12.9

49.6/86.6

46.6/71.9

63.7/99.5

60.7/84.8

45/82

42/80

800

15.9/26

16.5/14.9

45.3/79

42.4/66.1

61.8/93.9

58.9/81

42.5/78.2

39.5/74.1

900

15.5/28.5

17.6/17.6

43.5/79.7

40.5/61.1

61.1/97.3

58.1/78.7

41.5/77.4

38.5/73.6

1000

15.2/32.7

18.6/16.7

41.8/79.4

38.8/63.2

60.4/96.1

57.4/79.9

40.6/76.5

37.6/72.7

1600

13.8/19.5

24/21.6

33.3/75.9

30.3/52.5

57.3/97.5

54.3/74.1

36.5/69.7

33.5/67.6

2000

13.1/19.4

27.2/24.6

28.7/63.3

25.7/40.3

55.9/87.9

52.9/64.9

34.6/64.2

31.6/63.3

※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.


Order Informations

Marking

HELLOSIGNAL NO.7112436 S/FTP CAT8 4PR 22AWG LSZH ...305M(1000FT)  (or Per customer's request)

Inner Package

305m/Spool,305m/Reel (or Per customer's request)

Outer Package

Color Box, Pallet (or Per customer's request)

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM


Online Service:

Wechat

+86 15088607575

Whatsapp

+86 15088607575

Email

info@zion-communication.com
