Data Cable
HELLOSIGNAL
ZCD119
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
Specifications:
Wire Gauge: 24/32AWG
Conductor: Oxygen-Free Copper
Shielding: Aluminum Foil + Mylar + Braided Net
Cable Diameter/OD: 5.1mm (including net)
Outer Jacket: PVC + Cotton Net
Chip: E-Marker CPS8821
Connector: Nickel-Plated
Current: 5A (Max)
Data Transfer Speed: 40Gbps
Power: 240W (Max)
Resolution: 8K/60Hz (single screen), 4K/60Hz (dual screen)
Color: Deep Space Gray
Packaging: Boxed
Description:

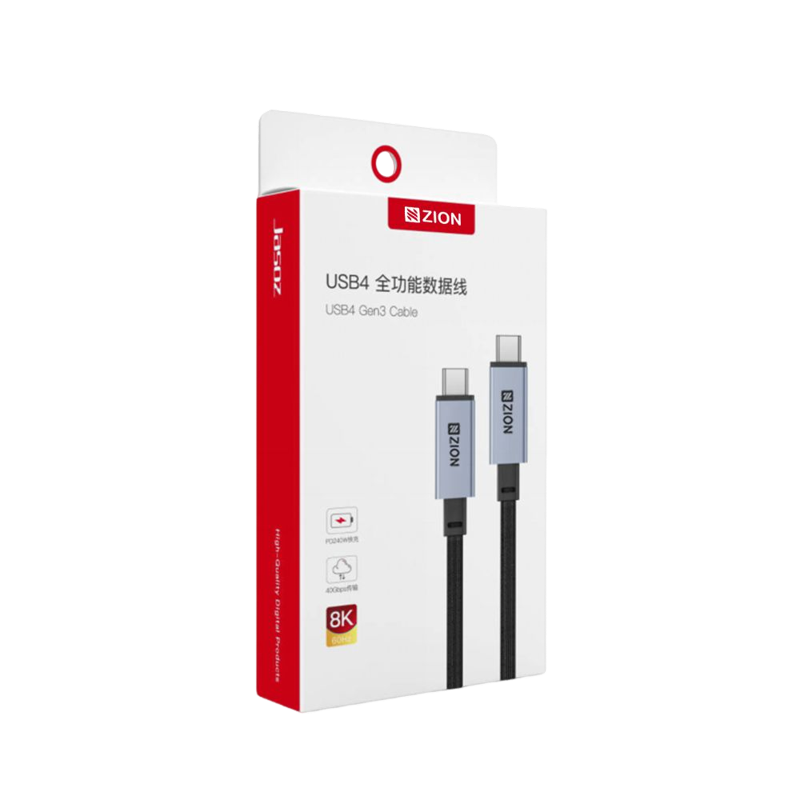

USB4 Full-function data cable with oxygen-free copper core and E-Marker CPS8821 chip for improved performance
Aluminum alloy housing with sandblasted anodized finish for a premium feel
Supports charging, data transfer, and video connection
Capable of 8K/60Hz single screen or 4K/60Hz dual screen output, 40Gbps speed, and 240W PD power
Backward compatible with USB 3.1/3.2 and Thunderbolt 3
Lengths & SKUs:
0.5m: ZC-D119-0.5M
1m: ZC-D119-1M
1.2m: ZC-D119-1.2M
1.5m: ZC-D119-1.5M
2m: ZC-D119-2M
